Procedure
1. Locate the SD card connector on the internal dual SD module. Orient the SD card
appropriately and insert the contact-pin end of the card into the slot.
Note: The slot is keyed to ensure correct insertion of the card.
2. Press the card into the card slot to lock it into place.

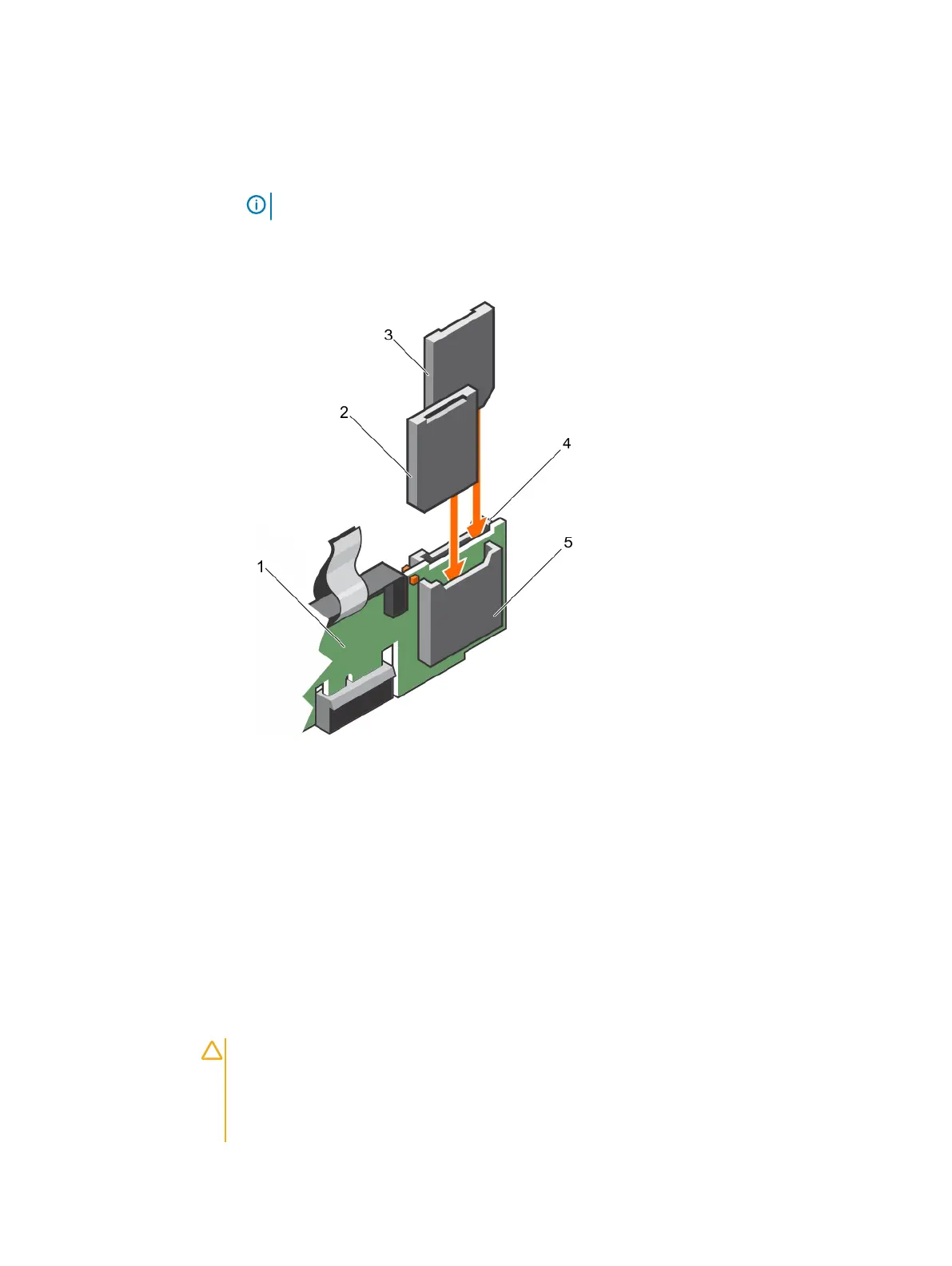

Figure 59 Installing an internal SD card
a. IDSDM
b. SD card 2
c. SD card 1
d. SD card slot 1
e. SD card slot 2
After you finish
Follow the procedure listed in the After working inside your system section.
Removing the optional internal dual SD module
Before you begin
CAUTION
Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
1. Follow the safety guidelines listed in the Safety instructions section.
Installing and removing system components
Dell PowerEdge R430 Owner's Manual 139
