directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
1. Follow the safety guidelines listed in Safety instructions section.
2. Follow the procedure listed in the Before working inside your system section.
Procedure
1. Holding the touch points, lift the expansion card riser from the riser connector on the
system board.

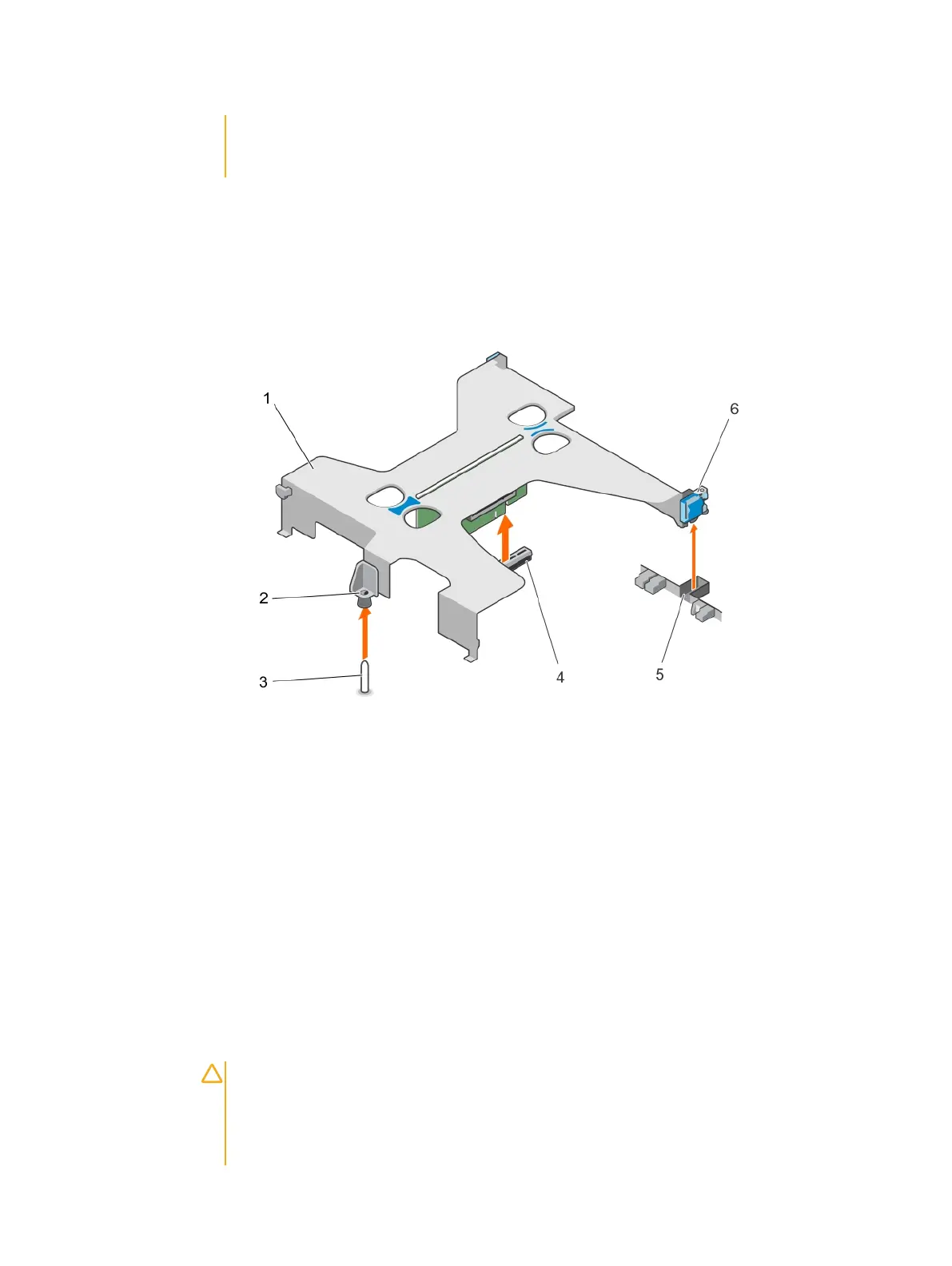

Figure 50 Removing and installing the expansion card riser
a. expansion card riser
b. guide on the expansion card riser
c. guide pin on the system board
d. riser connector on the system board
e. slot on the chassis
f. expansion card latch
After you finish
1. Install the expansion card riser.
2. Follow the procedure listed in the After working inside your system section.
Installing the expansion card riser
Before you begin
CAUTION
Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
1. Follow the safety guidelines listed in the Safety instructions section.
Installing and removing system components
Dell PowerEdge R430 Owner's Manual 129
