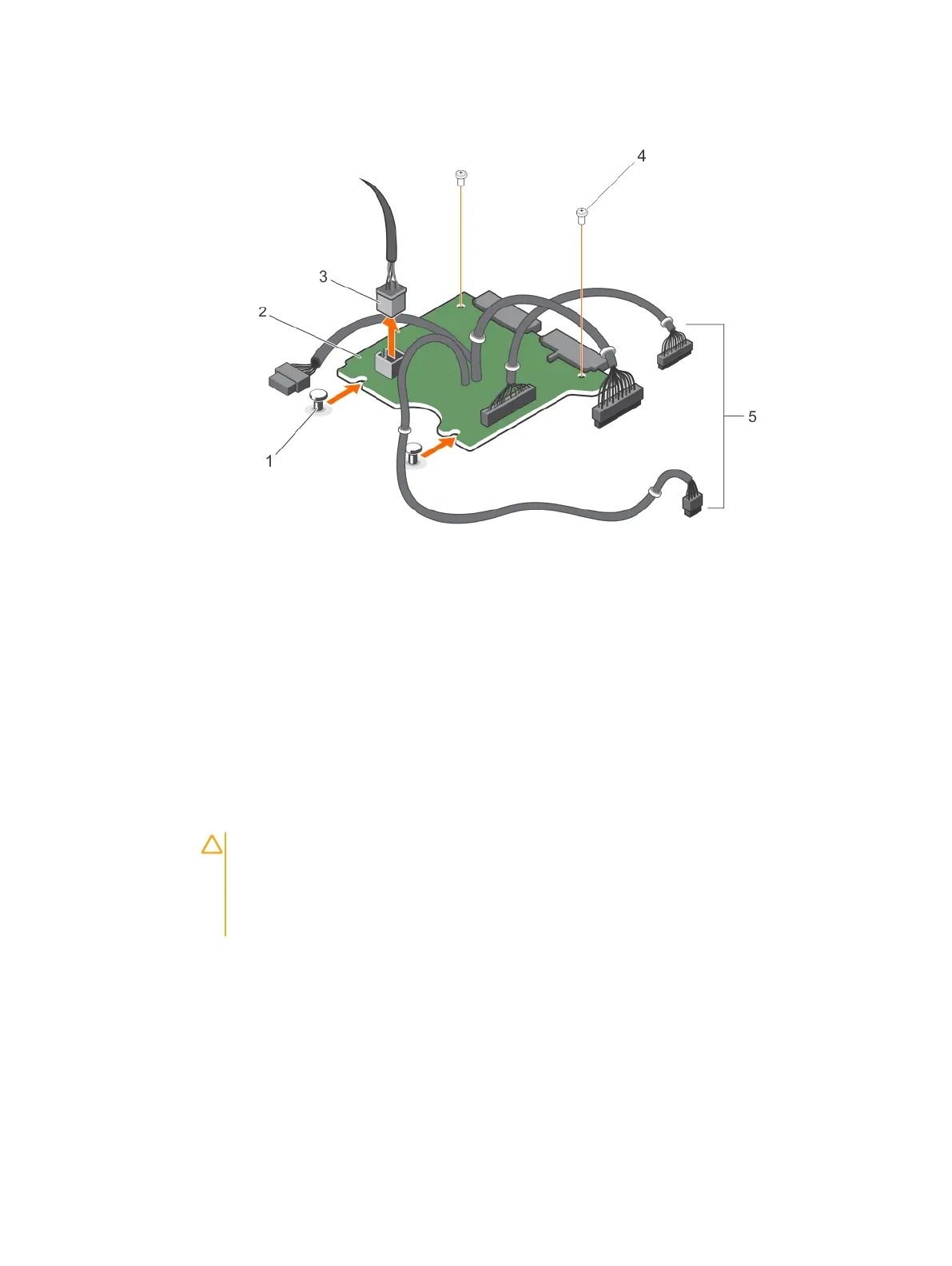

Figure 99 Removing the power interposer board
a. standoffs (2)
b. power interposer board
c. fan cable connector
d. screw (2)
e. PSU cables to the system board (3)
After you finish
Follow the procedure listed in After working inside your system section.
Installing the power interposer board
Before you begin
CAUTION
Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
1. Follow the safety guidelines listed in the Safety instructions section.
2. Follow the procedure listed in Before working inside your system section.
3. Keep the Phillips #2 screwdriver ready.
4. Remove the redundant power supply unit.
Procedure
1. Align the power interposer board (PIB) with the standoffs on the chassis.
2. Install the two screws that secure the PIB to the chassis.
3. Connect the power distribution cables to the system board and fan cable connector to PIB.
Installing and removing system components
182 Dell PowerEdge R430 Owner's Manual
