not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
1. Follow the safety guidelines listed in the Safety instructions section.
2. Follow the procedure listed in the Before working inside your system section.
3. Remove the expansion card riser.
Procedure
1. Locate the expansion card connector on the riser.
2. Holding the expansion card by its edges, position the card so that the card connector aligns
with the connector on the expansion card riser.
3. Align the expansion card bracket with the hooks on the chassis.
4. Insert the card connector into the expansion card riser connector until the card is firmly
seated.
Note: Ensure that the expansion card is properly seated along the chassis, so that
expansion card latch can be closed.
5. If required, connect the cables to the expansion card.

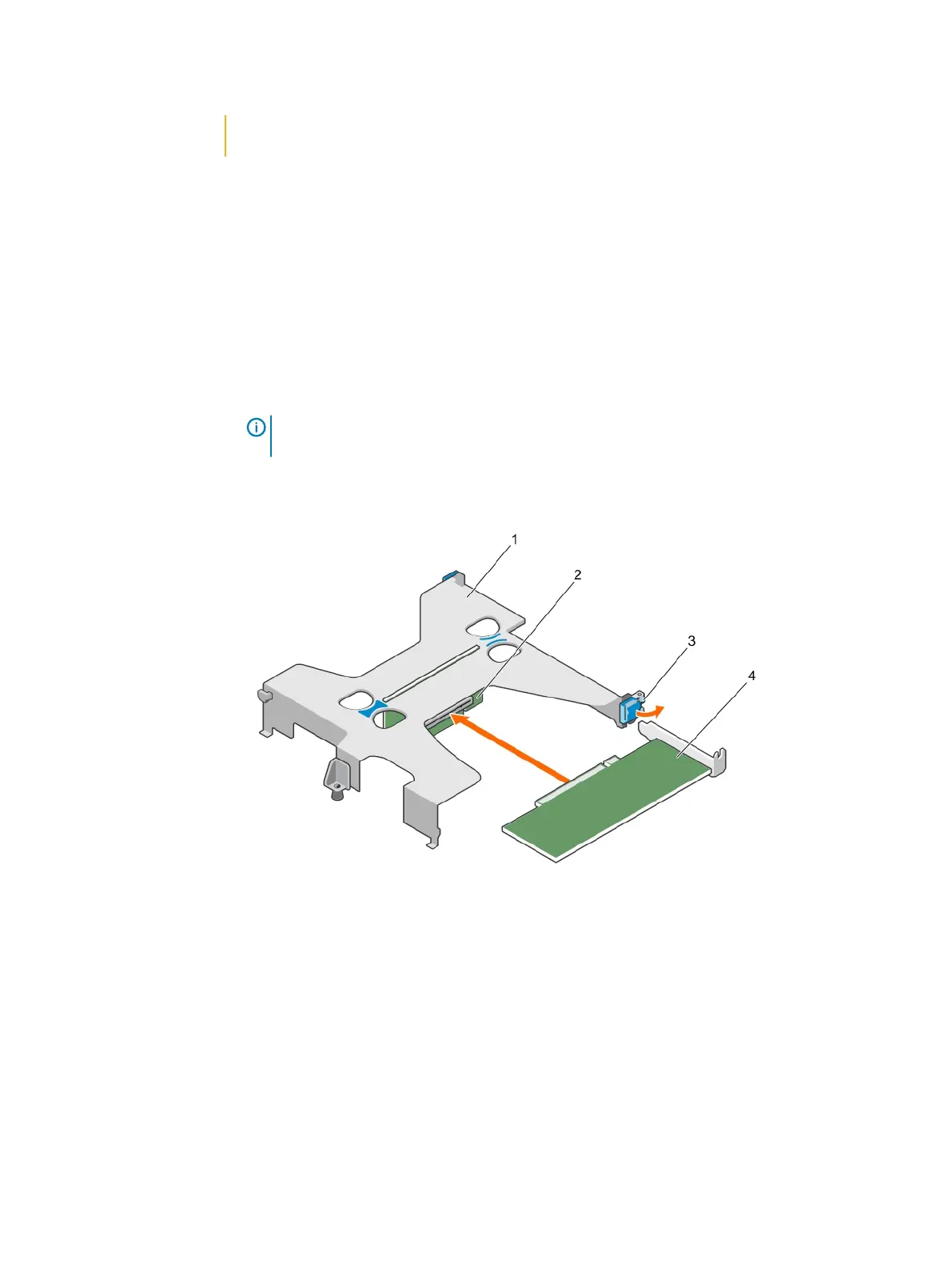

Figure 53 Installing an expansion card into the expansion card riser
a. expansion card riser
b. expansion card riser connector
c. expansion card latch
d. expansion card
After you finish
1. Install the expansion card riser.
2. Follow the procedure listed in the After working inside your system section.
iDRAC port card (optional)
The iDRAC port card consists of a SD vFlash card slot and an iDRAC port. The iDRAC port card is
used for advanced management of the system. An SD vFlash card is a Secure Digital (SD) card
Installing and removing system components
132 Dell PowerEdge R430 Owner's Manual
