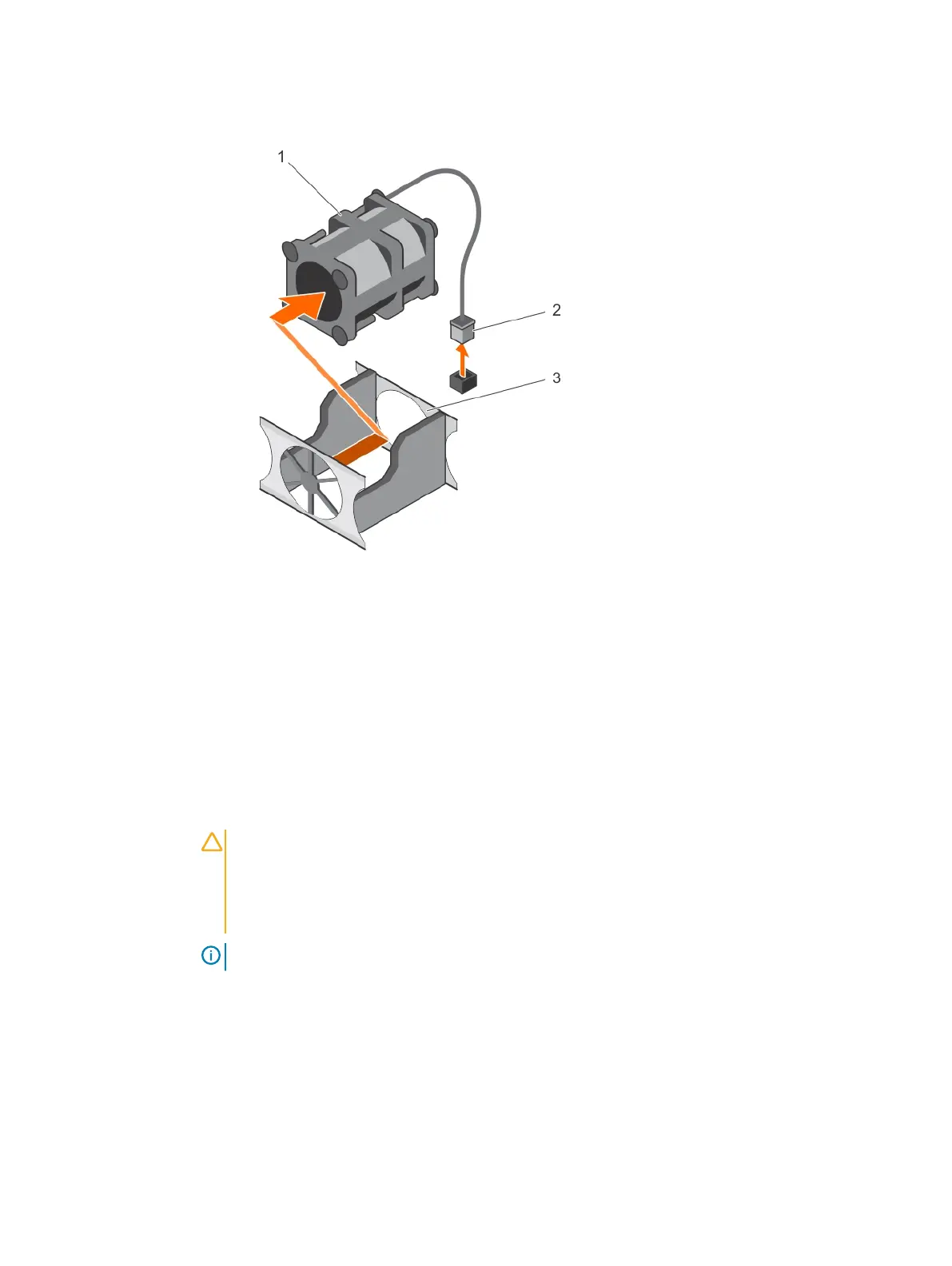

Figure 46 Removing a cooling fan
a. cooling fan
b. power cable connector
c. cooling fan bracket
After you finish
1. Install the cooling fan.
2. Follow the procedure listed in the After working inside your system section.
Installing a cooling fan
Before you begin
CAUTION
Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
Note: The procedure for installing each fan is identical.
1. Follow the safety guidelines listed in the Safety instructions section.
2. Follow the procedure listed in the Before working inside your system section.
3. Remove the cooling shroud.
4. If installed, remove the cooling fan blank.
Procedure
1. Lower the fan into the cooling fan bracket.
2. Connect the power cable to the power cable connector on the system board.
Installing and removing system components
124 Dell PowerEdge R430 Owner's Manual
