Table 11 NIC indicators
Convention Status Condition
A Link and activity indicators are off The NIC is not connected to the
network.
B Link indicator is green The NIC is connected to a valid
network at its maximum port speed
(1 Gbps or 10 Gbps).
C Link indicator is amber The NIC is connected to a valid
network at less than its maximum
port speed.
D Activity indicator is flashing green Network data is being sent or
received.
Internal dual SD module indicator codes
The Internal Dual SD module (IDSDM) provides you with a redundant SD card solution. You can
configure the IDSDM for storage or as the OS boot partition. The IDSDM card offers the following
features:
l
Dual card operation — maintains a mirrored configuration by using SD cards in both the slots
and provides redundancy.
Note:
When the Redundancy option is set to Mirror Mode in the Integrated Devices screen
of System Setup, the information is replicated from one SD card to another.
l
Single card operation — single card operation is supported, but without redundancy.

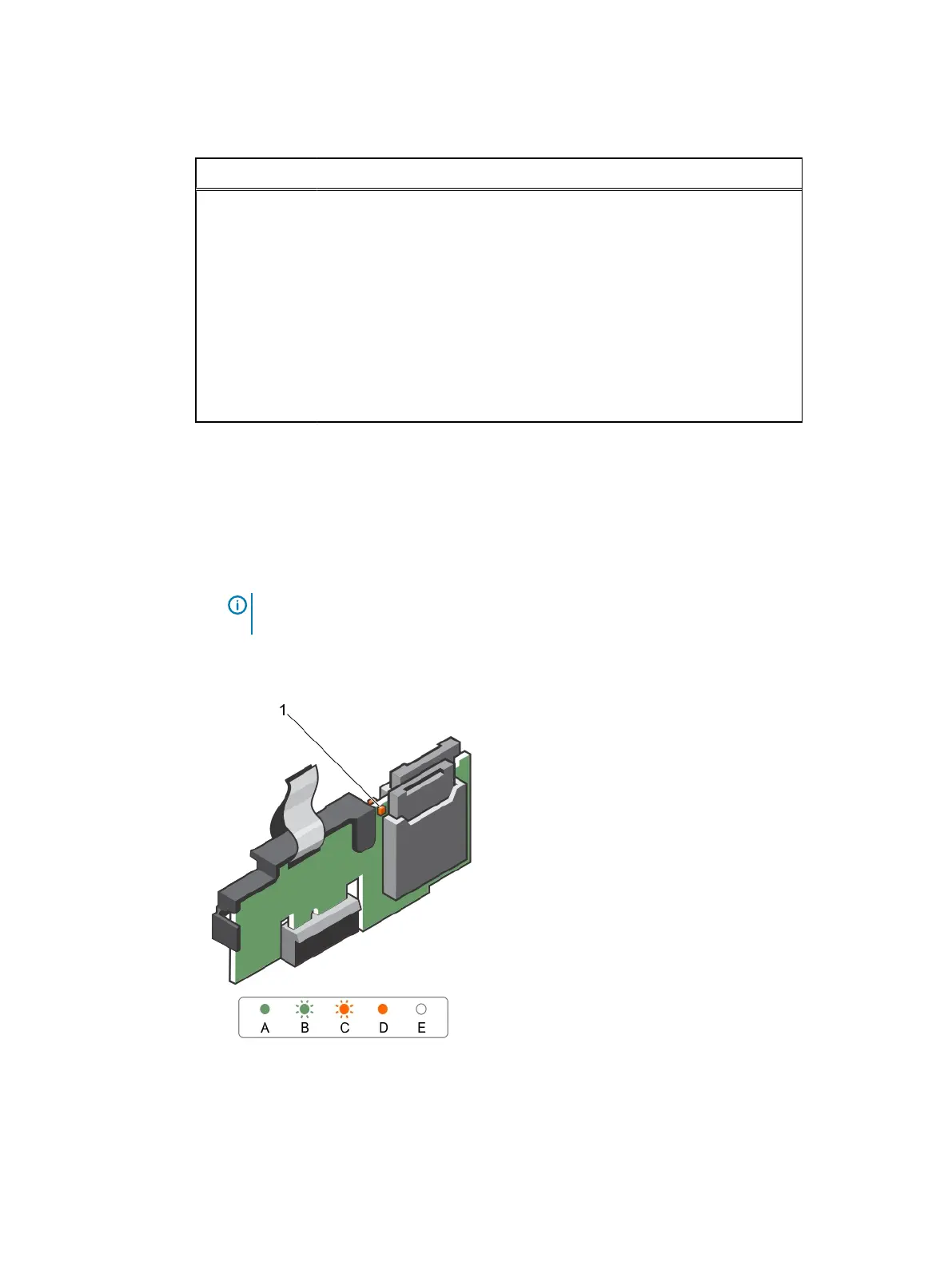

Figure 12
Internal dual SD module (IDSDM)
1. LED status indicator (2)
The following table describes the IDSDM indicator codes:
The IDSDM indicator glows green when the card is online. The IDSDM indicator flashes green to
indicate rebuild or activity. The IDSDM indicator flashes amber to indicate card mismatch or that
Dell PowerEdge R430 system overview
30 Dell PowerEdge R430 Owner's Manual
