Figure 35 Installing a hot swappable hard drive carrier (continued)
c. hard drive carrier handle
After you finish
If removed, install the front bezel.
Removing a 3.5-inch hot swappable hard drive adapter from a 3.5-inch hot
swappable hard drive carrier
Before you begin
CAUTION Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
1. Follow the safety guidelines listed in safety instructions section.
2. Keep the Phillips #2 screwdriver ready.
3. If installed, remove the front bezel.
Procedure
1. Remove the 3.5-inch hot swappable hard drive carrier from the system.
2. Remove the screws from the rails on the hot swappable hard drive carrier.
3. Lift the 3.5-inch hard drive adapter out of the 3.5-inch hot swappable hard drive carrier.

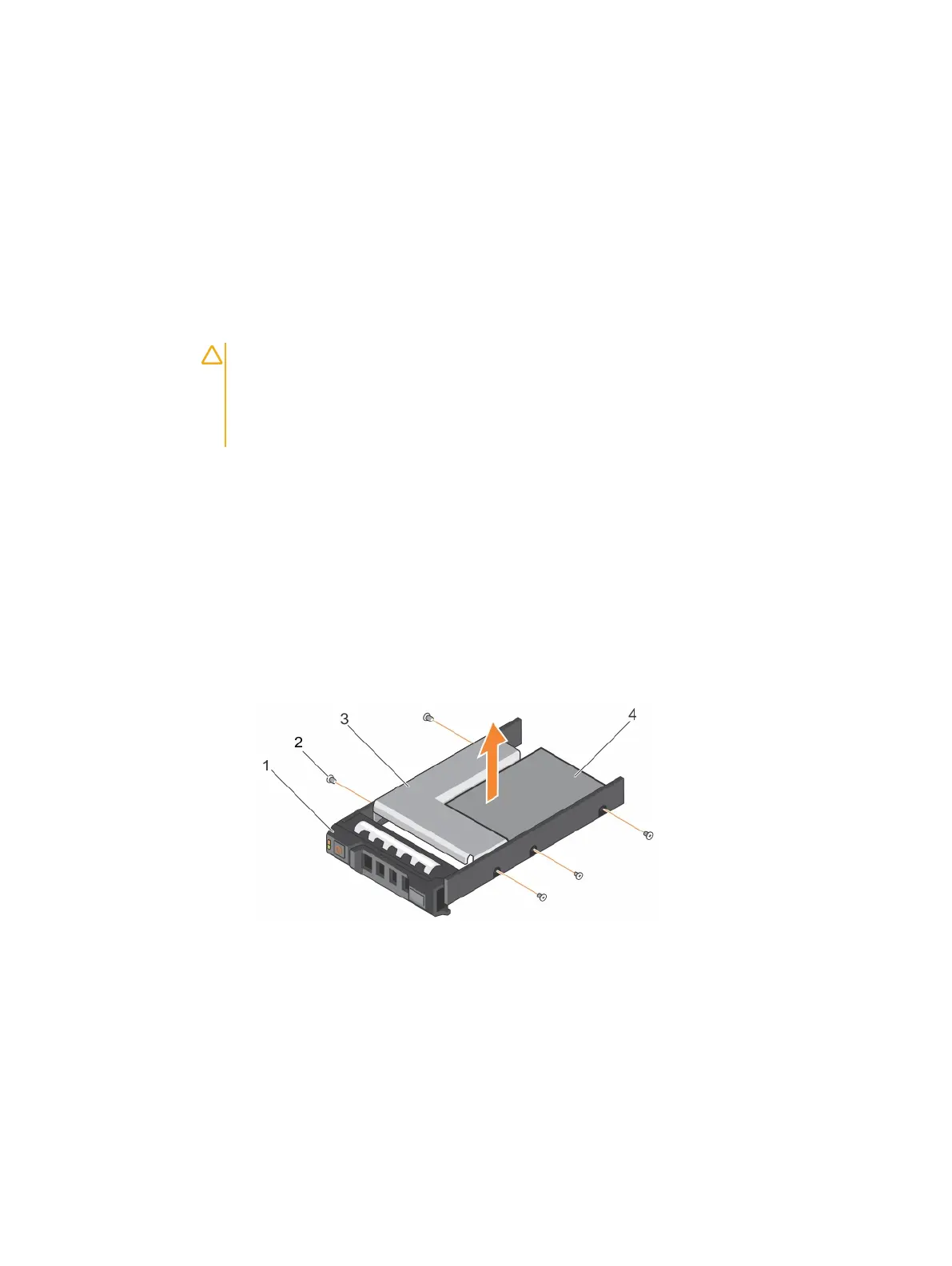

Figure 36
Removing a 3.5-inch hot swappable hard drive adapter from a 3.5-inch hot swappable
hard drive carrier
a. 3.5-inch hard drive carrier
b. screw (5)
c. hard drive adapter
d. 2.5-inch hard drive
After you finish
If removed, install the front bezel.
Installing and removing system components
Dell PowerEdge R430 Owner's Manual 113
