VGA ports. The diagnostic LEDs or the LCD panel is prominently located on the front panel. The
hot swappable hard drives are accessible from the front panel.
Front panel features of a 4 x 3.5-inch hard drive system

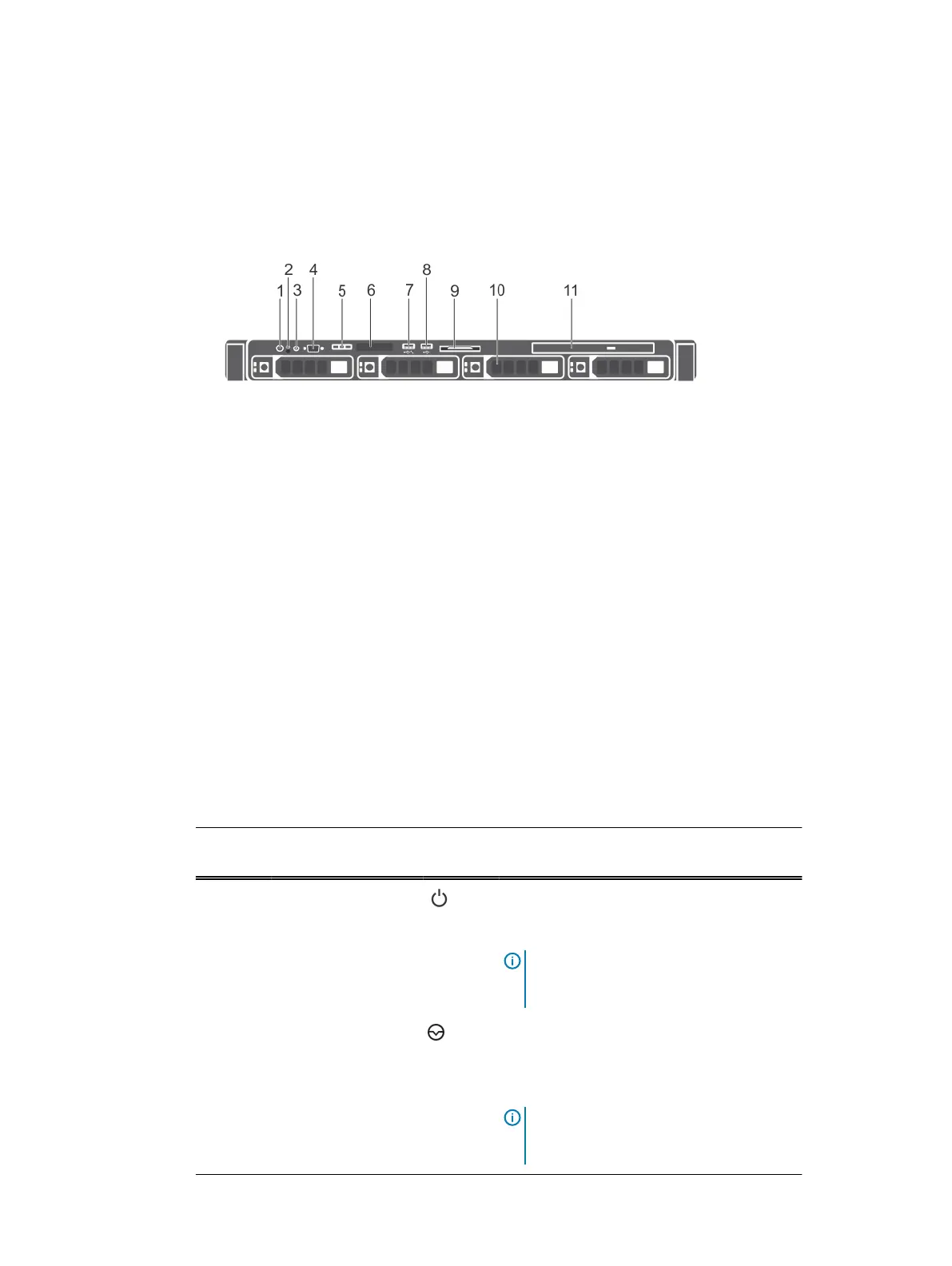

Figure 2 Front panel features of a 4 x 3.5-inch hard drive system
1. Power button
2. NMI button
3. System identification button
4. Video connector
5. LCD menu buttons
6. LCD panel
7. USB management port/iDRAC managed USB port
8. USB port
9. Information tag
10. Hard drives
11. Optical drive (optional)
This table describes about front panel features of a 4 x 3.5-inch hard drive system
Table 1
Front panel features of a 4 x 3.5-inch hard drive system
Item Indicator, Button, or
Connector
Icon Description
1 Power button Press the power button to turn the system on
or off. The indicator on the button indicates if
the system is on or off.
Note: To gracefully shut down an ACPI-
compliant operating system, press the
power button.
2 NMI button Press the NMI button to troubleshoot
software and device driver errors when
running certain operating systems. Use the
end of a paper clip to press the NMI button.
Note: Use the NMI button only if directed
to do so by qualified support personnel or
by the operating system documentation.
