Removing the integrated storage controller card
Before you begin
CAUTION Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
1. Follow the safety guidelines listed in the Safety instructions section.
2. Follow the procedure listed in the Before working inside your system section.
3. Remove the cooling shroud.
4. Keep the Phillips #2 screwdriver ready.
Procedure
1. Loosen the screws that secure the integrated storage controller cable to the integrated
storage controller card connector on the system board.
2. Lift the integrated storage controller cable away from the integrated storage controller.
3. Lift one end of the card and angle it to disengage the card from the integrated storage
controller card holder on the system board.
4. Lift the card out of the system.

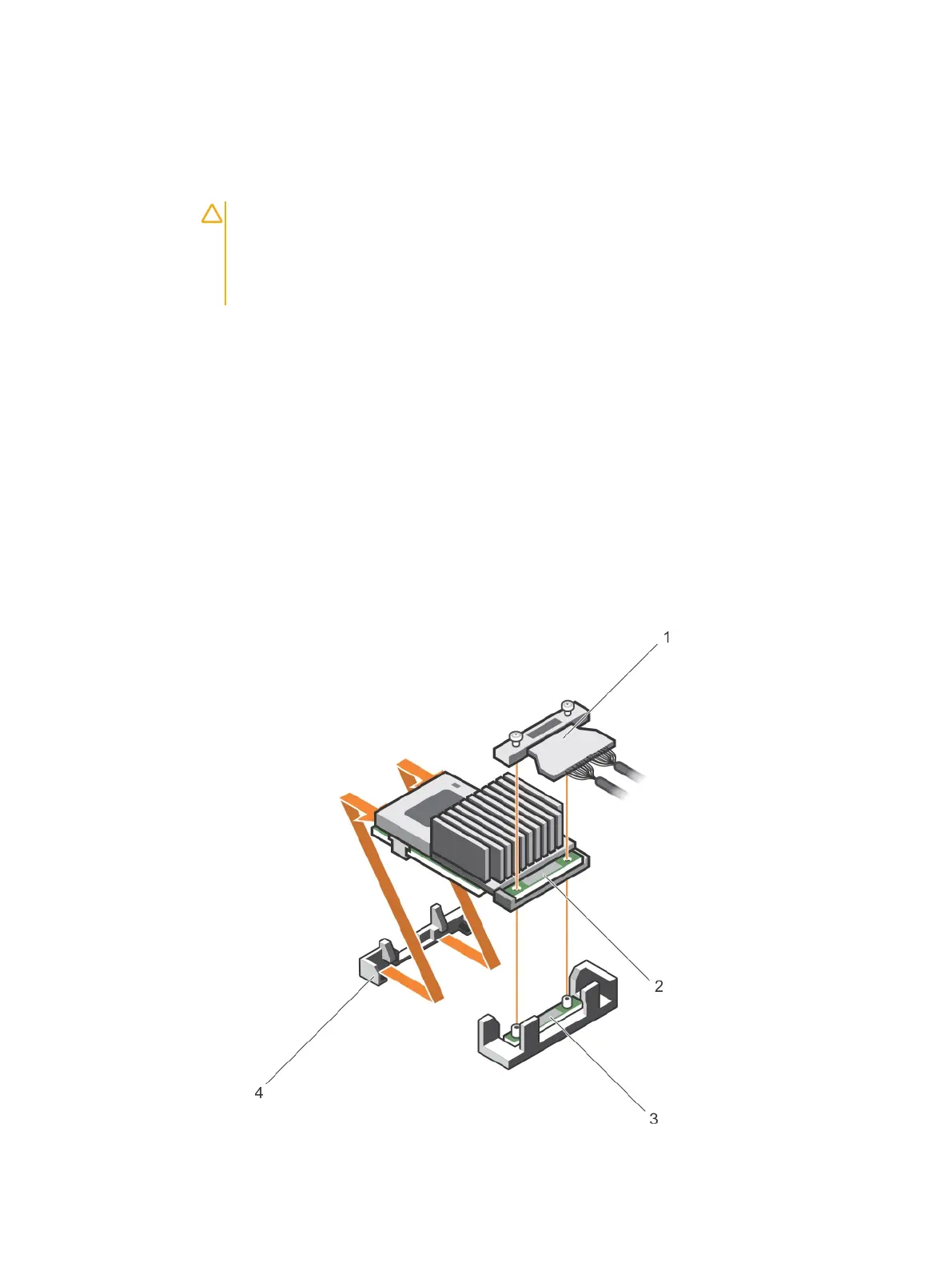

Figure 62
Removing the integrated storage controller card
a. integrated storage controller cable
Installing and removing system components
142 Dell PowerEdge R430 Owner's Manual
