Figure 40 Removing a hard drive into a hard drive carrier (continued)
a. screw (4)
b. hard drive
c. hard drive carrier
Installing a hard drive into a hard drive carrier
Before you begin
CAUTION Many repairs may only be done by a certified service technician. You should only
perform troubleshooting and simple repairs as authorized in your product documentation, or as
directed by the online or telephone service and support team. Damage due to servicing that is
not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
Procedure
1. Insert the hard drive into the hard drive carrier with the connector end of the hard drive
toward the back of the carrier.
2. Align the screw holes on the hard drive with the screws holes on the hard drive carrier.
When aligned correctly, the back of the hard drive is flush with the back of the hard drive
carrier.
3. Attach the screws to secure the hard drive to the hard drive carrier.

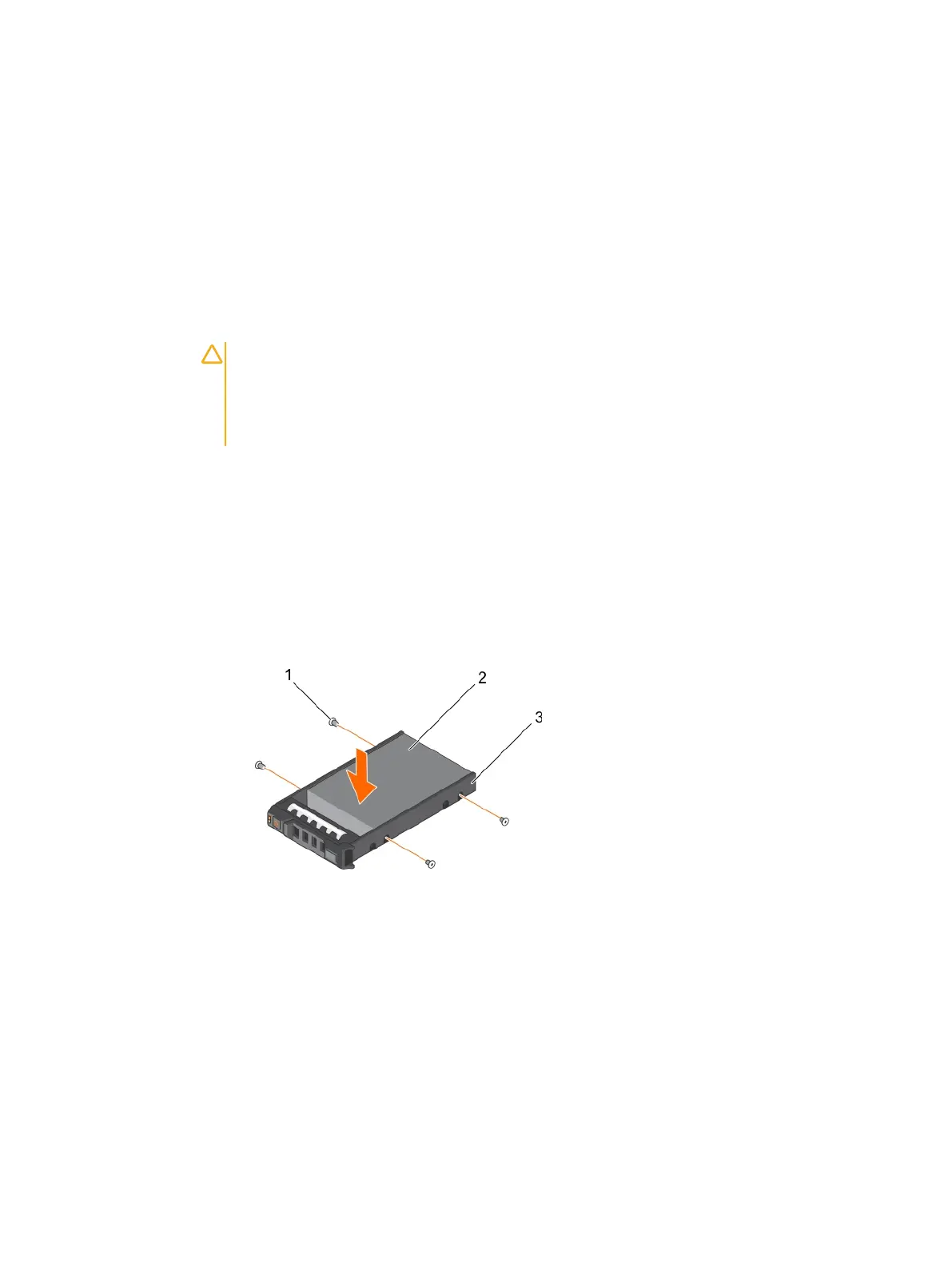

Figure 41
Installing a hard drive into a hard drive carrier
a. screw (4)
b. hard drive
c. hard drive carrier
After you finish
Install the hot swappable hard drive carrier.
Installing and removing system components
Dell PowerEdge R430 Owner's Manual 117
