If you plan to use the mechanical lift directly in front of the cabinet, adjust the lift
arm/tray width to just under 17 inches apart to ensure that the arms will stay under
the chassis. The following figure shows an example of adjusting the lift arm/tray to
just under 17 inches. If using a different lift, configure the lift arms and trays according
to the lift manufacturer's instructions.

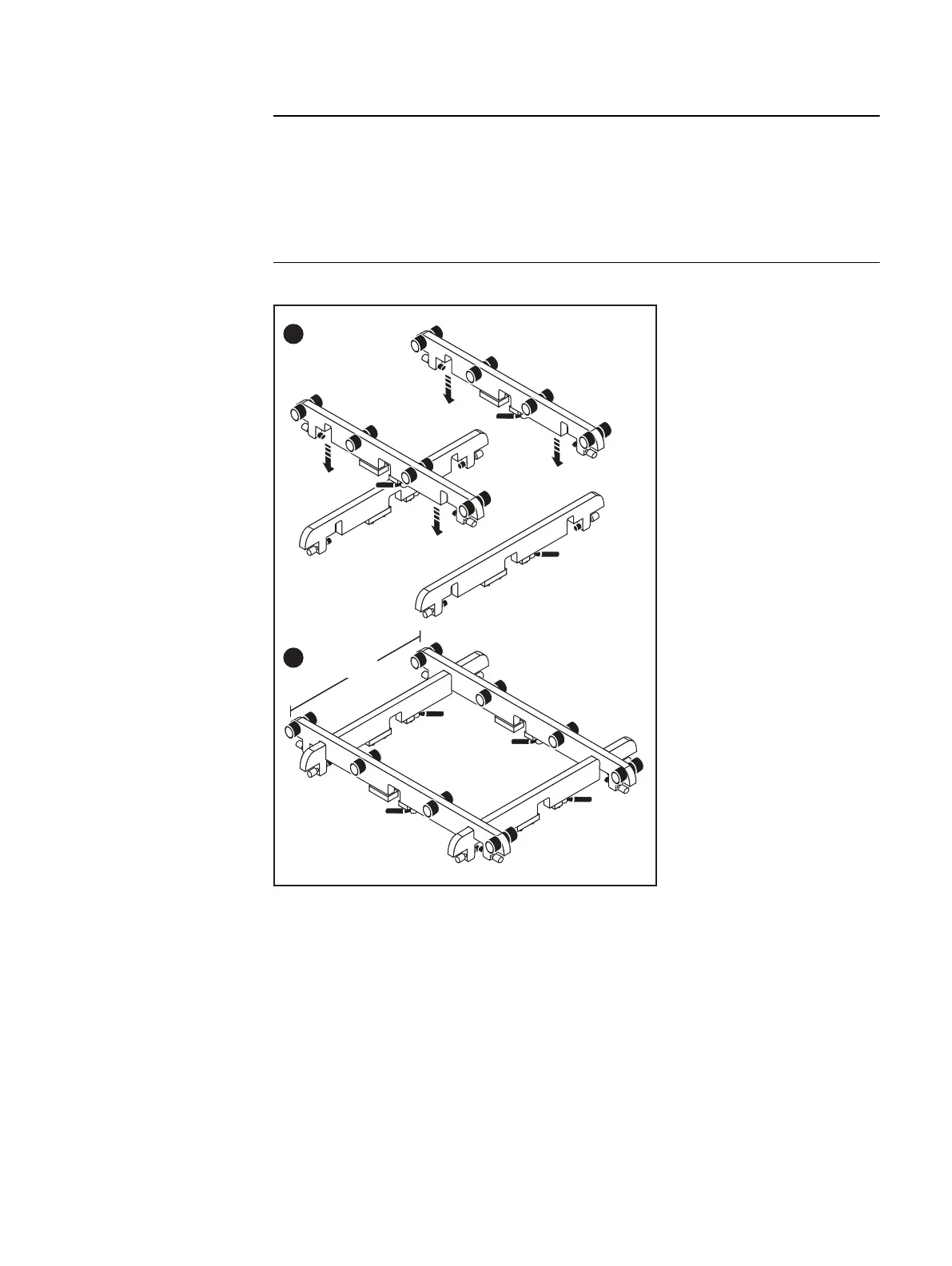

Figure 124 Example of adjusting the lift arm/tray to just under 17-inches
Procedure
1. Assemble and align the mechanical lift.
2. Configure the lift for at least 225 pounds.
If you are using the Alum-A-Lift, make sure to configure the lift for a 400 pound
rating. Since the dual mast configuration to raise objects more than 28U (49
inches) is rated well under 200 pounds, you cannot use this configuration to
raise or lower a shelf more than 49 inches above the floor. Instead for
installations or removals above 49 inches you must use the single (lower) mast
configuration with the conversion kit and a support table, available from the lift
provider. This kit is rated for 225 pounds.
Removing and Replacing FRUs
Removing a shelf from the cabinet 145
