Epson SC-F9200 series Service Manual

SC-F9200 Series Revision C
PRODUCT DESCRIPTION Hardware Specifications 18
SE Group Confidential (Related Staff Only)
1.4.3 Part Names
FRONT SIDE

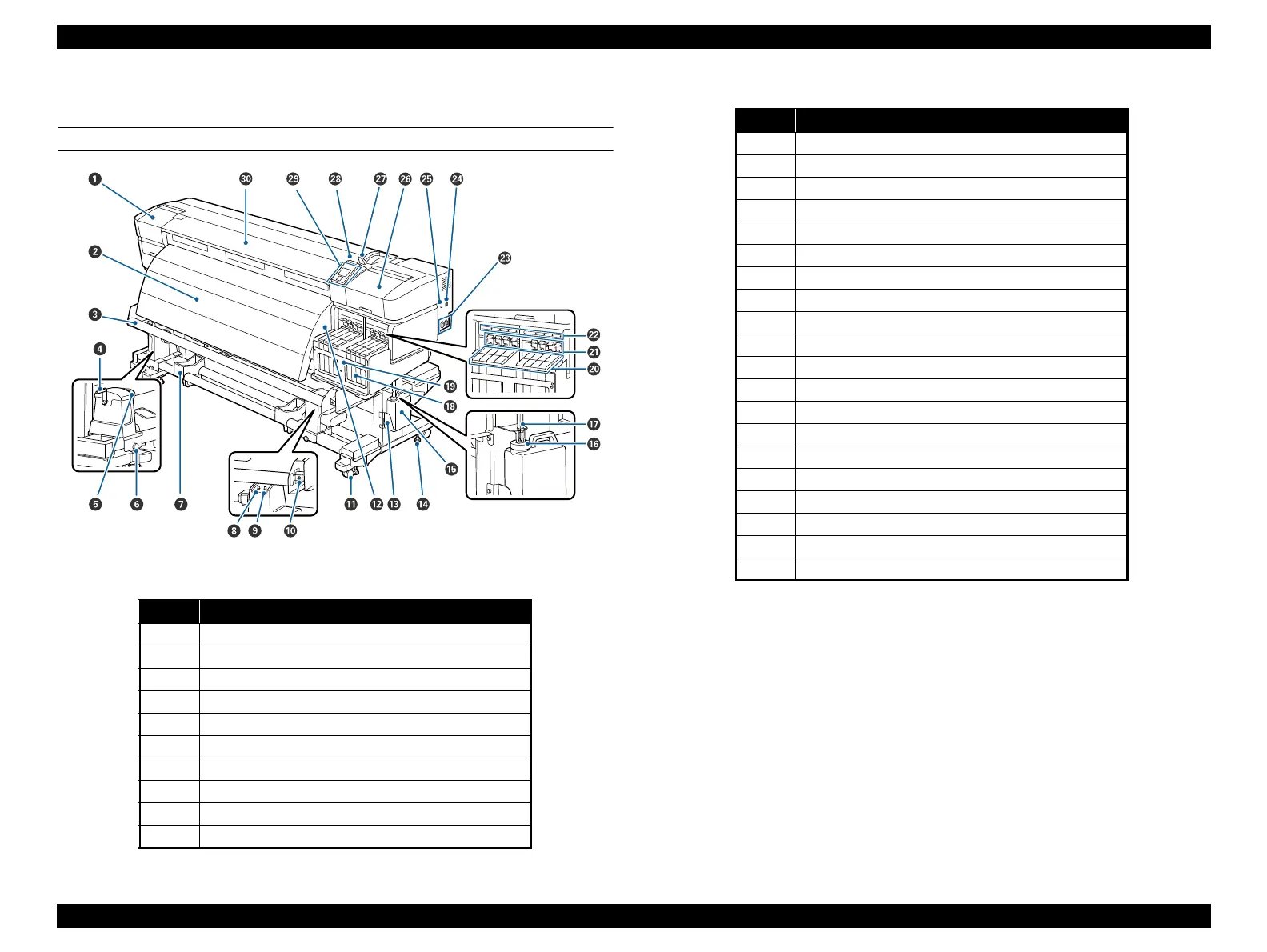

Figure 1-5. FRONT SIDE
Table 1-11. Front Side
No.
Name
1 Maintenance cover (left)
2 After heater
3 Media guide bar
4 Handle
5 Roll core holder
6 Roll core holder locking screw
7 Roll support
8 Auto switch
9 Manual switch
10 Adjustment screw
11 Casters
12 Airflow vents
13 Waste Ink Bottle holder
14 Stand fixing screw
15 Waste Ink Bottle
16 Stopper
17 Waste ink tube
18 Ink tank
19 Heat shield
20 Slider
21 Lock lever
22 Chip unit check lamp
23 AC inlet #1/AC inlet #2
24 LAN port
25 USB port
26 Maintenance cover (right)
27 Media loading lever
28 Alert lamp
29 Control panel
30 Front cover
Table 1-11. Front Side
No.
Name
