Epson SC-F9200 series Service Manual

SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 233
SE Group Confidential (Related Staff Only)
3.4.7 Heater Mechanism
3.4.7.1 After Heater
1. Open the Front Cover.
2. Remove the six screws that secure the After Heater.
A) Silver M3x8 S-tite screw: 6 pcs

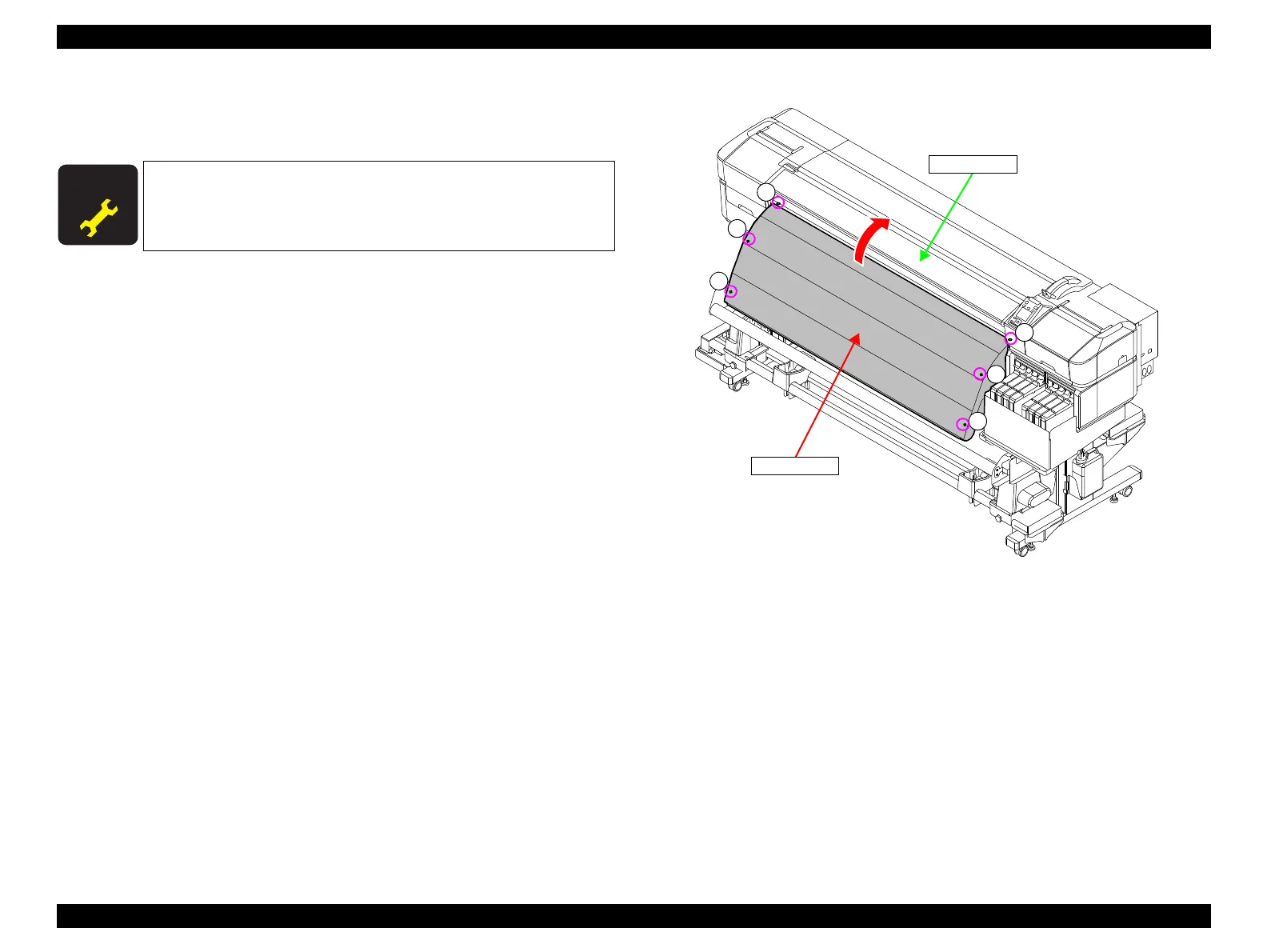

Figure 3-186. After Heater Fixing Screws
A D J U S T M E N T
R E Q U I R E D
When replacing/removing this part, refer to “4.1.2 Adjustment
Items and the Order by Repaired Part” (p260) and make sure to
perform the specified operations including required adjustment.
A
A
A
A
A
A
After Heater
Front Cover
