4.13.2 PF Scale Check
EXECUTION MODE
Normal Mode
PROCEDURE
1. Remove the following part in advance.
Left Cover (P. 114)
2. Turn the printer ON.
3. Start the Service Program and select PF Scale Check.
4. Click [Run] to rotate the PF Scale.
Look at the PF Encoder and the PF Scale from straight above, and visually check
that the scale does not touch the encoder. (Touching the legs of the white holder is
OK.)

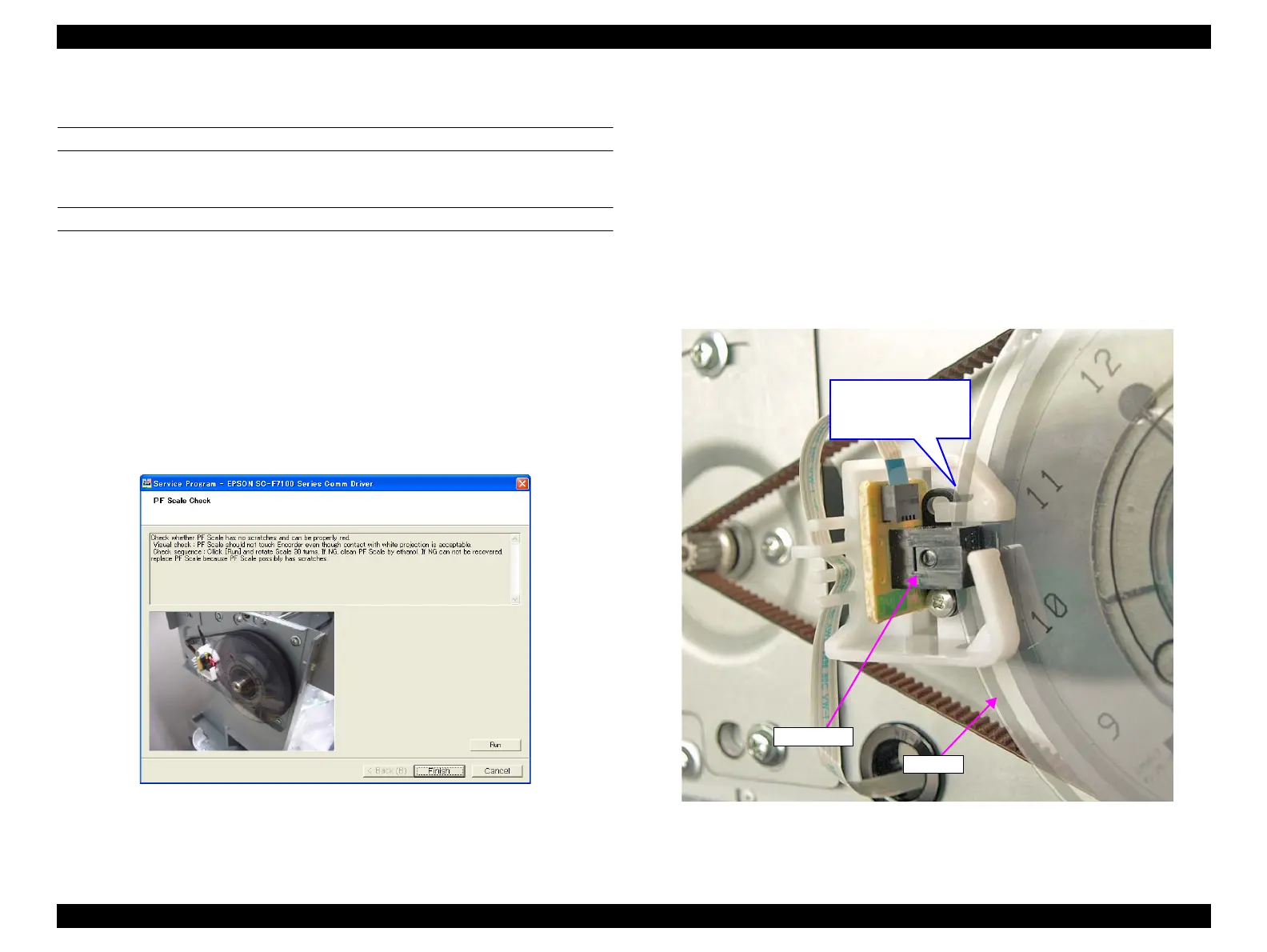

Figure 4-62. [PF Scale Check] Screen
5. When the PF Scale has rotated 30 revolutions, the check result is displayed.
The result is OK: Go to Step 7
The result is NG: Go to Step 6
6. Since the PF Scale may be dirty, clean it with ethanol. After cleaning the PF Scale,
perform Step 4 to run the check again.
If the result is still NG, replace the PF Encoder (P. 215) or the PF Scale (P. 216)
and check again.
7. Click [Finish].
8. Turn the printer OFF to finish the adjustment.
Figure 4-63. PF Scale Check
It is OK if the PF Scale
touches the legs of
white holder.
PF Scale
PF Encoder
