Epson SC-F9200 series Service Manual

SC-F9200 Series Revision C
APPENDIX Connection Diagram 394
SE Group Confidential (Related Staff Only)

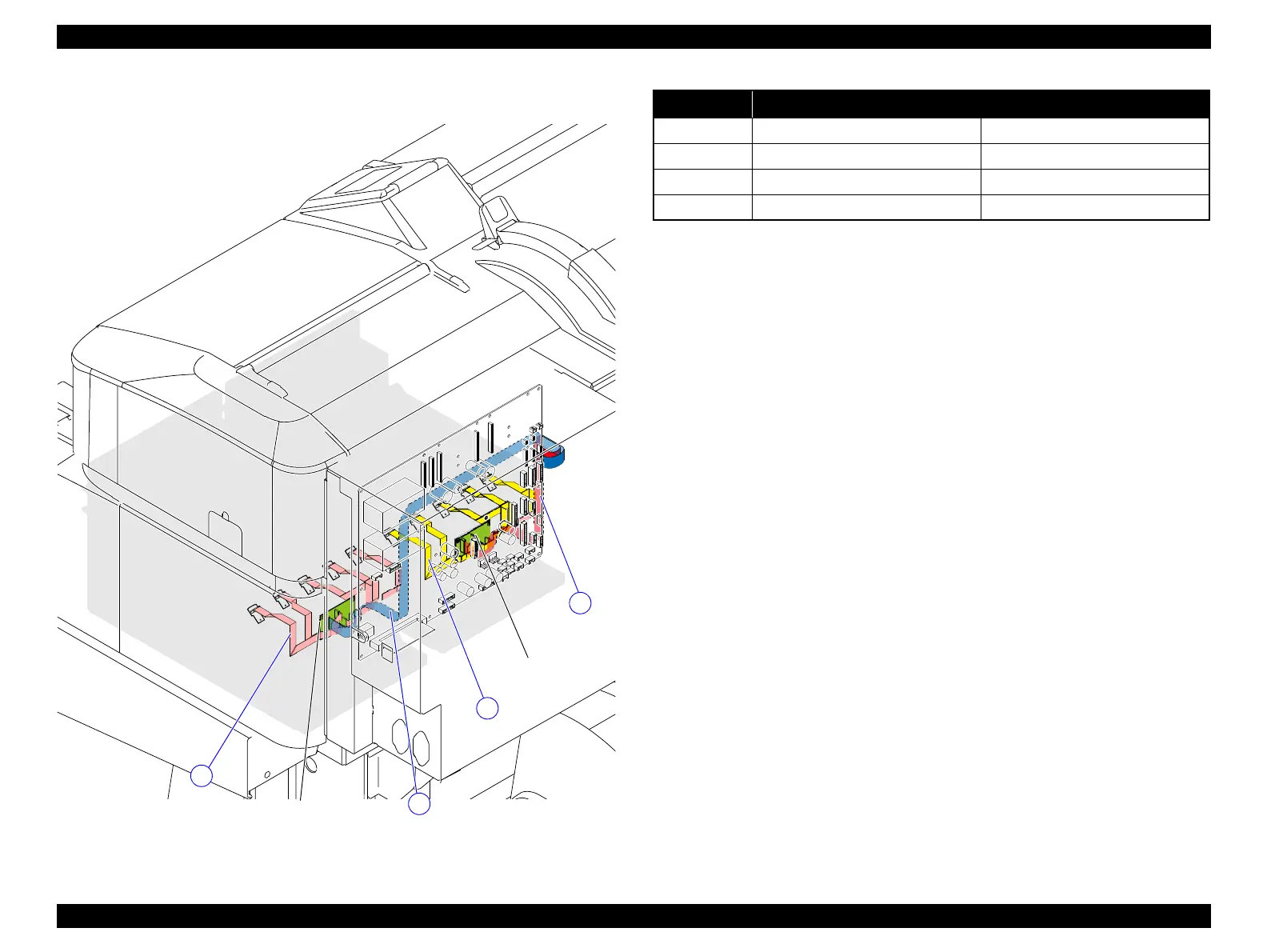

6.2.3 Ink Holder (2)
Main Board
CSIC Contact Module
1
2
3
4
Cable No. Connection
1
CSIC Contact CSIC Contact Module (Holder 1)
2
CSIC Contact Module (Holder 1) Main Board (CN215)
3
CSIC Contact CSIC Contact Module (Holder 2)
4
CSIC Contact Module (Holder 2) Main Board (CN216)
