Epson SC-F9200 series Service Manual

SC-F9200 Series Revision C
ADJUSTMENT CR Related Adjustments 304
SE Group Confidential (Related Staff Only)
4.10.4 CR Scale Check
EXECUTION MODE
Normal Mode
PROCEDURE
1. Turn the printer ON.
2. Start the Service Program and select CR Scale Check.
3. Click [Run].
The CR Unit moves left and right four times, and then the CR Encoder starts to
read the scale.
 The result is OK: Go to Step 5
 The result is NG: Go to Step 4

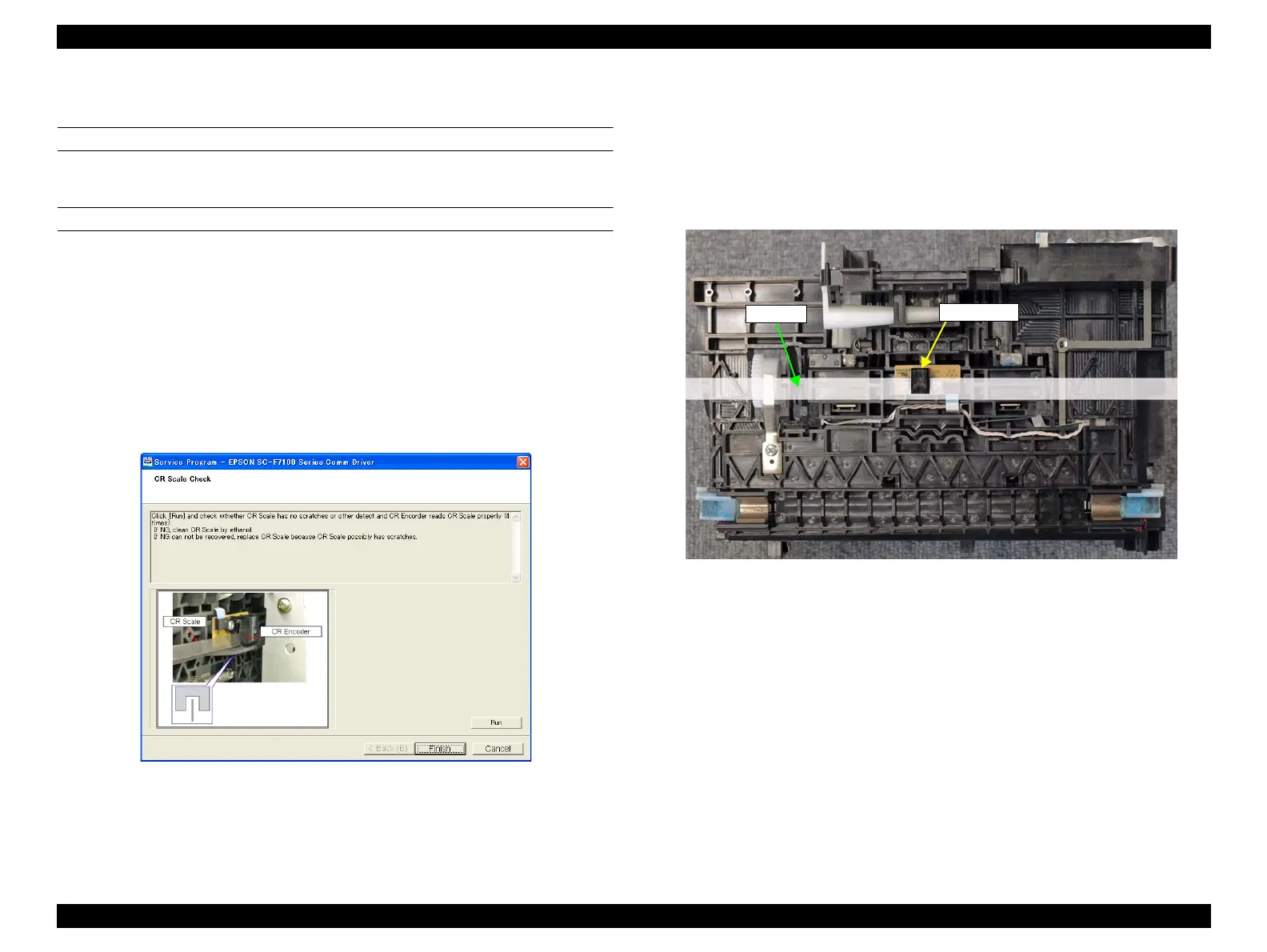

Figure 4-23. [CR Scale Check] Screen
4. Since the CR Scale is not scanned correctly, clean the scale using ethanol. If the
scale still cannot be read properly, replace the CR Encoder (P. 166) or the CR
Scale (P. 157). After replacing the part, return to Step 3 to check again.
5. Click [Finish].
6. Turn the printer OFF to finish the adjustment.
Figure 4-24. CR Encoder and Scale Check
CR Encoder
CR Scale
