1.5 Control Panel
CONTROL PANEL

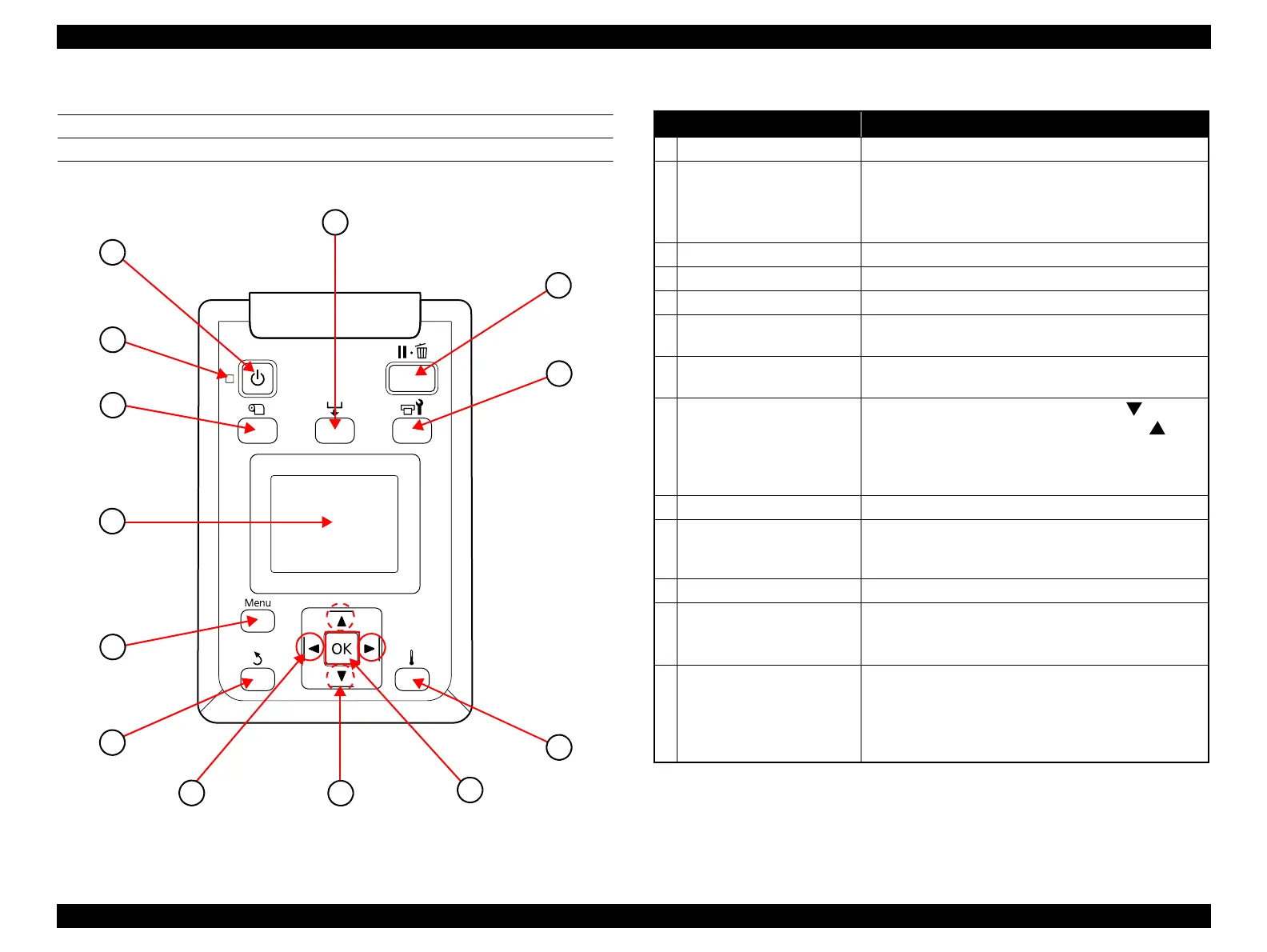

Figure 1-9. Control Panel
7
9
8
6
5
4
3
2
1
13
11
12
10
Table 1-15. Control panel
Name Function
1 Power button Turns the printer ON or OFF.
2 Power light
 ON: The power is ON.
 Flashing: The printer is receiving data, performing head
cleaning, or other operations during shut-down.
 OFF: The power is OFF.
3 Media Setup button Displays the Media Management Menu.
4 Display Displays the printer status, menu, message, etc.
5 Menu button Displays the Setup Menu.
6 Back button
Goes back to the previous tier when Setup Menu is
displayed.
7 Left and Right arrow buttons
Specifies the entering character position when registering
the setting name or setting IP address in the Setup Menu.
8 Media Feed buttons
 Advances/rewinds the media. Hold down button to
advance the media up to 103 cm. Hold down
button to rewind the media up to 25 cm.
 Selects the menu or the set value while the Setup Menu
is displayed.
9 OK button Determines the items or the settings.
10 Heating and Drying button
Sets the temperature of the Heater.
When the additional dryer is installed, configures the
additional dryer settings.
11 Maintenance button Displays the Maintenance Menu.
12 Pause/Cancel button
 During printing, pauses the operation.
 During setting, finishes the menu and goes back to
printable status.
13 Media Feed button
 To advance the printed media to the cut position, press
the button while the printer is printable, then press the
[OK] button.
 During printing, performs the Media Feed Adjust
during printing.
