Epson SC-F9200 series Service Manual

SC-F9200 Series Revision C
ADJUSTMENT CR Related Adjustments 297
SE Group Confidential (Related Staff Only)
4.10 CR Related Adjustments
4.10.1 CR Belt Tension Check
REQUIRED TOOLS
 Sonic tensimeter U-507
 Any tools to flip the belt
STANDARD VALUE
 48 ± 2 N
EXECUTION MODE
Normal Mode
PROCEDURE
1. Remove the following parts in advance.
 Left Cover (P. 114)
2. When any paper is loaded, remove it.
3. Turn the printer ON.
4. Start the Service Program and select CR Belt Tension Check.
5. Click [Run].
The CR Unit moves left and right three times, and then moves to the center.

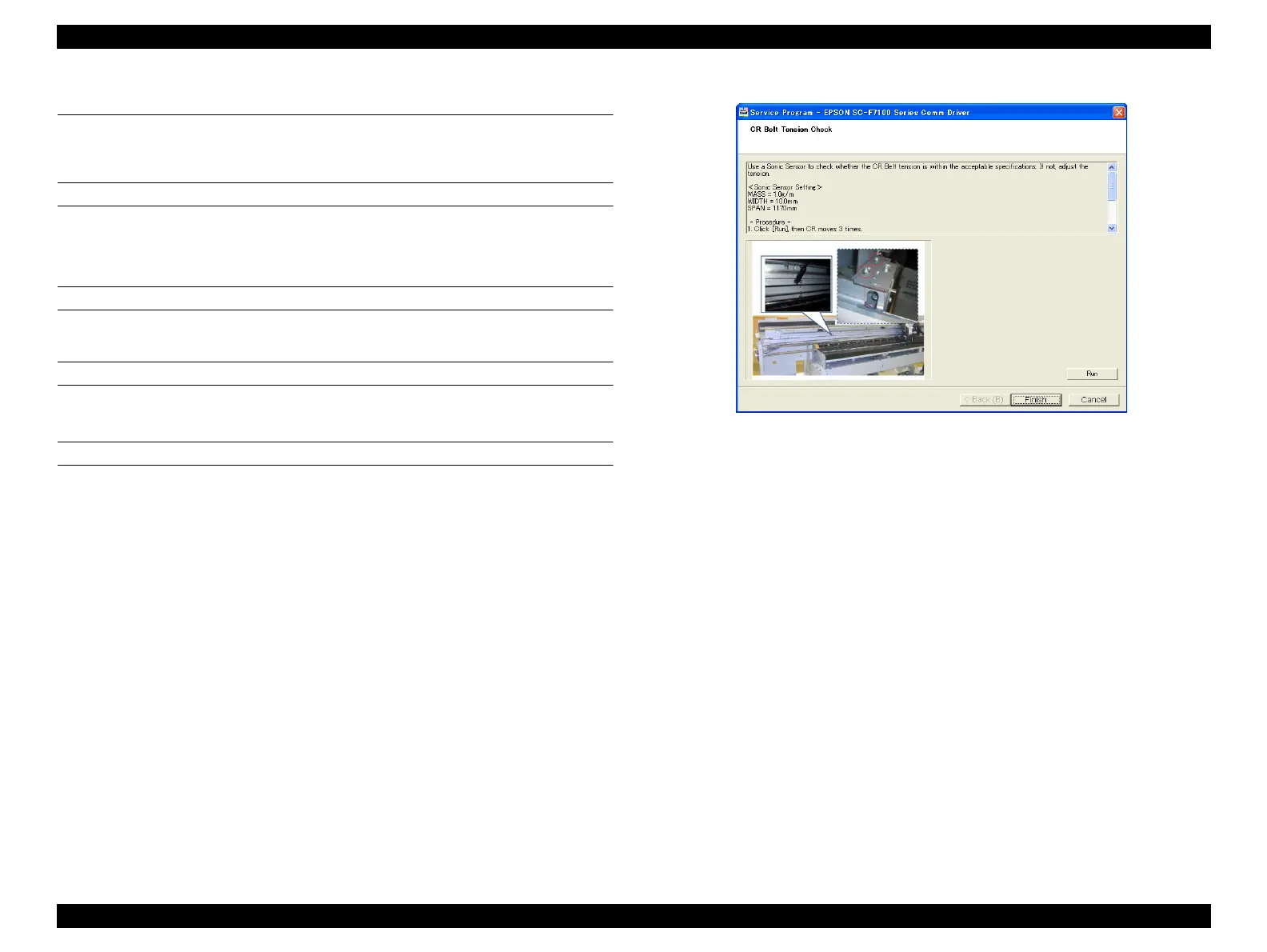

Figure 4-14. [CR Belt Tension Check] Screen
