SC-F9200 Series
Revision C
APPENDIX
Connection Diagram
396
SE Group Confidential (Related St
aff Only)

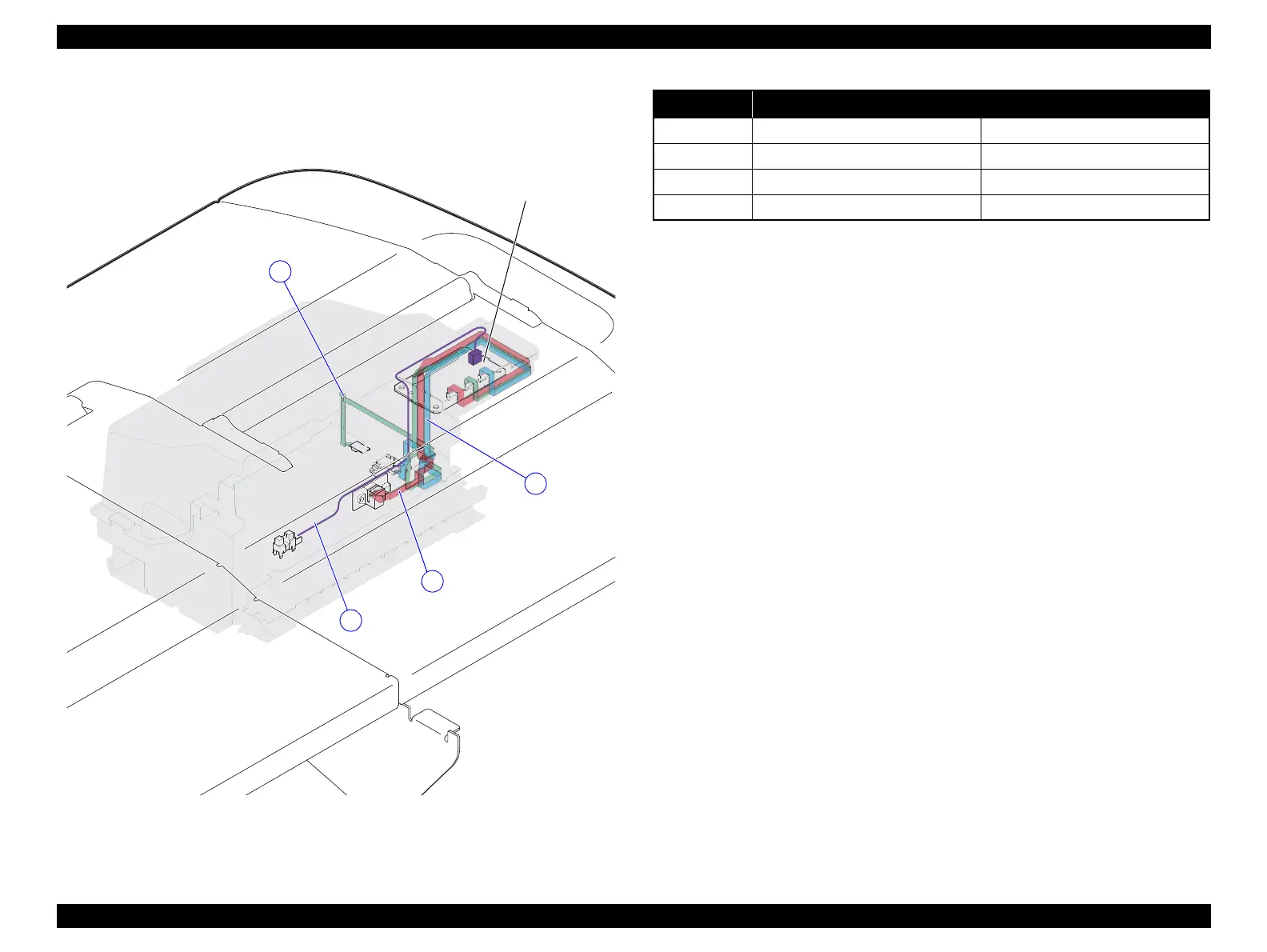

6.2.5 CR Unit (2)
SUB Board
2
1
3
4
Cable No.
Connection
1
PW Sensor
SUB Board (CN103)
2
PG Sensor
SUB Board (CN104)
3
CR Encoder
SUB Board (CN102)
4
IM Sensor
SUB Board (CN101)
395
397
Table of Contents
Chapter 1 PRODUCT DESCRIPTION
4
Table of Contents
8
Product Description
12
Basic Specifications
14
Electric Specifications
14
Ink Specifications
15
Printing Specifications
16
Supported Media
16
Hardware Specifications
17
Dimensions and Weight
17
Installation Room Requirement
17
Part Names
18
Control Panel
21
Setup Menu
24
Serviceman Mode
35
Overview
38
Preliminary Check
38
Troubleshooting Procedure
39
Procedure after Troubleshooting
39
Remedies for Maintenance Requests
40
Remedies for Service Call Error
44
Remedies for Print Quality Troubles
62
Ink Clogging
66
Trouble on Paper Feeding
68
Other Troubles
70
Ink End Error
72
Wrong Ink Mixture Error
72
Trouble on Service Program
74
Trouble on NVRAM Viewer
75
Overview
77
Precautions
77
Cautions after Assembling
79
Orientation Definition
79
Recommended Tools
80
Parts Diagram
81
Reel Motor and Mounting Plate Assy (P
90
Disassembly Flowchart
92
Disassembly and Assembly Procedure
98
Preparation for Servicing
98
Consumables/Accessories
100
Housing
101
Electric Circuit Components
123
Carriage Mechanism/Ink System Mechanism
139
Chapter 4 ADJUSTMENT
140
Paper Feed Mechanism
210
Heater Mechanism
233
Chapter 2 TROUBLE SHOOTING 3.4.8 Roll Unit
236
Reel Unit
244
Additional Drying Fan Unit
252
Overview
259
Precautions
259
Adjustment Items and the Order by Repaired Part
260
Adjustment Items
272
Tools/Consumables for Adjustments
280
Service Program Basic Operations
281
NV-RAM BACKUP / NVRAM Viewer
282
NVRAM Read Procedure
282
NVRAM Viewer Basic Operation
283
ADJUSTMENTS (Individual)
289
ADJUSTMENTS (Sequence)
290
Installing Firmware
291
Image & Test Print
292
Counter Reset
293
References
295
Initial Ink Charge Flag
296
CR Related Adjustments
297
CR Belt Tension Check
297
APG Function Check
301
Ink Mark Sensor Check & Auto Adjustment
303
CR Scale Check
304
CR Active Damper Auto Adjustment
305
PG Adjustment
306
Head Related Checks and Adjustments
308
Tube Inner Pressure Reduction
308
Head ID Input
309
Nozzle Check
311
Cleaning
313
Head Inclination Manual Adjustment (CR Direction)
314
Head Slant Auto Adjustment (PF Direction)
319
Manual Adjustment for Data Shift
321
Manual Uni-D Adjustment for between 2Pcs Heads
323
Manual Uni-D Adjustment
325
Manual Bi-D Adjustment
327
Ink Supply Related Checks and Adjustments
329
Force Charge
329
Switch between Ink Cartridges and Ink Tanks
330
Activation of Cleaning Cartridge
331
Ink or Cleaning Liquid Eject
332
Tube Inner Cleaning
333
Initial Ink Charge
334
Change Flag (Nb <--> HDK)
335
Ink Tank Replacement
337
Media Feed Related Checks and Adjustments
338
PF Belt Tension Check
338
PF Scale Check
340
Manual Adjustment for Media Feeding
341
Boards Related Checks and Adjustments
342
Main Board Initial Setting
342
RTC&USB ID Input
343
MAC Address Input
344
Serial Number Input
345
Board Replacement Date & Time Setting
346
Check Result of Transferring Data from CSIC Chip to Main Board
347
Flag for Extending Life
350
Other Printer Checks and Adjustments
351
USB Port and Network Communication Check
351
Suction Fan Adjustment
352
Heater Function Check
353
Panel Setting Reset & Job History Reset
354
Panel LCD Operation Check
355
Panel Buttons Operation Check
355
Motor Measurement & Automatic Adjustment
356
Rear AD Adjustment
358
After Heater Position Adjustment
360
Chapter 5 MAINTENANCE
365
Overview
366
Setting Up/Storing the Printer
367
Setting up
367
Storing the Printer
367
When Left Unused/Transportation
368
When Left Unused
368
Transportation
370
Exchange Parts
373
Cleaning
375
Preliminary Check
375
How to Clean
375
Lubrication
387
Chapter 6 APPENDIX
389
Block Wiring Diagram
390
Connection Diagram
391
Sensors
391
Ink Holder (1)
393
Ink Holder (2)
394
CR Unit (1)
395
CR Unit (2)
396
CR Drive Mechanism
397
Paper Feed Mechanism/Pump Mechanism
399
Fan
401
After Heater
402
Roll Unit/Reel Unit
403
Additional Print Drying Unit
404
Panel Menu Map
406
Part Names Used in this Manual
409
Exploded Diagram/Parts List
412
