SC-F9200 Series Revision C
ADJUSTMENT Ink Supply Related Checks and Adjustments 330
SE Group Confidential (Related Staff Only)
4.12.2 Switch between Ink Cartridges and Ink Tanks
EXECUTION MODE
Normal Mode
PROCEDURE
1. Turn the printer ON.
2. Take a picture of control panel. If you don’t have camera, see the charge
status(available ink status bar ) and reservation status on the control panel and
write them down.(Refer to Figure 4-52.)

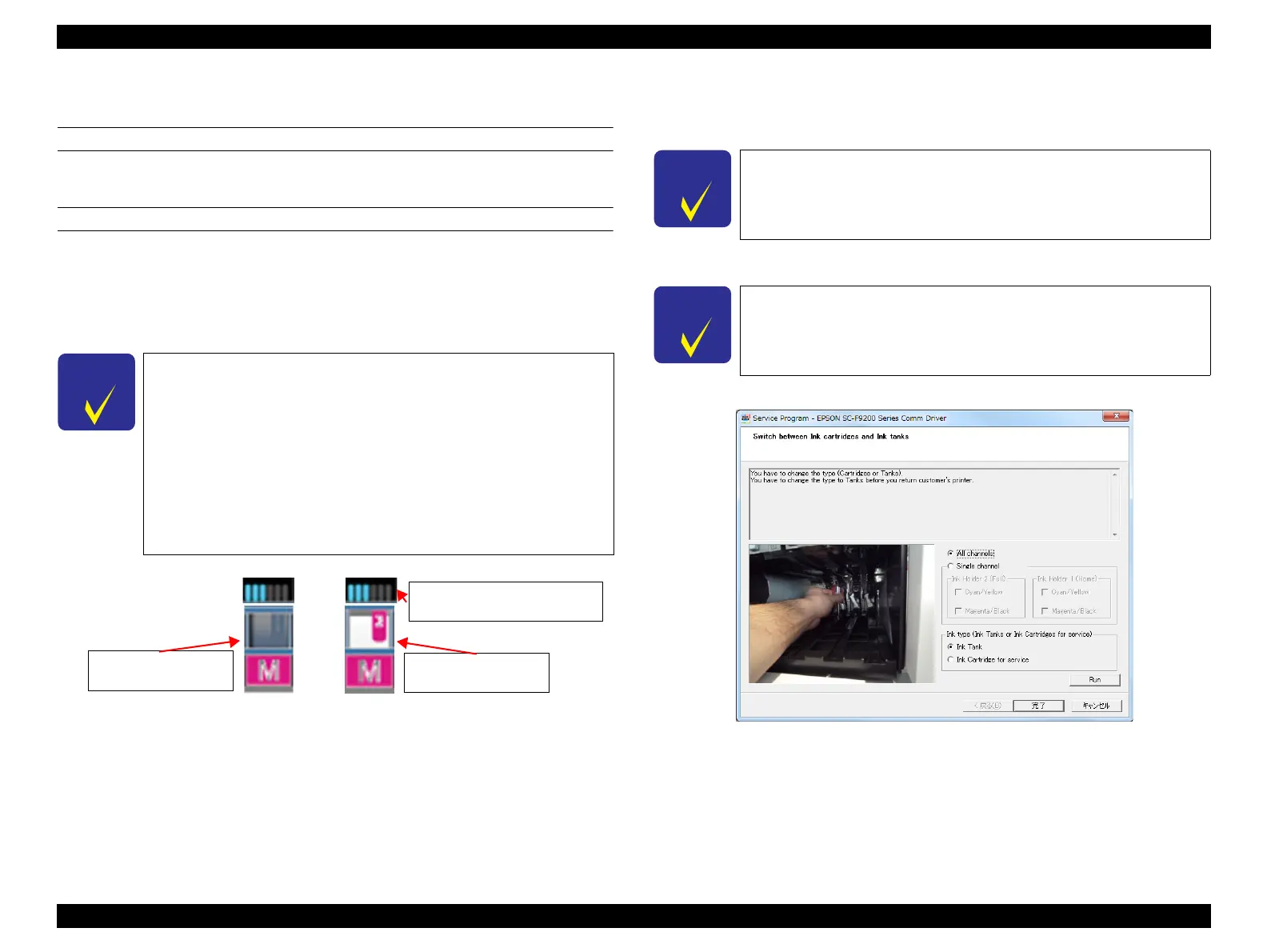

Figure 4-52. How to check the Reservation status
(Left: There is No-Reservation Right: There is Reservation)
3. Start the Service Program and select Switch between Ink cartridges and Ink
tanks.
4. Select from All channels or Single channel. When selecting Single channel, also
select the Ink Holder to be changed (Ink Holder 1 or Ink Holder 2) and the color
to be changed (C/Y or M/Bk).
5. Select the Ink Tank or Ink Cartridge for service.
6. Click [Run].
7. Turn off the printer.
Figure 4-53. [Switch between Ink cartridges and Ink tanks] Screen
If firmware has Charge & Reservation, and when you select the Ink
cartridges for service after performing Step3, Charge &
Reservation will be unavailable temporarily.
When returning to Ink tank, and when you select the Ink tanks
after performing Step3, Charge & Reservation will be available
again. Also, Charge status & Reservation status will return to the
original status. (before-cartridge-installation status.)
Take a picture of control panel or take a memo so that you can
check whether the charge status and reservation status are
returned originally.
Without
Reservation(Gray)
With
Reservation(White)
Charge Status
(available ink status bar )
When switching to Ink tanks from Ink cartridges, Make sure
charge status and reservation status are returned to the original
status by comparing the picture or note which you wrote on Step2.
To make the settings effective, make sure to turn off the printer.
