SC-F9200 Series
Revision C
APPENDIX
Connection Diagram
401
SE Group Confidential (Related St
aff Only)

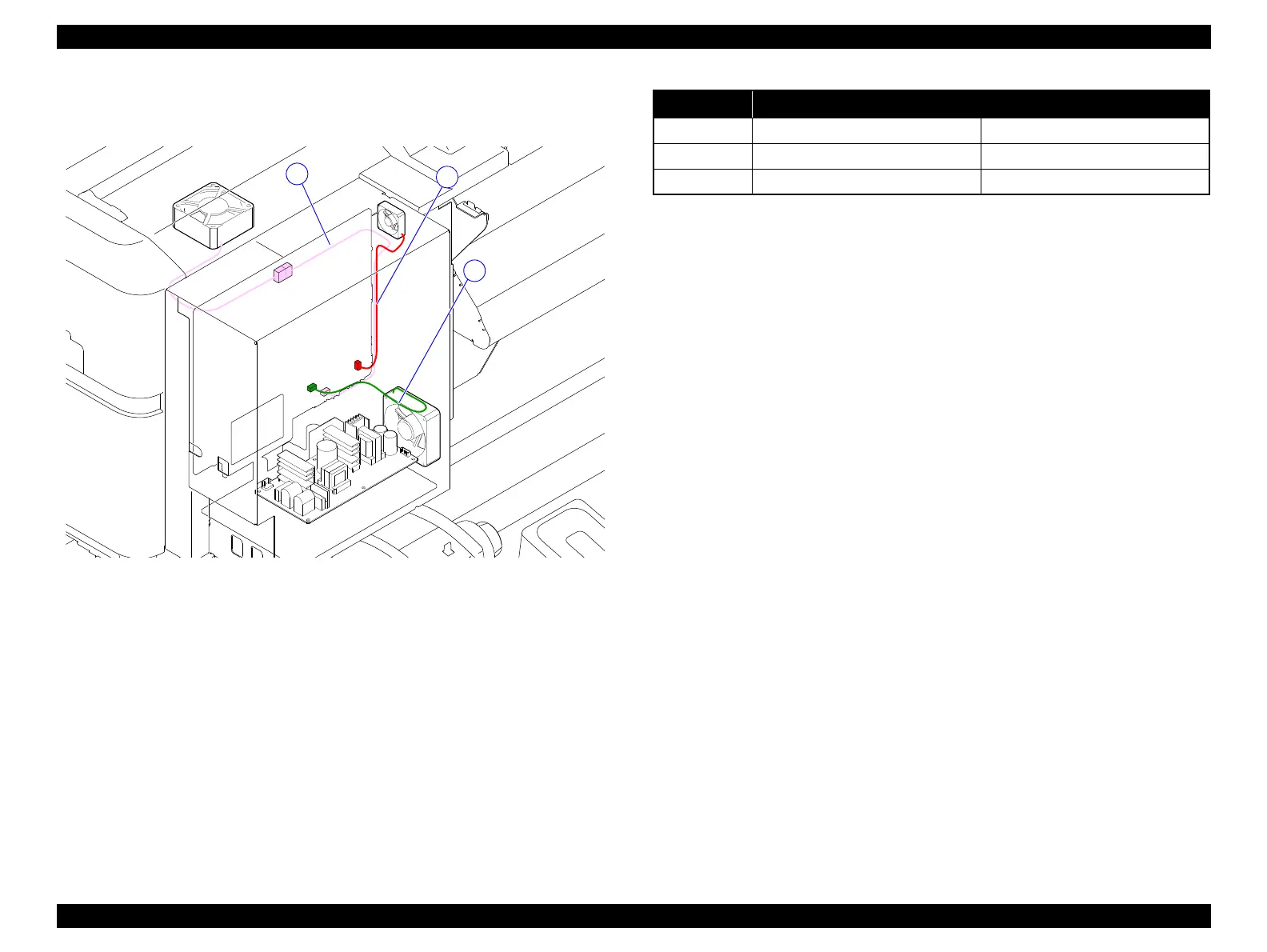

6.2.8 Fan
1
2
3
Cable No.
Connection
1
Power Supply Board Cooling Fan
Main Board (CN40)
2
Box Cooling Fan
Main Board (CN408)
3
CR Motor Cooling Fan
Main Board (CN12)
400
402
