Epson SC-F9200 series Service Manual

SC-F9200 Series Revision C
ADJUSTMENT Head Related Checks and Adjustments 321
SE Group Confidential (Related Staff Only)
4.11.7 Manual Adjustment for Data Shift
PURPOSE
To make the setting not to use the Head 2 nozzles that overlap with the Head 1 nozzles
in the sub-scanning direction.

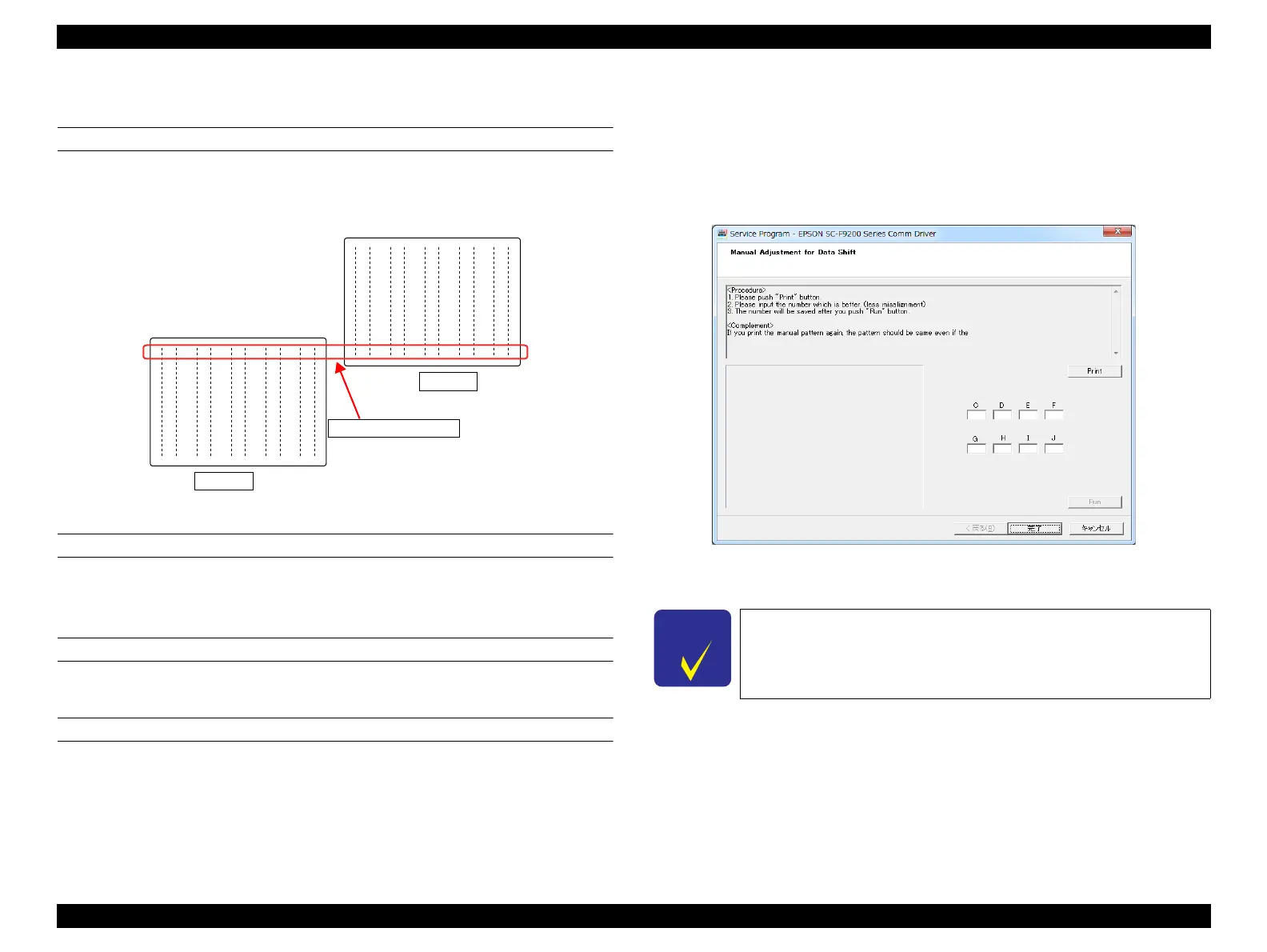

Figure 4-43. Manual Adjustment for Data Shift
PAPER USED
 Size: 24 inch length or longer
 Type: Premium Glossy Photo Paper (250)
EXECUTION MODE
Normal Mode
PROCEDURE
1. Load the paper into the printer.
2. Turn the printer ON.
3. On the control panel, select the Media Setup menu and change the Select Media
setting to RIP Settings “0”.
4. Start the Service Program and select Manual Adjustment for Data Shift.
5. Click [Print].
Adjustment pattern is printed.
Figure 4-44. [Manual Adjustment for Data Shift] Screen
6. Select the pattern with the fewest gap.
7. Click [Run].
Save the parameter in printer.
8. Turn off the printer to finish the adjustment work.
Head 1
Head 2
Overlapping nozzles
C H E C K
P O I N T
Use even numbers only.
