ADJUSTMENT Head Related Checks and Adjustments 326
SE Group Confidential (Related Staff Only)

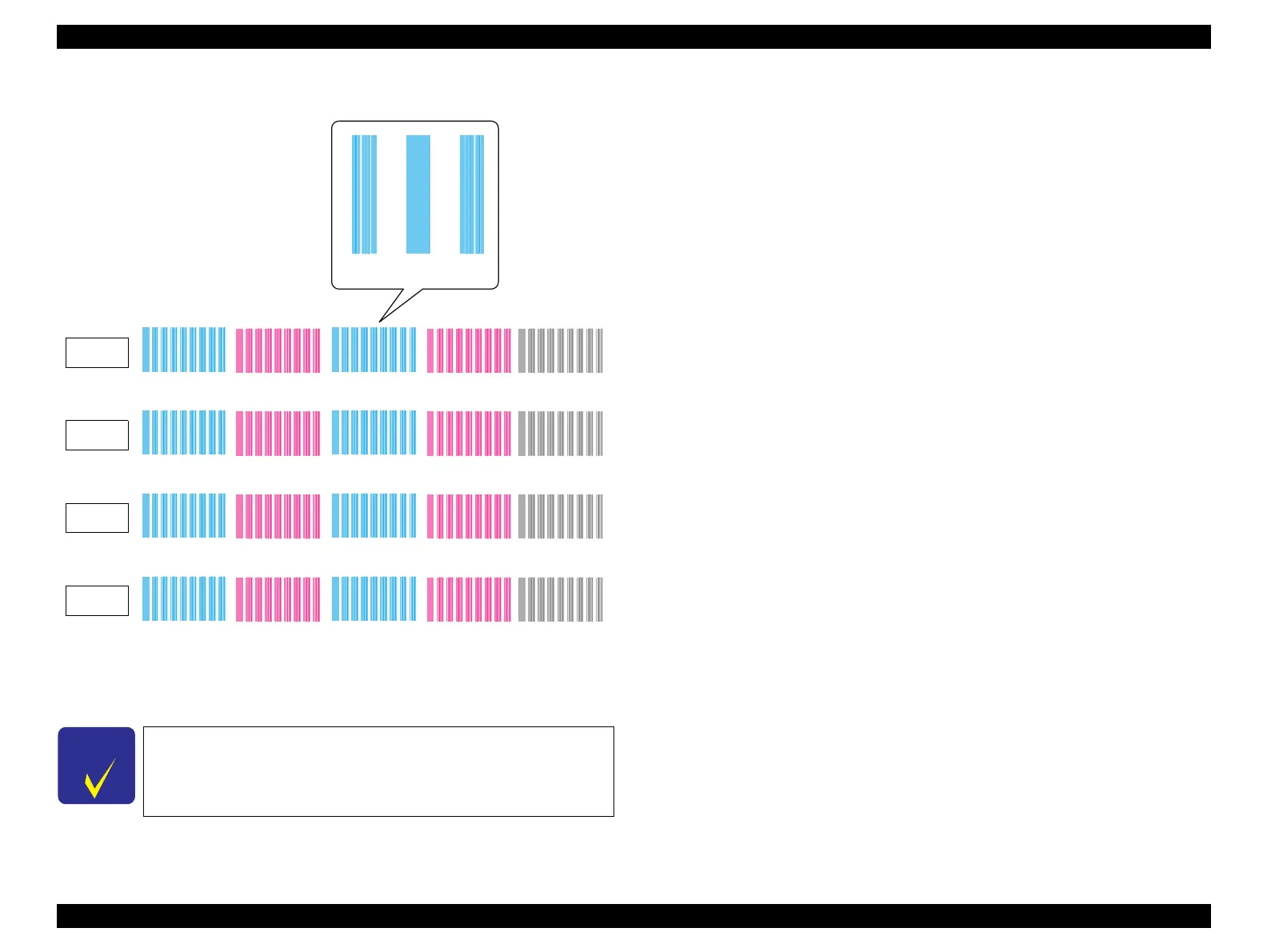

Figure 4-49. Adjustment Pattern
9. Click [OK] on the POPUP screen of the service program.
C H E C K
P O I N T
 By clicking the [OK] button on the program, the adjusted
results are also applied to media 1-30.
 The setting value for PG2.0/PG2.5 is automatically calculated.
UniD Head1 #1
C1 M1 C2 M2 BK2
123456 789
123456789
123456789
123456789 123456789
UniD Head1 #1
C1 M1 C2 M2 BK2
123456 789
123456789
123456789
123456789 123456789
UniD Head2 #1
C1 M1 C2 M2 BK2
123456 789
123456789
123456789
123456789 123456789
UniD Head2 #2
C1 M1 C2 M2 BK2
123456 789
123456789
123456789
123456789 123456789
NG NGOK
400 cps
Head 1
330 cps
Head 1
400 cps
Head 2
330 cps
Head 2
