HIKVISION EKI-K82T46 User Manual

NVR User Manual 061220NA 100

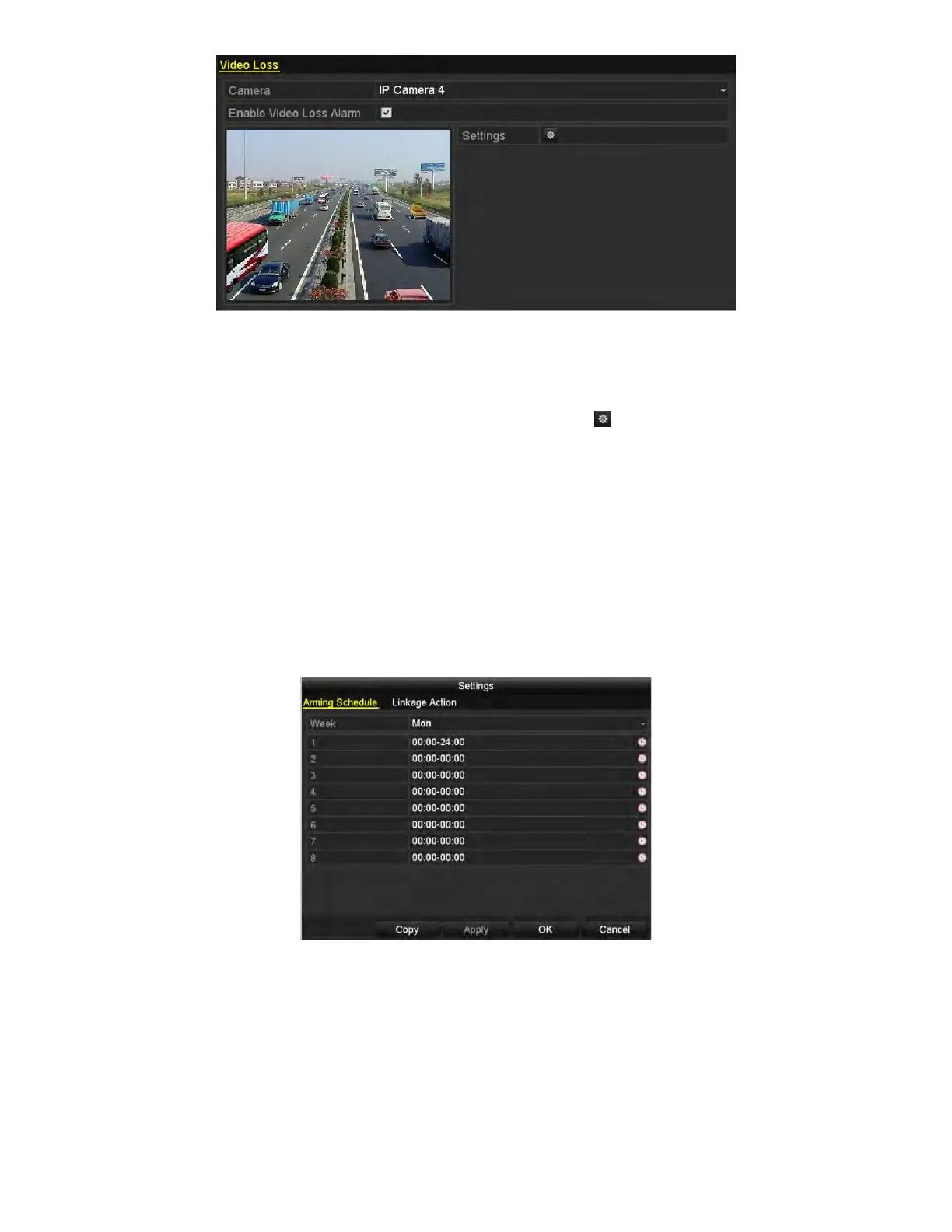

Figure 142, Video Loss Setup Interface
2. Set up handling action of video loss.
• Check the “Enable Video Loss Alarm” checkbox, and click the button to set up handling action of
video loss.
3. Set up arming schedule of the handling actions.
1) Select Arming Schedule tab to set the channel’s arming schedule.
2) Choose one day of the week. Up to eight time periods can be set within each day.
3) Click the Apply button to save the settings.
NOTE: Time periods cannot repeat or overlap.
Figure 143, Set Arming Schedule of Video Loss
4. Select Linkage Action tab to set up alarm response action of video loss (refer to Chapter Setting Alarm
Response Actions
).
5. Click the OK button to complete the video loss settings of the channel.
8.4 Detecting Video Tampering Alarm
