NVR User Manual 061220NA 60

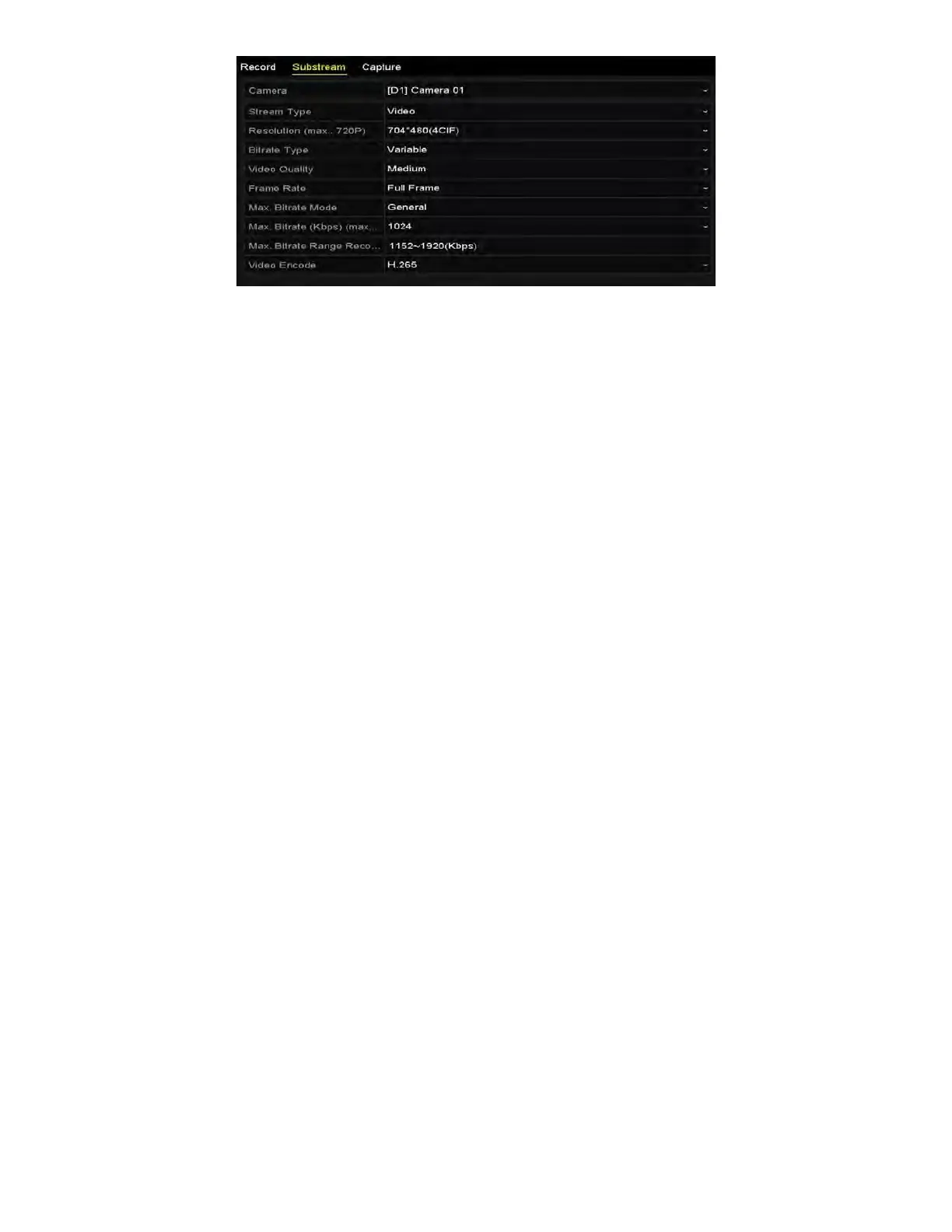

Figure 72, Sub-Stream Parameters
2) Configure the parameters of the camera.
3) Click Apply to save the settings.
5.2 Configuring Recording Schedule
Purpose
Set the record schedule, and then the camera automatically starts/stops recording according to the
configured schedule.
NOTE: In this chapter, we take the record schedule procedure as an example. The same
procedure can be applied to configure the schedule for both recording and capture. To
schedule automatic capture, choose the Capture tab in the Schedule interface.
1. Enter the Record Schedule interface, Menu > Record > Schedule.
2. Configure Record Schedule.
1) Select Record Schedule. Different recording types are marked in different color icons.
• Continuous: Scheduled recording
• Event: Recording triggered by all event triggered alarm
• Motion: Recording triggered by motion detection
• Alarm: Recording triggered by alarm
• M/A: Recording triggered by either motion detection or alarm
• M&A: Recording triggered by motion detection and alarm
NOTE: You can delete the set schedule by clicking the None icon
2) Choose the camera you want to configure.
3) Select the check box after the Enable Schedule item.
4) Click Edit button or the color icon under the edit button and draw the schedule line on the panel.
To Next Page
