NVR User Manual 061220NA 38
network camera manufacturer to identify the URL (uniform resource locator) for getting
the main stream and sub-stream.
The format of the URL is: [Type]://[IP Address of the network camera]:[Port]/[Path].
Example: rtsp://192.168.1.55:554/ch1/main/av_stream.
• Protocol Name: Edit the name for the custom protocol.
• E
nable Substream: If the network camera does not support sub-stream or the sub-stream is not
needed, leave the checkbox empty.
• Type: The network cameras adopting custom protocols must support getting a stream through
standard RTSP.
• Transfer Protocol: Select the transfer protocol for the custom protocol.
• Port: Set the custom protocol port no.
• Path: Set the resource path for the custom protocol (e.g., ch1/main/av_stream).
NOTE: The protocol type and the transfer protocols must be supported by the connected
network camera.

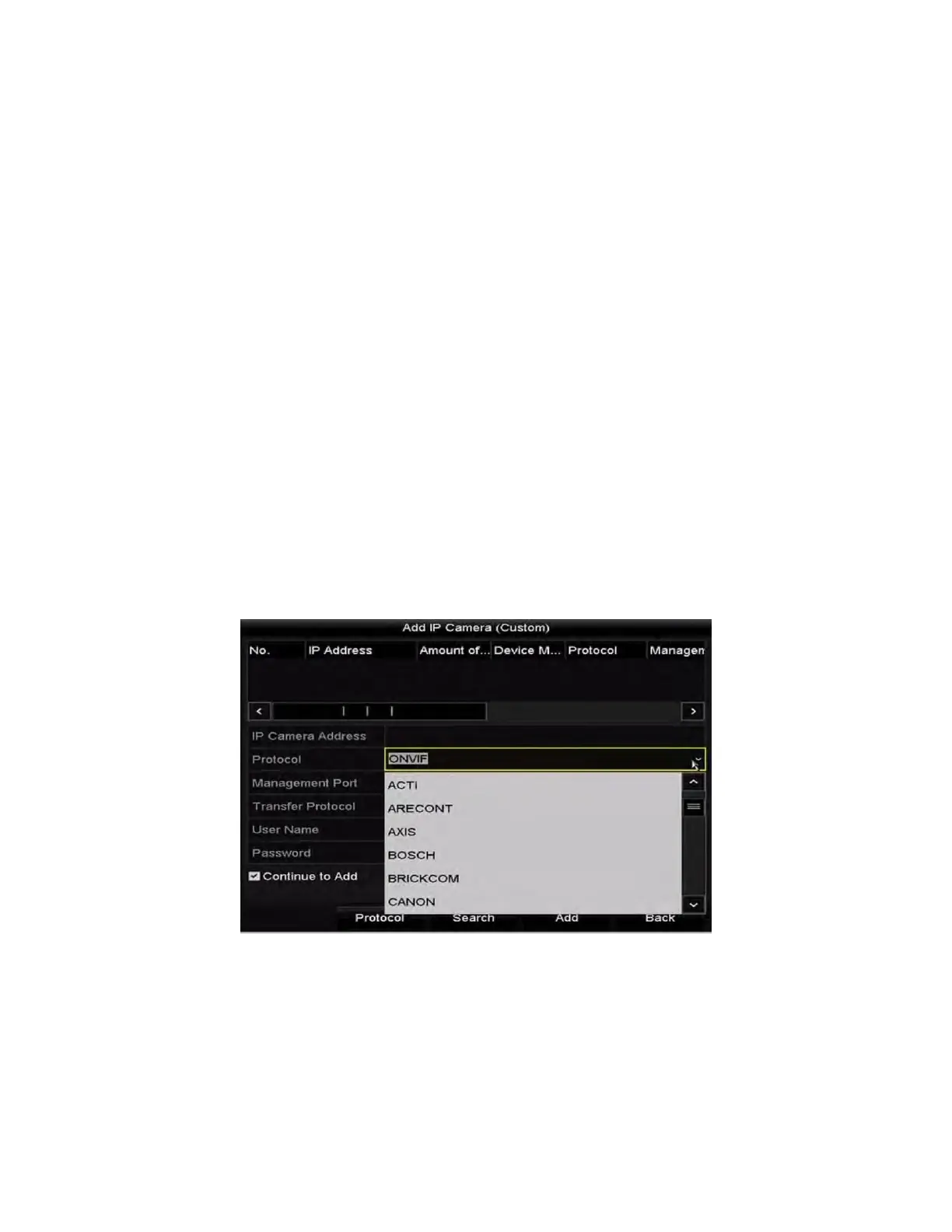

After adding the customized protocols, you will see the protocol name is listed in the
drop-down list, see below.
Figure 40, Protocol Setting
3. Choose the protocols you just added to validate the network camera connection.
2.3.4
Editing IP Cameras Connected to the PoE Interfaces
NOTE: This chapter is applicable only to /P Series NVRs.
PoE interfaces enable the NVR system to pass electrical power safely, along with data, on Ethernet
cabling to the connected network cameras.
