NVR User Manual 061220NA 149

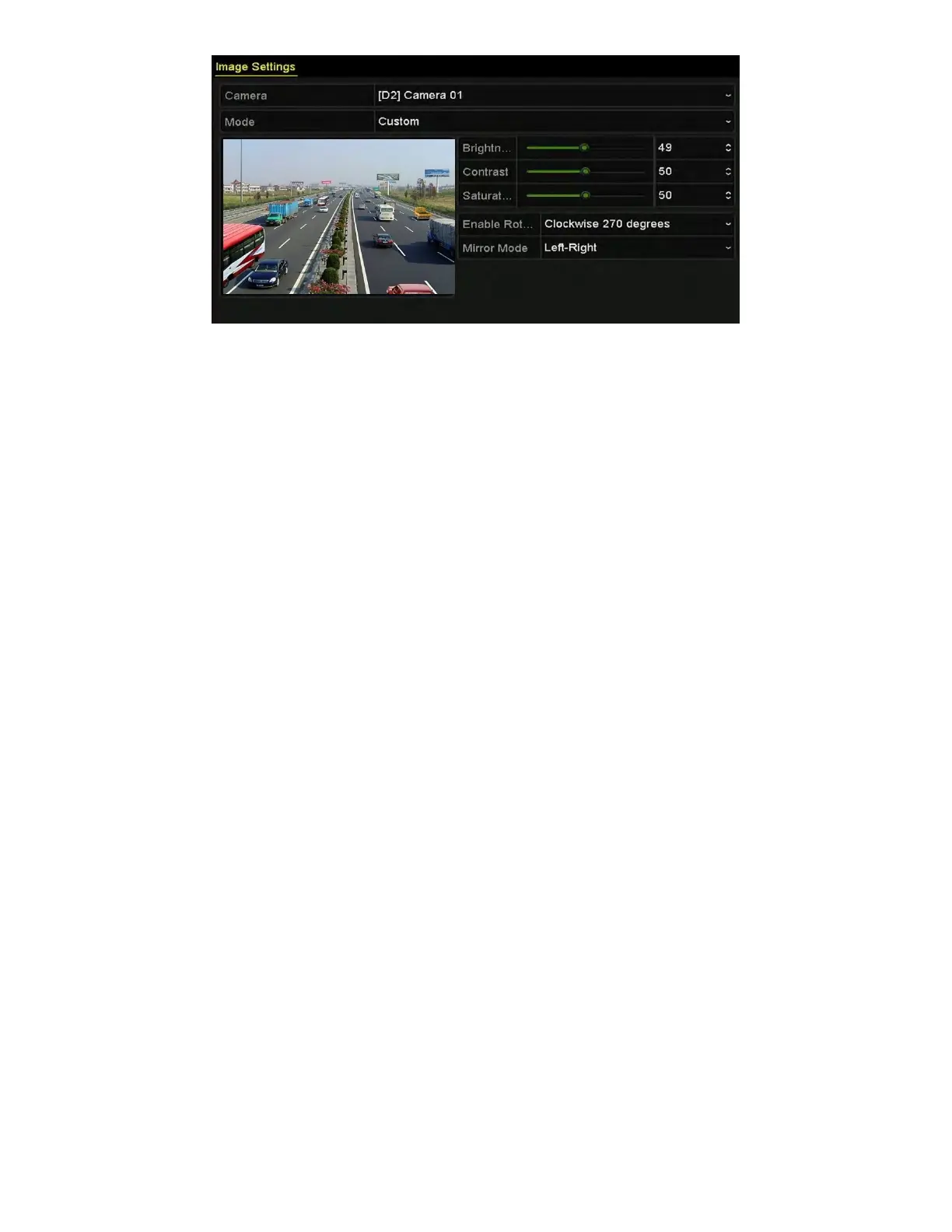

Figure 231, Image Settings Interface
2. Select the camera to set image parameters.
3. Adjust the slider or click on the up/down arrow to set the value of the brightness, contrast, or
saturation.
4. Select the Enable Rotate function to Clockwise 270 degrees or OFF. When OFF is selected, the image is
restored to original.
5. Select the Mirror Mode to Left-Right, Up-Down, Center or OFF. When OFF is selected, the image is
restored to original.
NOTE: The Rotate and Mirror functions must be supported by the connected IP camera.
The image parameters adjustment can affect both the live view and the recording quality.
6. Click the Apply button to save the settings.
Chapter 14 NVR Management and Maintenance
14.1 Viewing System Information
1. Enter the System Information interface, Menu > Maintenance > System Info.
2. You can click the Device Info, Camera, Record, Alarm, Network, and HDD tabs to view the system
information of the device.
