NVR User Manual 061220NA 147
the list below.
5. Click the Apply button to save the settings.
Chapter 13 Camera Settings
13.1 Configuring OSD Settings
Purpose
You can configure the OSD (On-screen Display) settings for the camera, including date/time, camera
name, etc.
1. Enter the OSD Configuration interface, Menu > Camera > OSD.
2. Select the camera to configure OSD settings.
3. Edit the Camera Name in the text field.
4. Configure the Display Name, Display Date, and Display Week by clicking the checkbox.
5. Select the Date Format, Time Format, and Display Mode.

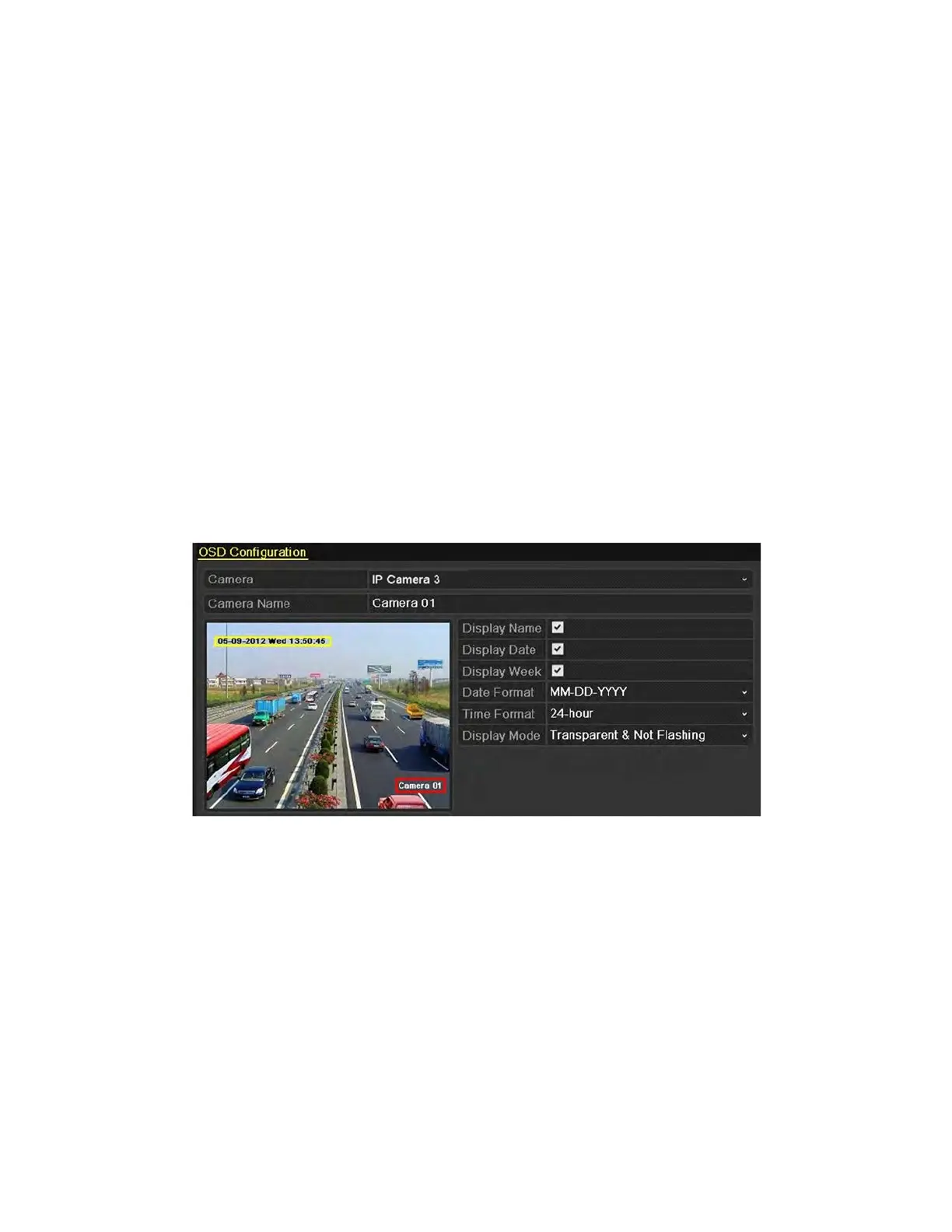

Figure 228, OSD Configuration Interface
6. Use the mouse to click and drag the text frame on the preview window to adjust the OSD position.
7. Click the Apply button to apply the settings.
13.2 Configuring Privacy Mask
Purpose
You are allowed to configure the four-sided privacy mask zones that cannot be viewed by the operator.
The privacy mask can prevent certain surveillance areas to be viewed or recorded.
1. Enter the Privacy Mask Settings interface, Menu > Camera >Privacy Mask.
2. Select the camera for which to set privacy mask.
