HIKVISION EKI-K82T46 User Manual

NVR User Manual 061220NA 146

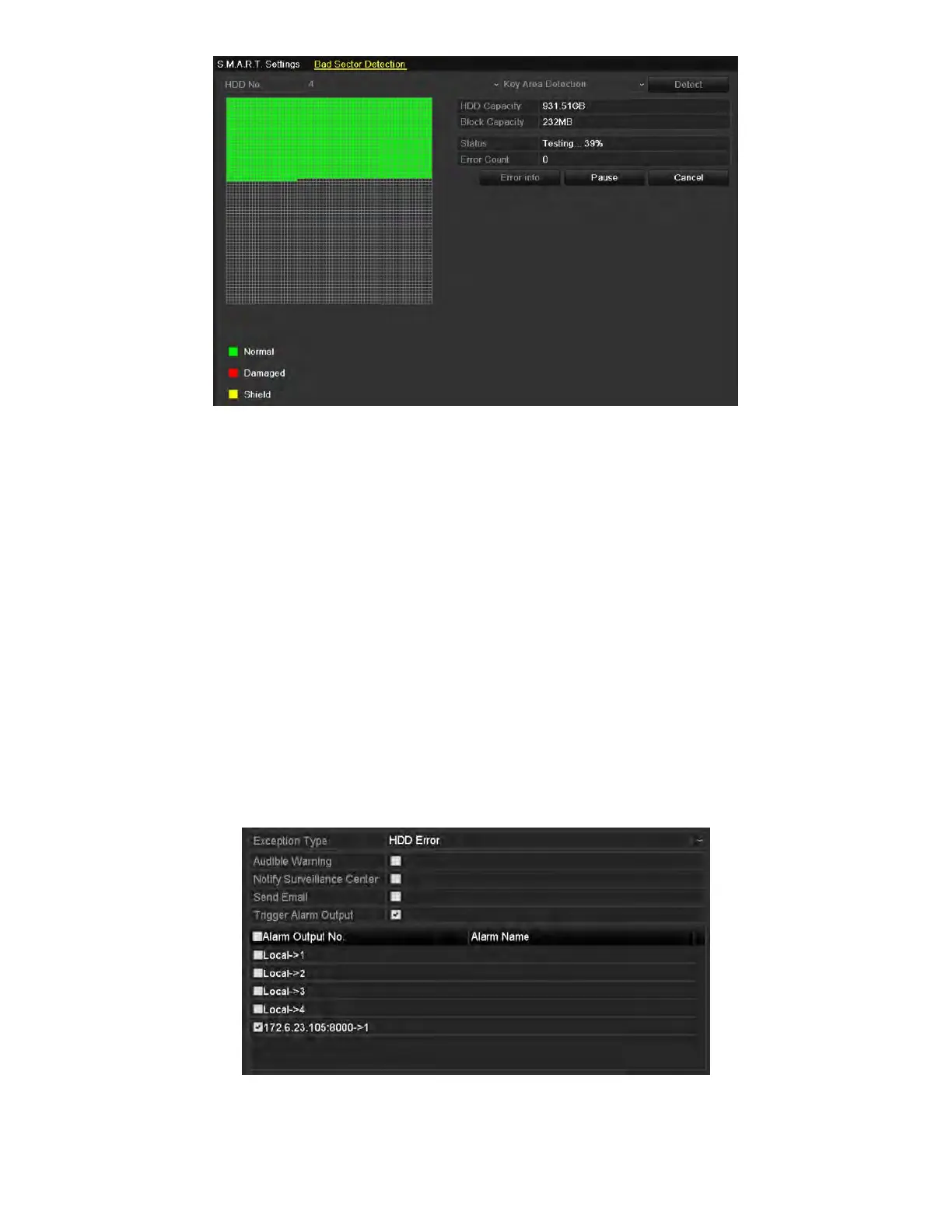

Figure 226, Click the Detect Button To Start the Detection.
You can click Error info button to see the detailed damage information. You can also pause/resume or
cancel the detection.
12.8 Configuring HDD Error Alarms
Purpose
You can configure the HDD error alarms when the HDD status is Uninitialized or Abnormal .
1. Enter the Exception interface, Menu > Configuration > Exceptions.
2. Set the Exception Type to HDD Error from the drop-down list.
3. Click the checkbox(es) below to select the HDD error alarm type(s).
NOTE: The alarm type can be selected as: Audible Warning, Notify Surveillance Center, Send E-
mail and Trigger Alarm Output. Refer to
Setting Alarm Response Actions .
Figure 227, Configure HDD Error Alarm
4. When the Trigger Alarm Output is selected, you can also select the alarm output to be triggered from

HIKVISION EKI-K82T46 Specifications

General

Brand	HIKVISION
Model	EKI-K82T46
Category	Network Hardware
Language	English
