NVR User Manual 061220NA 55
NOTE: The speed dome starts linear scan from the left limit to the right limit, and you must set
the left limit to the left side of the right limit, as well the angle from the left limit to the
right limit should be no more than 180º.
4.2.8
Calling Linear Scan
NOTE: Before operating this function, make sure the connected camera supports linear scan
and is in HIKVISION protocol.
Purpose
Follow the procedure to call the linear scan in the predefined scan range.
1. Click the PTZ b
utton in the lower-right corner of the PTZ setting interface, or press the PTZ button on
the front panel, or click the PTZ Control icon in the quick setting bar to enter the PTZ setting menu
in live view mode.
2. Click the button to show the one-touch function of the PTZ control.

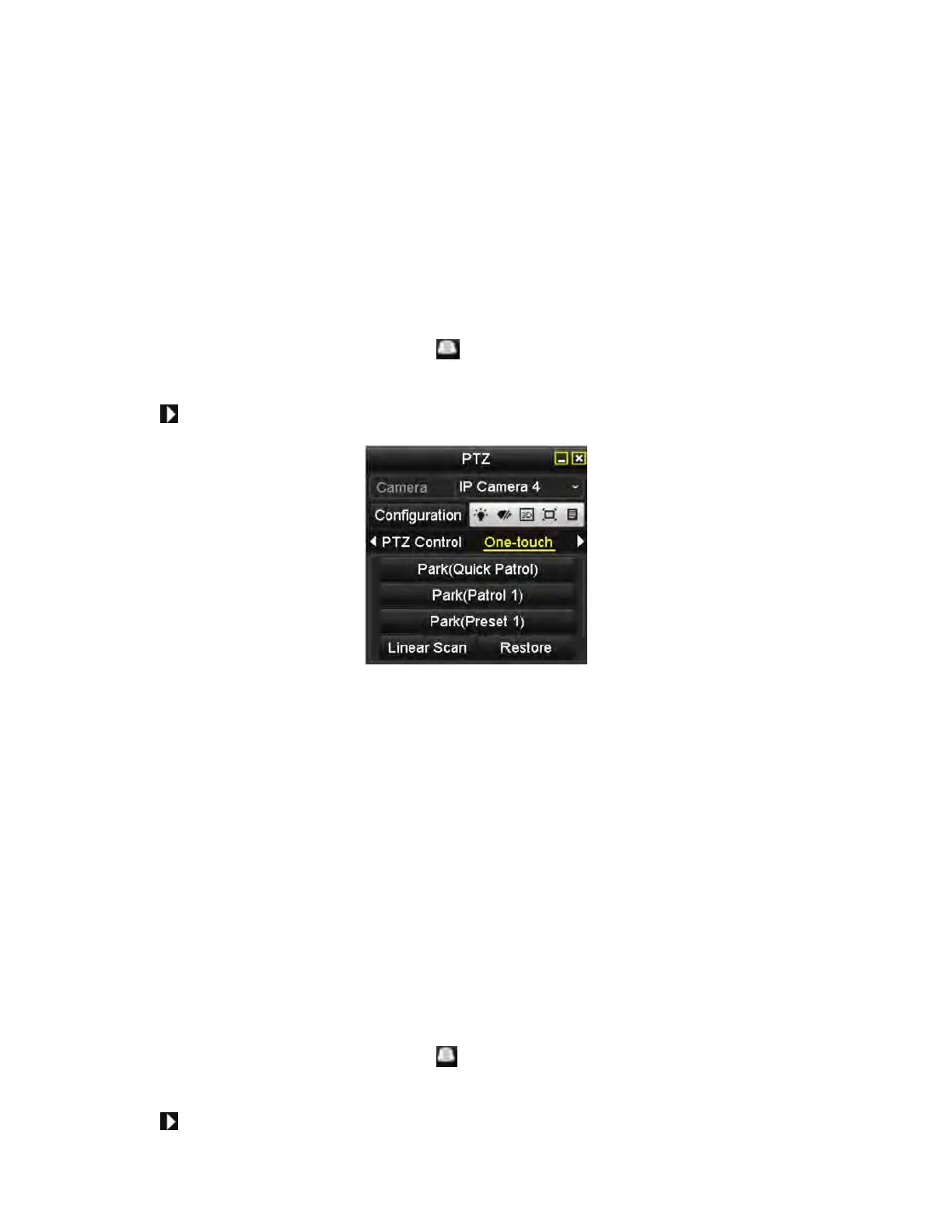

Figure 65, PTZ Panel−One-Touch
3. Click the Linear Scan button to start the linear scan, and click the Linear Scan button again to stop it.
You can click the Restore button to clear the defined left limit and right limit data and the dome needs to
reboot to make settings take effect.
4.2.9
One-Touch Park
NOTE: Before operating this function, make sure the connected camera supports linear scan
and is in HIKVISION protocol.
Purpose
Certain models of speed dome can be configured to start a predefined park action (scan, preset, patrol,
etc.) automatically after a period of inactivity (park time).
1. Click the PTZ b
utton in the lower-right corner of the PTZ setting interface, or press the PTZ button on
the front panel, or click the PTZ Control icon in the quick setting bar to enter the PTZ setting menu
in live view mode.
2. Click the button to show the one-touch function of the PTZ control.
To Next Page
