NVR User Manual 061220NA 71

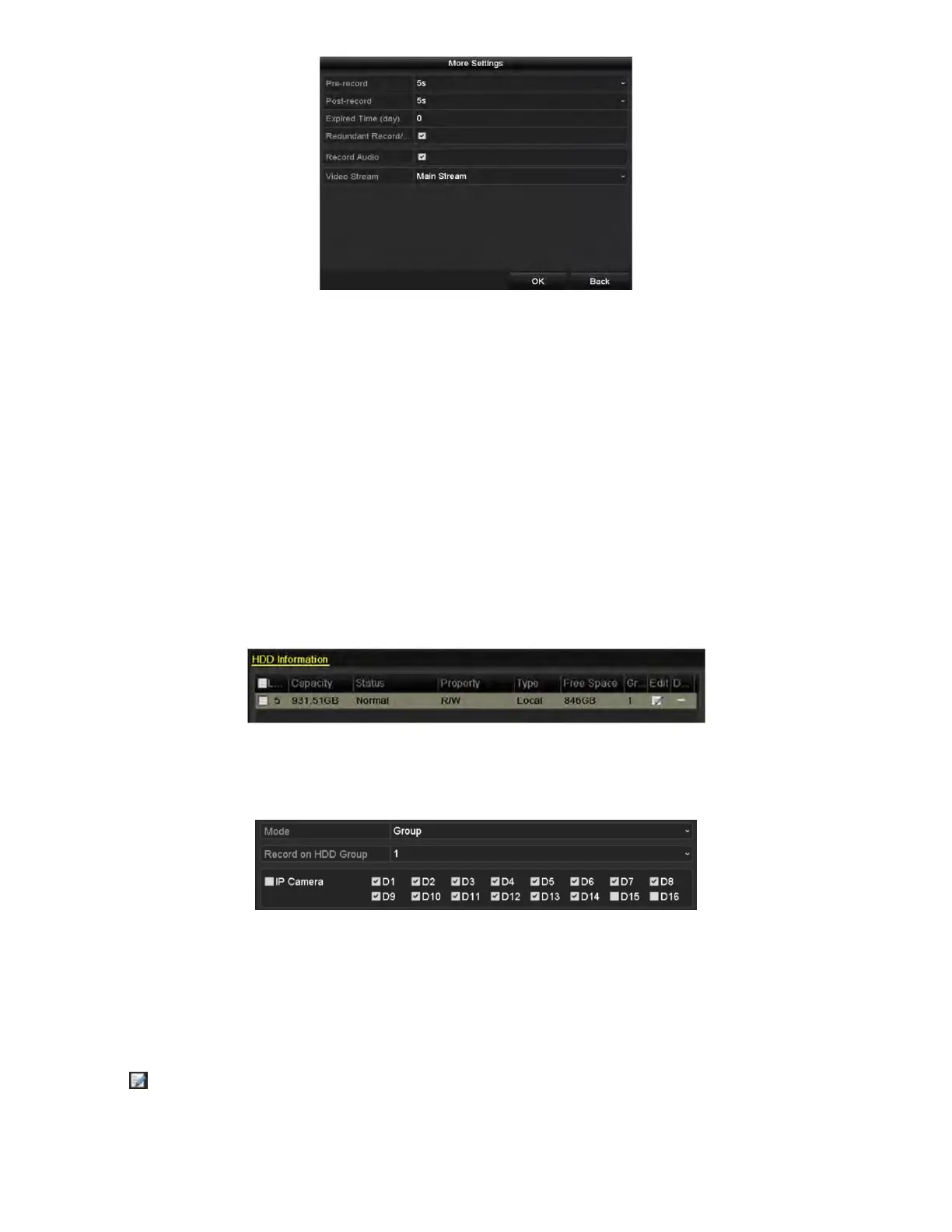

Figure 92, Record Parameters
3) Select Camera you want to configure in the drop-down list.
4) Check the checkbox of Redundant Record/Capture.
5) Click OK to save settings and back to the upper level menu. Repeat the above steps to configure
other channels.
5.9 Configuring HDD Group for Recording
Purpose
You can group the HDDs and save the record files and captured pictures in certain HDD groups.
1. Enter HDD setting interface, Menu > HDD.
Figure 93, HDD General
2. Select Advanced on the left side menu.
Figure 94, Storage Mode
3. Check if the storage mode of the HDD is Group. If not, set it to Group. For detailed information, refer to
Managing HDD Group.
4. Select General in the left side menu S
5. Click to enter editing interface.
6. Configuring HDD group.
1) Choose a group number for the HDD group.
To Next Page
