NVR User Manual 061220NA 57

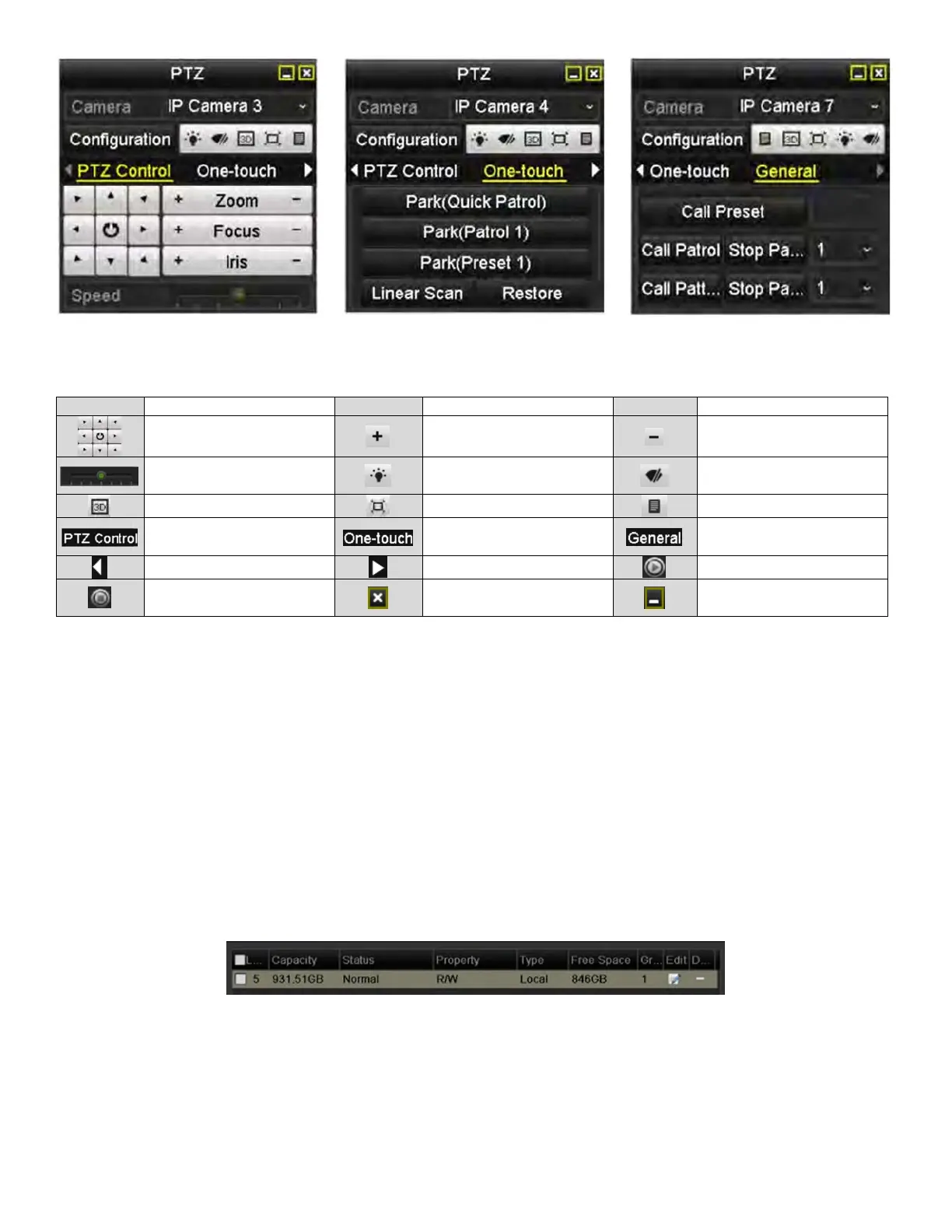

Figure 67, PTZ Panel
Table 4-1 Description of the PTZ panel icons
Description
Direction button and the
auto-cycle button
Zoom+, Focus+, Iris+
Zoom-, Focus-, Iris-
The speed of the PTZ
movement
Light on/off
Wiper on/off
3D Positioning
Image Centralization
Menu
Switch to the PTZ control
interface
Switch to the one-touch
control interface
Switch to the general
settings interface
Previous item
Next item
Start pattern/ patrol
Stop the patrol/pattern
movement
Exit
Minimize windows
Chapter 5 Recording Settings
5.1 Configuring Parameters
Purpose
By configuring the parameters you can define the parameters that affect the image quality such as the
transmission stream type, the resolution, etc.
Before You Start
1. Make sure that the HDD has already been installed. If not, please install an HDD and initialize it (Menu >
HDD > General.)
Figure 68, HDD−General
2. Click Advanced to check the storage mode of the HDD.
• If the HDD mode is
Quota
, set the maximum record capacity and maximum picture capacity. For
detailed information, see
Configuring Quota Mode.
