NVR User Manual 061220NA 44
3.2.3
Using an Auxiliary Monitor
Certain features of the Live View are also available while in an Aux monitor. These features include:
• Single Screen: Switch to a full screen display of the selected camera. Camera can be selected from a
drop-down list.
• Multi-Screen: Switch between different display layout options. Layout options can be selected from a
drop-down list.
• N
ext Screen: When displaying less than the maximum number of cameras in Live View, clicking this
feature will switch to the next set of displays.
• Playback: Enter into Playback mode.
• PTZ Control: Enter PTZ Control mode.
• Main Monitor: Enter Main operation mode.
NOTE: In the live view mode of the main output monitor, the menu operation is not available
while Aux output mode is enabled.
3.2.4
Quick Setting Toolbar in Live View Mode
On the screen of each channel, there is a quick setting toolbar which shows when you single click the
mouse in the corresponding screen.

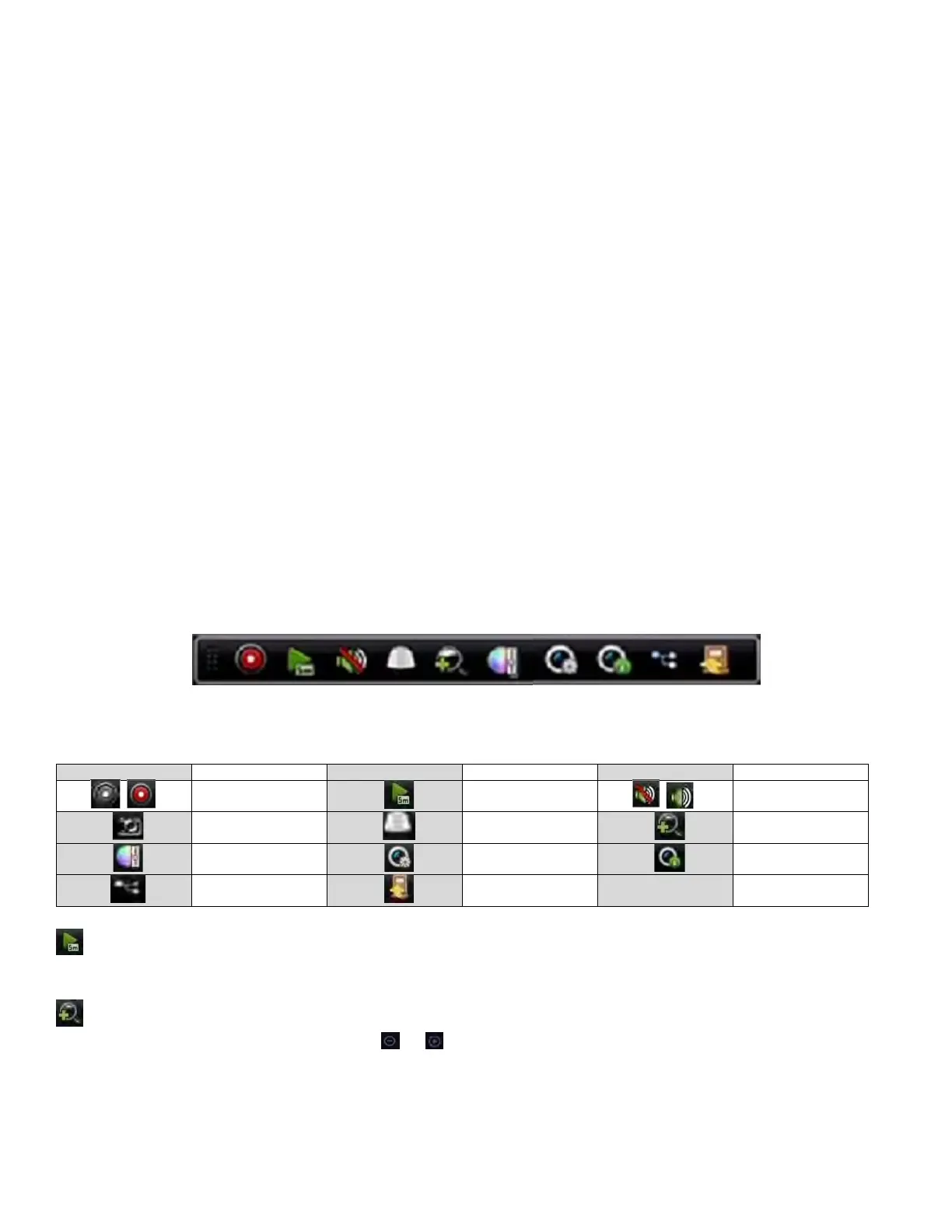

Figure 46, Quick Setting Toolbar
Table 3-4 Description of Quick Setting Toolbar Icons
Instant Playback
Mute/Audio on
Capture
PTZ Control
Digital Zoom
Image Settings
Live View Strategy
Information
Main/Sub-Stre am
Close
Instant Playback shows the record only in the last five minutes. If no record is found, it means there is
no record during the last five minutes.
Digital Zoom is for zooming in to the live image. You can zoom in the image to different magnifications
(1x to 16x) by moving the sliding bar from to . You can also scroll the mouse wheel to zoom in/out.
