8.5 Viewing High-order Harmonic Waveforms
129
Chapter 8 Checking Events (EVENT screen)
8
RMS values for noise components at 2 kHz and higher are known as the high-order harmonic
component. When a high-order harmonic component event is detected, the high-order harmonic
waveform is recorded. The high-order harmonic waveform is a 40 ms instantaneous waveform
sampled at 200 kHz.

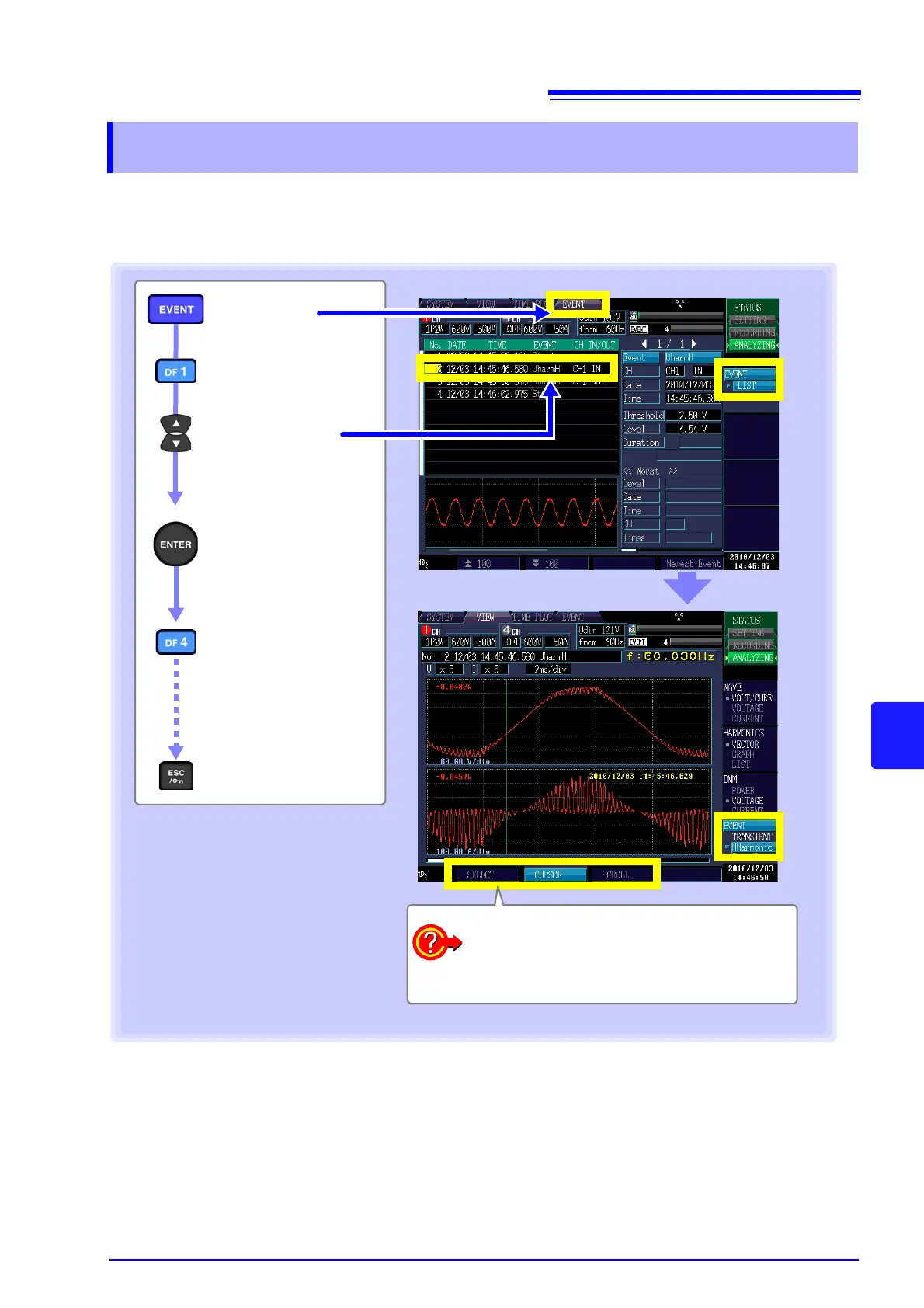

8.5 Viewing High-order Harmonic Waveforms
Accept setting
The display will switch to
the [VIEW] screen, and
the waveform at the time
of the event will be dis-
played.
Select a event
Return to event list
[EVENT]
[LIST]
[HHarmonic]
High-order harmonic waveforms
display
To enlarge or reduce the graph (p.130)
To read the value above the cursor (p.131)
To scroll waveform data (p.131)
Select with the F key.
