3.2 Initial Instrument Preparations
29
Chapter 3 Measurement Preparations
The instrument ships with 20 spiral wrappers. Use the wrappers to bundle pairs of cords (colored and
black) together as needed.
Preparation items
Procedure

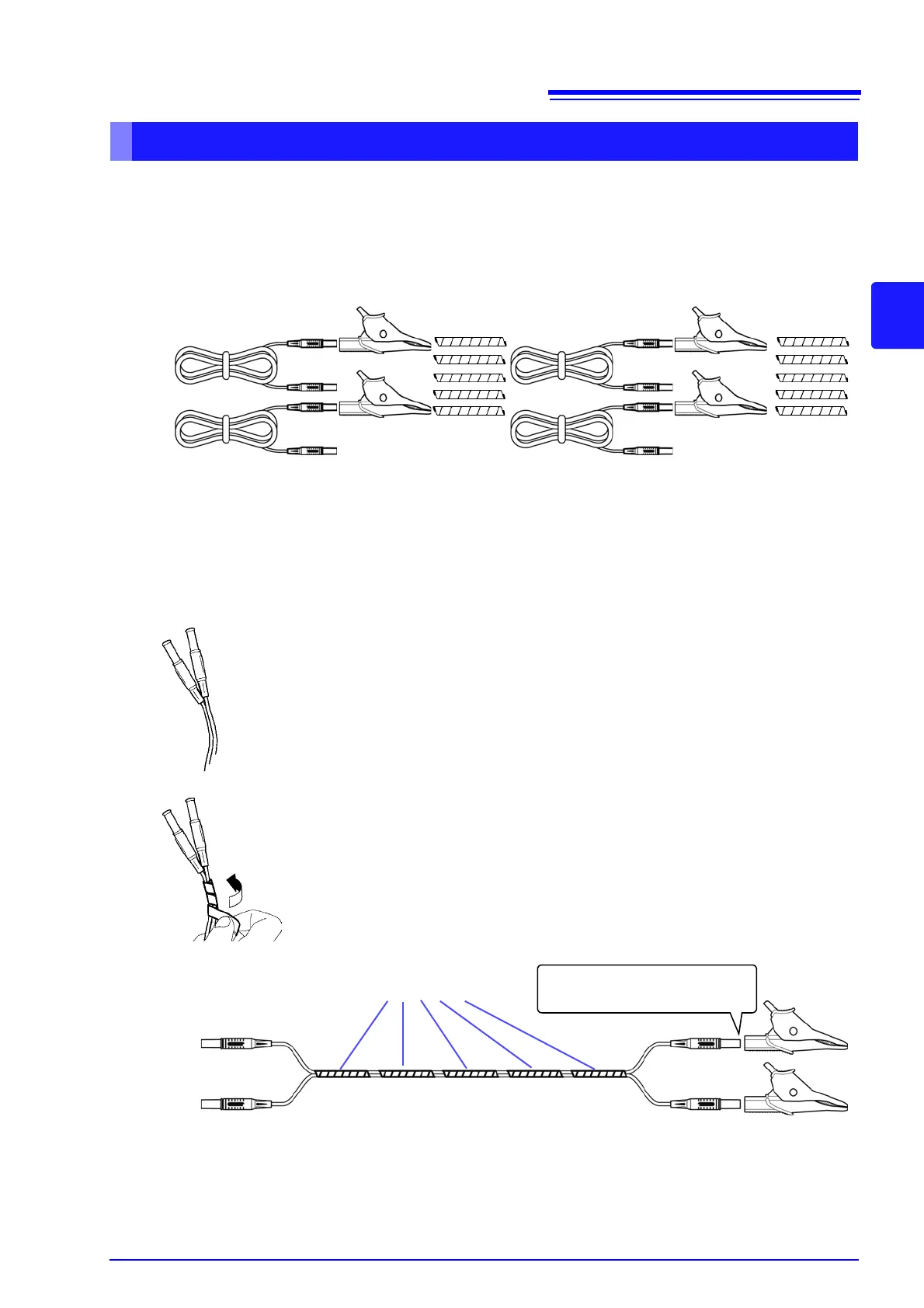

Bundle the voltage cord leads with the spiral tubes
L1000 Voltage Cord
Alligator Clips (eight, one each red, yellow, blue, gray, and four black)
Banana Plug Leads (eight, one each red, yellow, blue, gray, and four black)
Spiral Tubes (twenty, for cable bundling)
(Two sets of the following)
1.
Line up two cords (colored and black).
Start bundling from one end of the leads.
2.
Wind the spiral tube around the leads.
Wrap the two leads together with the spiral tube. The five spiral tubes should be ap-
plied with suitable spacing.
Colored
Black
Spiral tube
Attach alligator clips that are
the same color as the cords.
