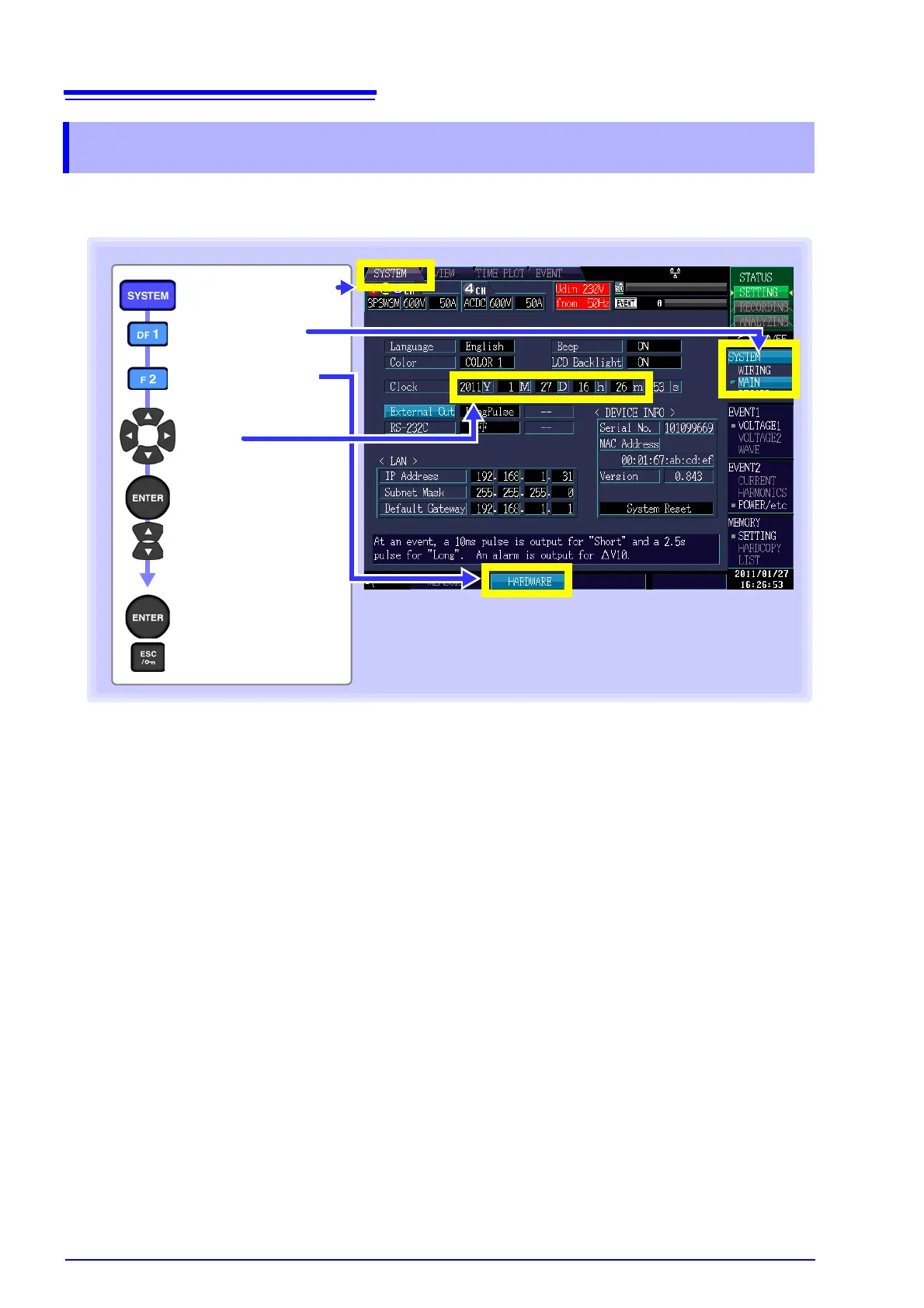

4.2 Setting the Clock
38
This section
describes how
to set the
PW3198's clock
.
It is recommended to check
the clock before st
a
rting recording.
4.2
Setting the Clock
Select value to
change
Set value
Accept setting
Cancel
[SYSTEM]
screen
Move
[MAIN]
[HARDW
ARE]
43
