5.1 Changing Measurement Conditions
55
Chapter 5 Changing Settings (as necessary)
5
WIRING
Selects the measurement line.
Udin
Selects the nominal input voltage (Udin) for the measurement line.
Changing Settings
(as necessary) Chapter 5
5.1 Changing Measurement Conditions

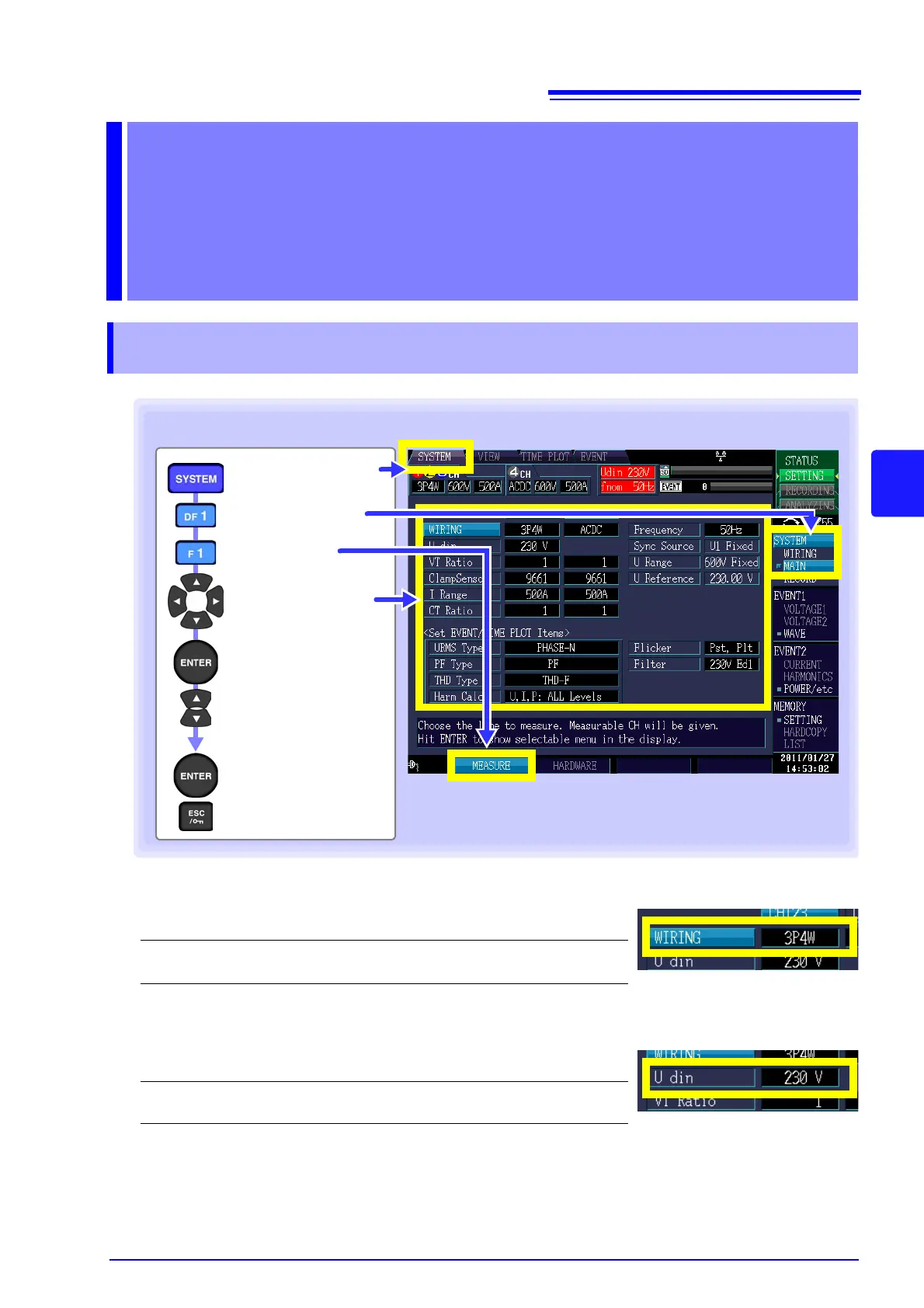

Display the
pull-down menu
Select a setting
Accept the setting
Cancel
[MAIN]
[SYSTEM] screen
Select a setting
Key operation during configuration
[MEASURE]
Setting Contents:(  : Default setting)
CH1,2,3: 1P2W/1P3W/3P3W2M/3P3W3M/3P4W/3P4W2.5E
CH4: ACDC
/DC/OFF
Setting Contents:(  : Default setting)
100/101/110/120/127/200/202/208/220/230/240/277/347/380/400/415/480/
600/VARIABLE (set from 50 to 780 V in 1 V increments)
