4.3 Configuring the Connection Mode and Clamp Sensors

Chapter 4 Configuring the Instrument before Measurement (SYSTEM - SYSTEM screen)

This section describes how to configure the connection mode and clamp sensors appropriately

for the measurement line being analyzed.

Eight wiring modes are available.

4.3 Configuring the Connection Mode and

Clamp Sensors

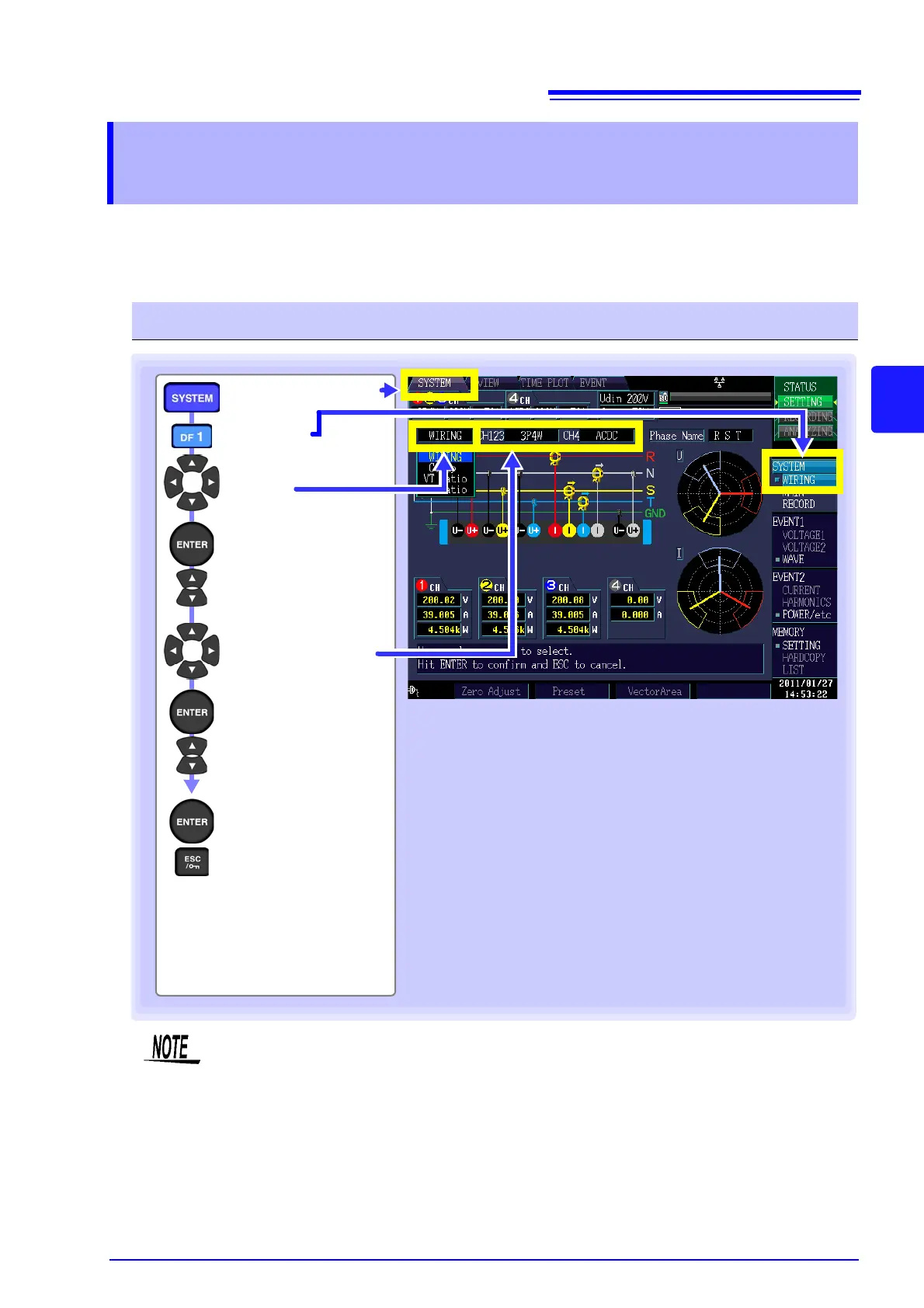

To select the wiring mode

Display the

pull-down menu

Select

[WIRING]

Accept setting

Cancel

[SYSTEM] screen

Move

[WIRING]

Accepting the settings will cause a

connection diagram for the selected

connection mode to be displayed.

Accepting the selection displays the

wiring diagram of the selected wiring

mode. (p.40)

Display the

pull-down menu

Select the

connection mode

[CH123], [CH4]

• To measure multiphase power, use the same type of clamp sensor on each phase

line. For example, to measure 3-phase 4-wire power, use the same model clamp sen-

sors on channels 1 to 3.

• When using clamp sensors with switchable ratings (ranges), for example the 9667

Flexible Clamp-On Sensor, use the same rating (range) setting for the sensors and

the instrument.
