6.1 Using the VIEW screen
75
Chapter 6 Monitoring Instantaneous Values (VIEW
6

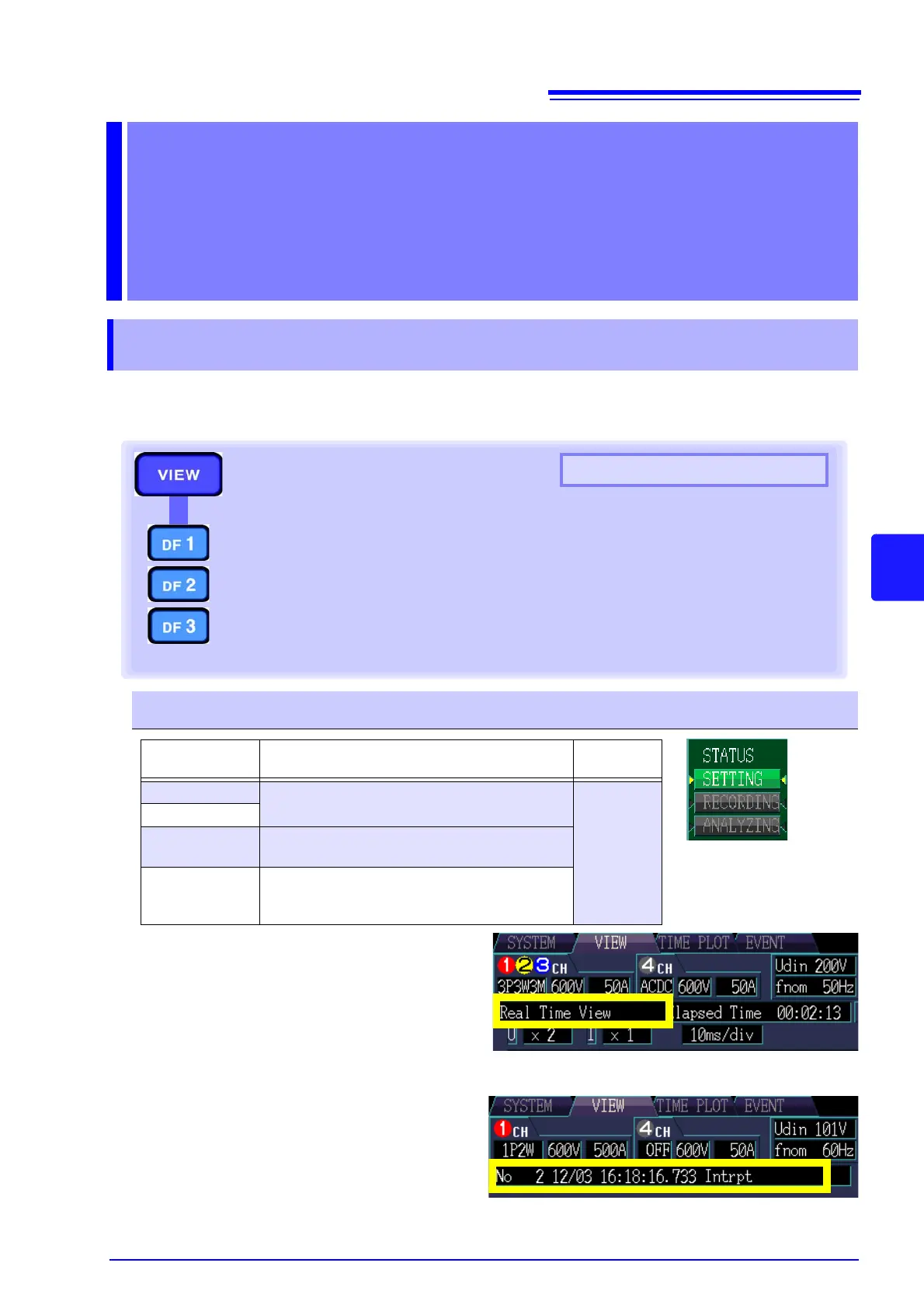

The VIEW screen is composed of a number of screens corresponding to the DF1 to DF4 (DF: dis-
play function) keys. When you press a DF key, the screen corresponding to that key appears.
Each time you press the same DF key, the display changes.
Normal screen display:
Displays the current measurement screen.
Note: [WAITING]
From the time the START/STOP key is pressed
until measurement actually starts, settings are
shown as [WAITING]. Settings are also shown as
[WAITING] when measurement has been
stopped due to use of repeated recording.
Screen display after an event is selected:
This screen is shown when an event is selected on
the [EVENT] screen in [ANALYZING] mode. As
shown in the screenshot to the right, the event num-
ber, time and date, and type are displayed.
See:"8.3 Analyzing the Measurement Line Status
When Events Occur" (p.124)
Monitoring Instantaneous Values
(VIEW Screen) Chapter 6
6.1 Using the VIEW screen
VIEW screen selector
WAVE
See: "6.2 Displaying Instantaneous Waveforms" (p.76)
HARMONICS
See: "6.3 Displaying Phase Relationships ([VECTOR] Screen)" (p.80),
"6.4 Displaying Harmonics" (p.83)
DMM
See: "6.5 Displaying Measured Values Numerically (DMM Screen)" (p.89)
Switching screen display
About screen configuration (p.23)
The screen shown varies with the instrument's internal operating state.
Internal oper-
ating state
Display
Display
update
[SETTING]
Contents of the display update during setting.
Approxi-
mately
1 second
[WAITING]
[RECORDING]
Contents of the latest display update during
measurement.
[ANALYZING]
Contents of the display update during analysis,
or contents at the moment an event selected in
[EVENT] screen occurs.
