6.2 Displaying Instantaneous Waveforms
76

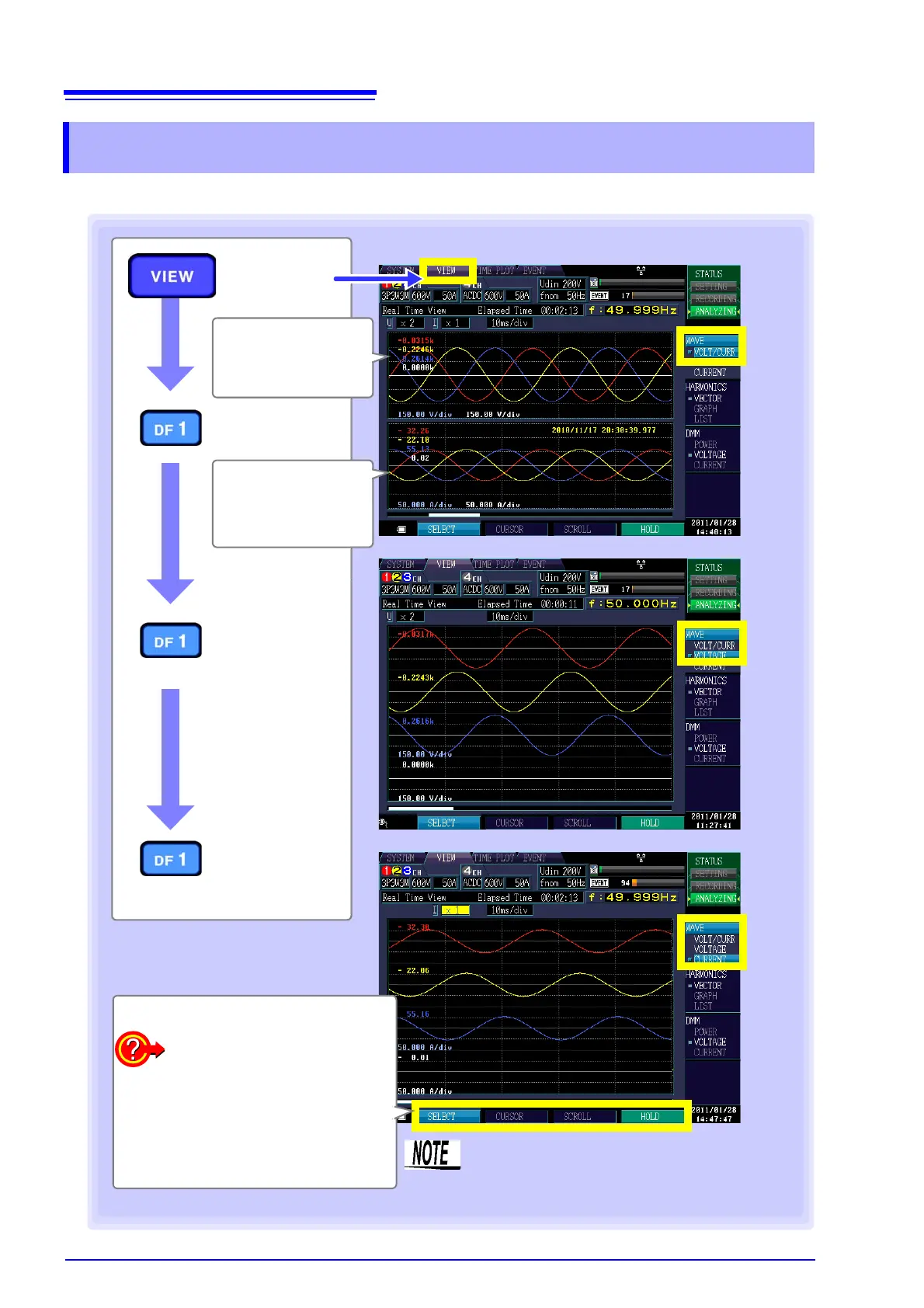

This section describes how to display the voltage and current instantaneous waveforms.
6.2 Displaying Instantaneous Waveforms
/(p.77)
To read the value
above the cursor (p.78)
To scroll waveform
data (p.79)
[VIEW]
screen
[WAVE]
[VOLTAGE]
Waveform colors
Red: CH1, Yellow: CH2
Blue: CH3, White: CH4
Example: Waveform showing four 3P4W
(3-phase, 4-wire) channels
Select with the F key.
To reduce or enlarge the
waveform (p.77)
To view the value and time
over the cursor (p.78)
To scroll through the wave-
form (p.79)
To hold the display (p.79)
Superimposes and
displays 4 channels
of the voltage wave-
form.
Superimposes and
displays 4 channels
of the current wave-
form.
[WAVE]
[VOLT/CURR]
[WAVE]
[CURRENT]
The instantaneous waveform displays the wave-
form sampled at 20 kHz. (Measured values are
calculated using waveforms sampled at a differ-
ent frequency for each parameter.)
