MAINTENANCE AND ADJUSTMENT OF THE UTV
- 105-
1. Shift the drive select lever into low gear “L”.
2. Remove:
·driver seat
·passenger seat
·console
Refer to “SEATS” in chapter5.
3. Check:
·parking brake cable free play ○a
Out of specification
Adjust.。
Parking brake cable free play
2 ~ 3 mm (0.079 ~ 0.118 in)

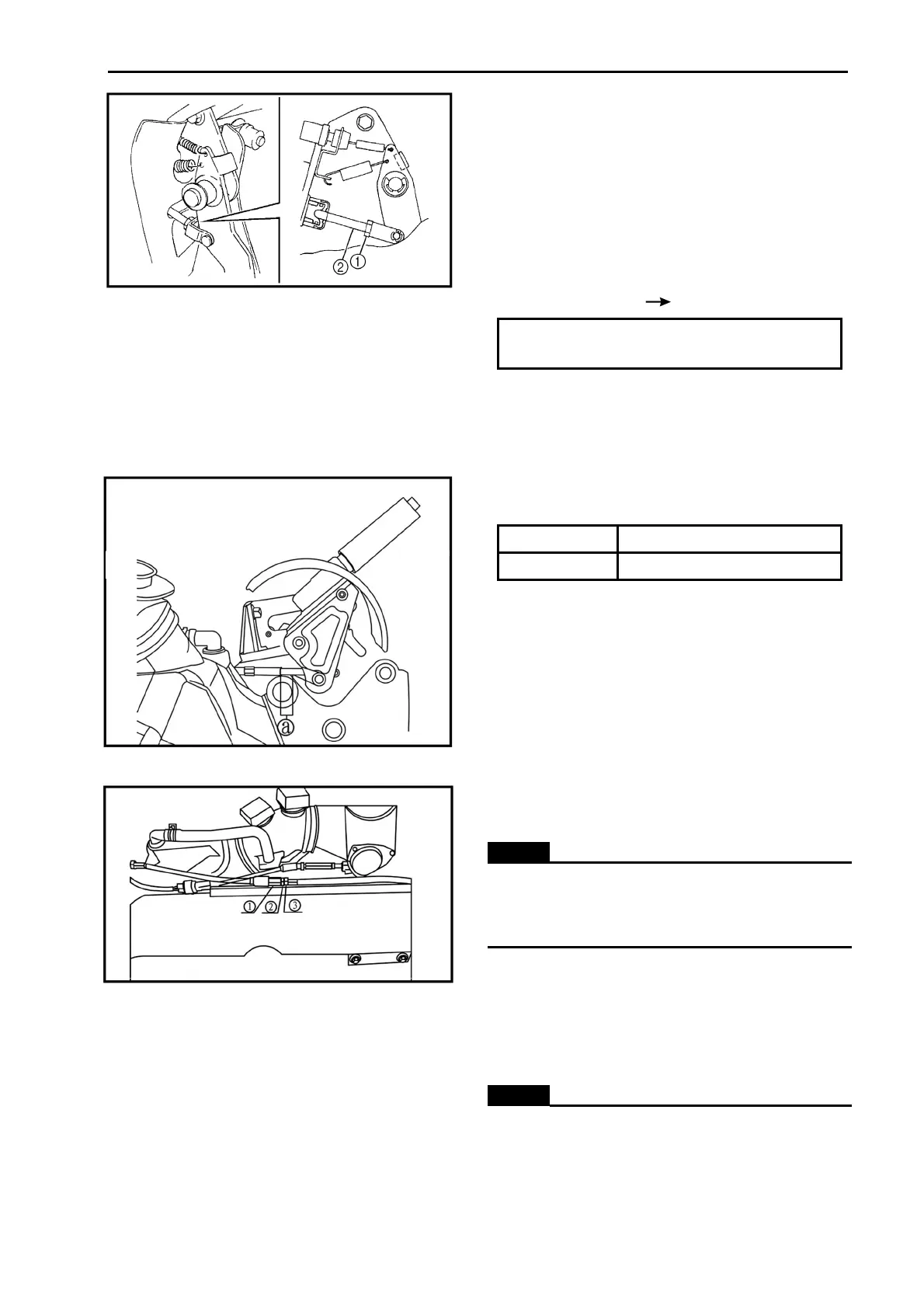

4. Adjust:
·parking brake cable free play
a. Pull back the adjuster cover .①
b. Loosen the locknut .②
c. Turn the adjuster in or out until the corre③ ct
free play is obtained.
Turning in Free play is increased.
Turning out Free play is decreased.
d. Tighten the locknut .②
e. Slide the adjuster cover 1 to its original position.
5. Install:
·console
·passenger seat
·driver seat
Refer to “SEATS” in chapter 5.
CHECKING THE BRAKE FLUID LEVEL
1. Place the vehicle on a level surface.
NOTE:
When checking the brake fluid level, make sure
that the top of the brake fluid reservoir top is
horizontal.
2. Lift the hood up.
3. Check:
brake fluid level Fluid level is under “MIN”
level line Fill up.①
NOTE:
Brake fluid may erode painted surfaces o
