MAINTENANCE AND ADJUSTMENT OF THE UTV
- 111-
23 Nm (2.3 m · kg, 17 ft · lb)

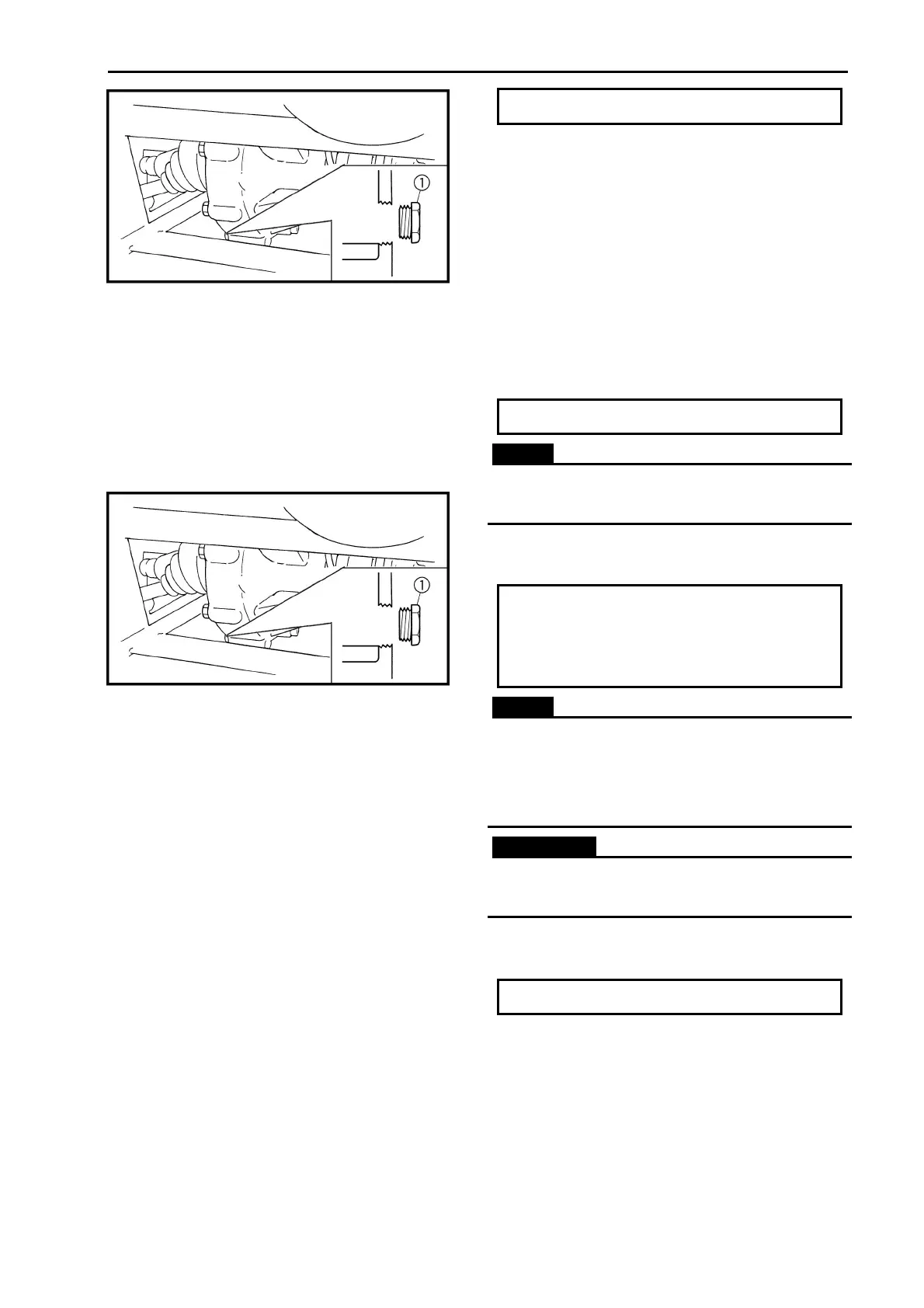

CHANGING THE DIFFERENTIAL GEAR OIL
1. Place the vehicle on a level surface.
2. Place a receptacle under the differential gea
case.
3. Remove:
·oil filler plug ①
4. Drain:
·differential gear oil
5. Install:
·drain plug
10 Nm (1.0 m · kg, 7.2 ft · lb)
NOTE:
Check the gasket (drain plug). If it is damaged,
replace it with new one.
6. Fill:
·differential gear case
Periodic oil change
0.32 L (0.28 Imp qt, 0.34 US qt)
Total amount
0.33 L (0.29 Imp qt, 0.35 US qt)
NOTE:
If gear oil is filled to the brim of the oil filler
hole, oil may start leaking from the differential
gear case breather hose. Therefore, check the
quantity of the oil, not its level.
WARNING
:
Take care not to allow foreign material to ente
the differential gear case.
7. Install:
• oil filler plug
23 Nm (2.3 m · kg, 17 ft · lb)
CHECKING THE CONSTANT VELOCITY JOINT
DUST BOOTS
1. Check:
• dust boots ①
