CHASSIS
- 234-

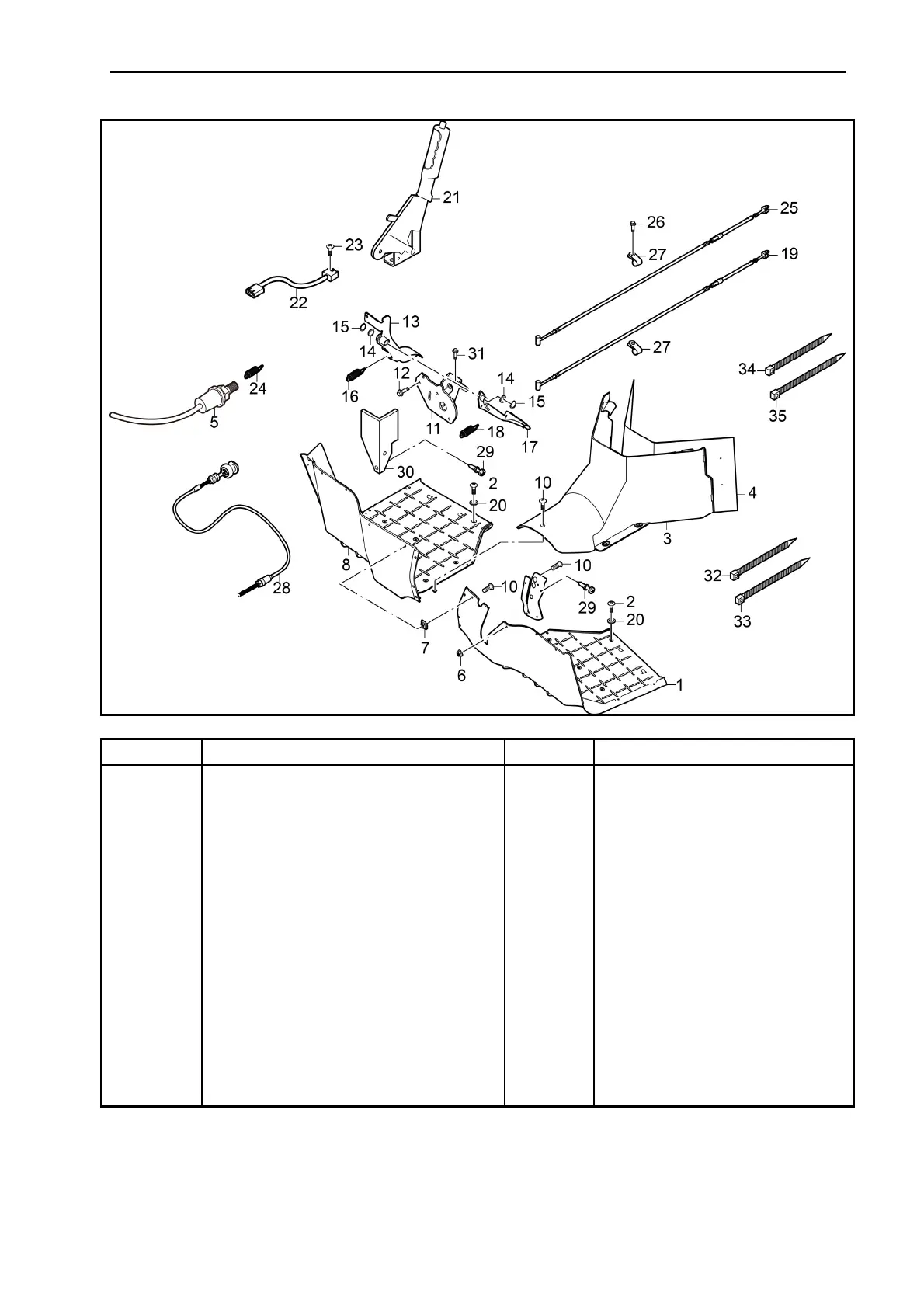

FOOTREST ASSEMBLY
No. Part Name Qty Remarks
Removing the footrest
1 Left footrest protector 1
2 Cross large plate head screw M5×16 14
3 Axle cover 1
4
Insulation paper Ⅲ
1
5 Lamp switch, rear break 1
6 Hexagon flange self-lock nuts M6 2
7 Nut Clip M6 9
8 Right footrest protector 1
9 Dustproof plate, brake pedal 1
10 Cross large plate head screw M6×16 11
11 Rear brake pump bracket assy 1
12 Hexagon flange bolt M8×16 2
13 Accelerator pedal welding assy 1
