MAINTENANCE AND ADJUSTMENT OF THE UTV
- 109-

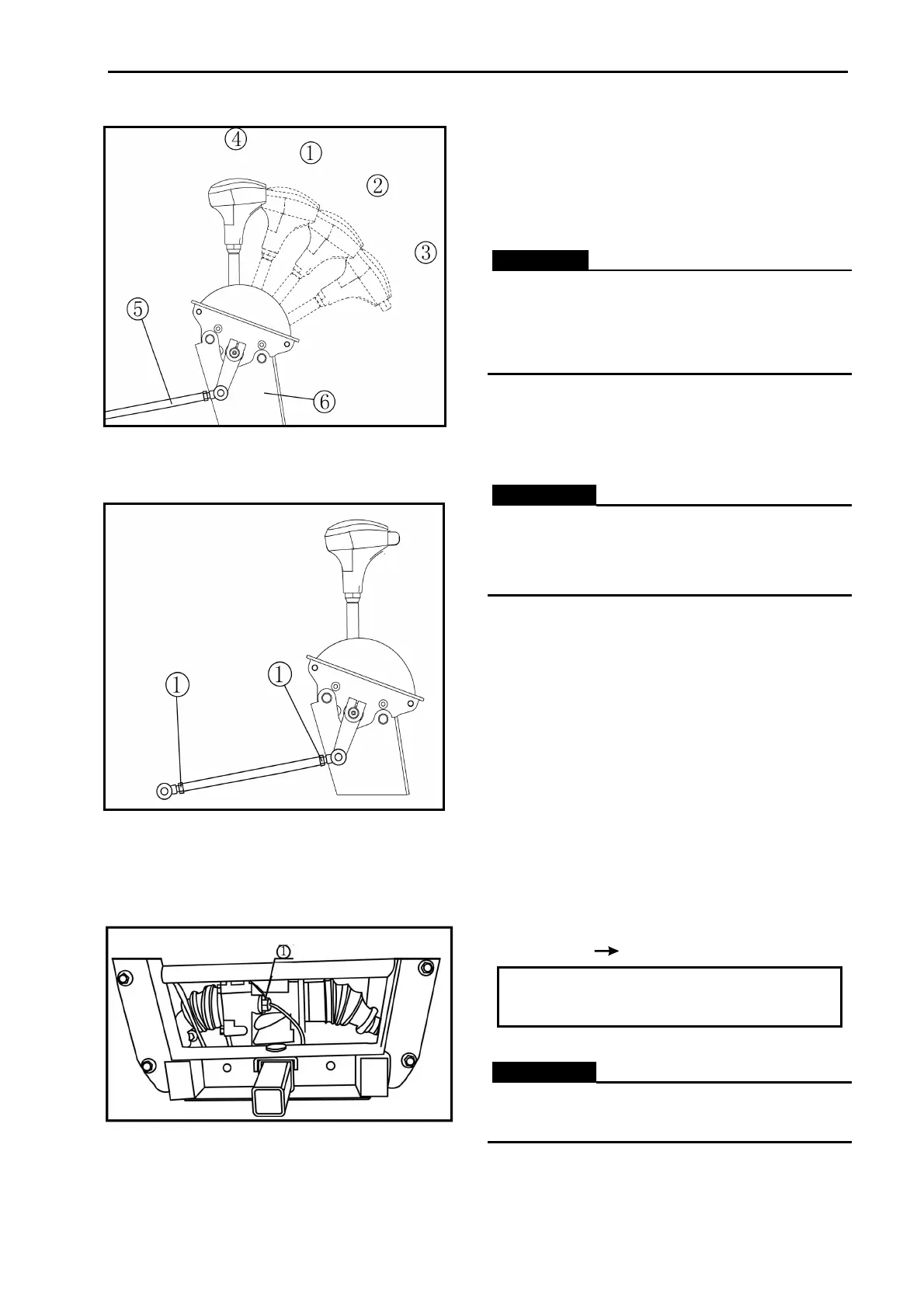

① Neutral
② High
③ Low
④ Reverse
⑤ Select lever shift rod
⑥ Shift control cable
WARNING
:
Before shifting, you must stop the vehicle an
take your foot off the accelerator pedal.
Otherwise, the transmission may be
damaged
1. Adjust:
·Select lever shift rod
a. Make sure the select lever is in NEUTRAL.
b. Loosen both locknuts .①
WARNING
:
The select lever shift rod locknut (select leve
side) has left-handed threads. To loosen the
locknut, turn it clockwise.
c. Tighten the locknuts . ①
CHECKING THE FINAL GEAR OIL LEVEL
1. Place the vehicle on a level surface.
2. Remove:
·oil filler plug ①
3. Check:
·oil level
Oil level should be up to the brim of the hole.
Oil level low
Add oil to the proper level.
Recommended oil
SAE 80 API “GL-4” Hypoid gear oil
WARNING
:
Take care not allow foreign material to ente
the final gear case.
