ENGINE

- 161 -

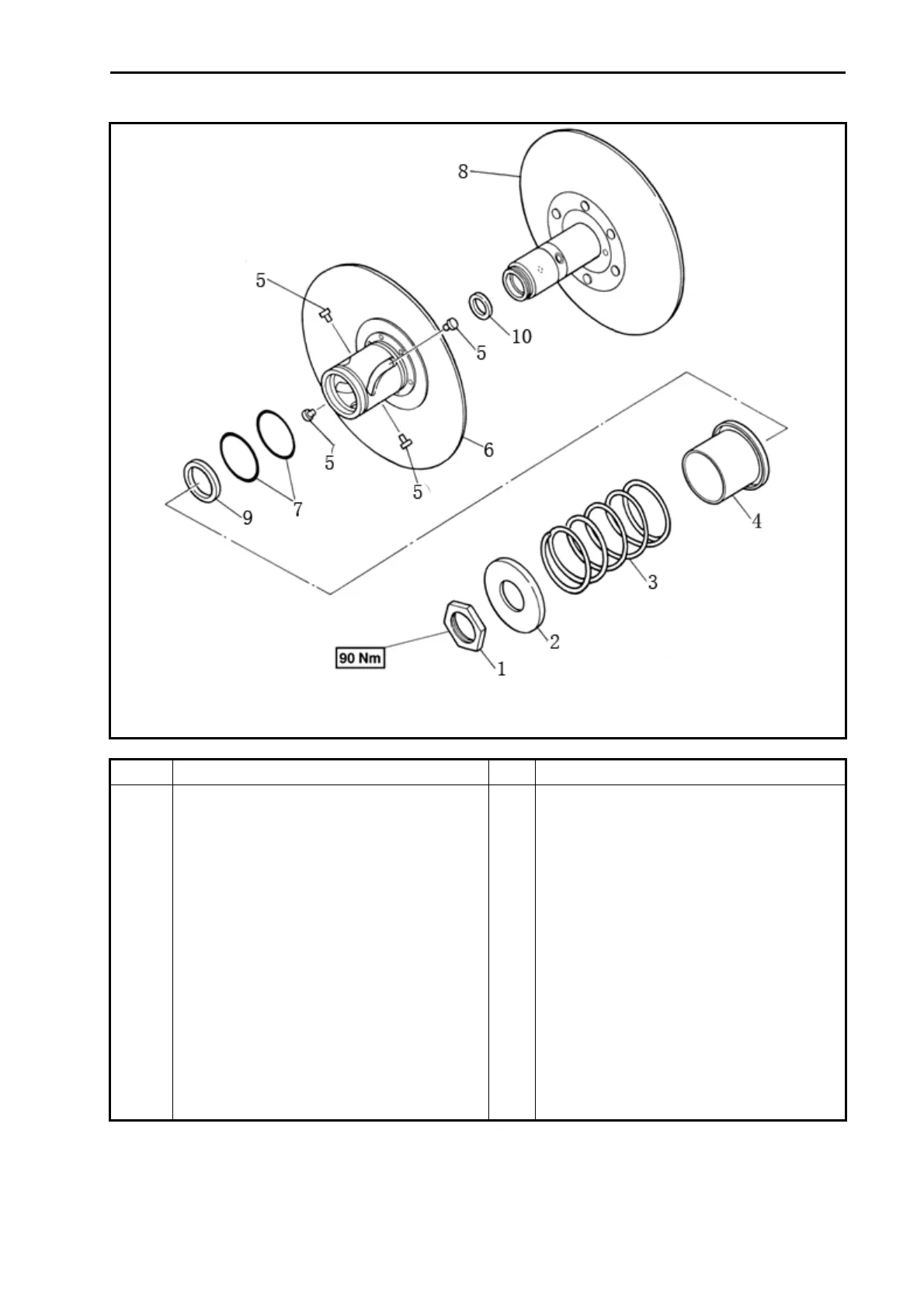

SECONDARY SHEAVE

No. Part Name Qty Remarks

Disassembling the secondary Sheave

Remove the parts in the order listed.

1 Nut 1

2 Spring seat 1

3 Compression spring 1

4 Spring seat 1

5 Guide pin 4

6 Secondary sliding sheave 1

7 O-ring 2

8 Secondary fixed sheave 1

9 Oil seal 1

10 Oil seal 1

For assembly, reverse the disassembly

procedure.
