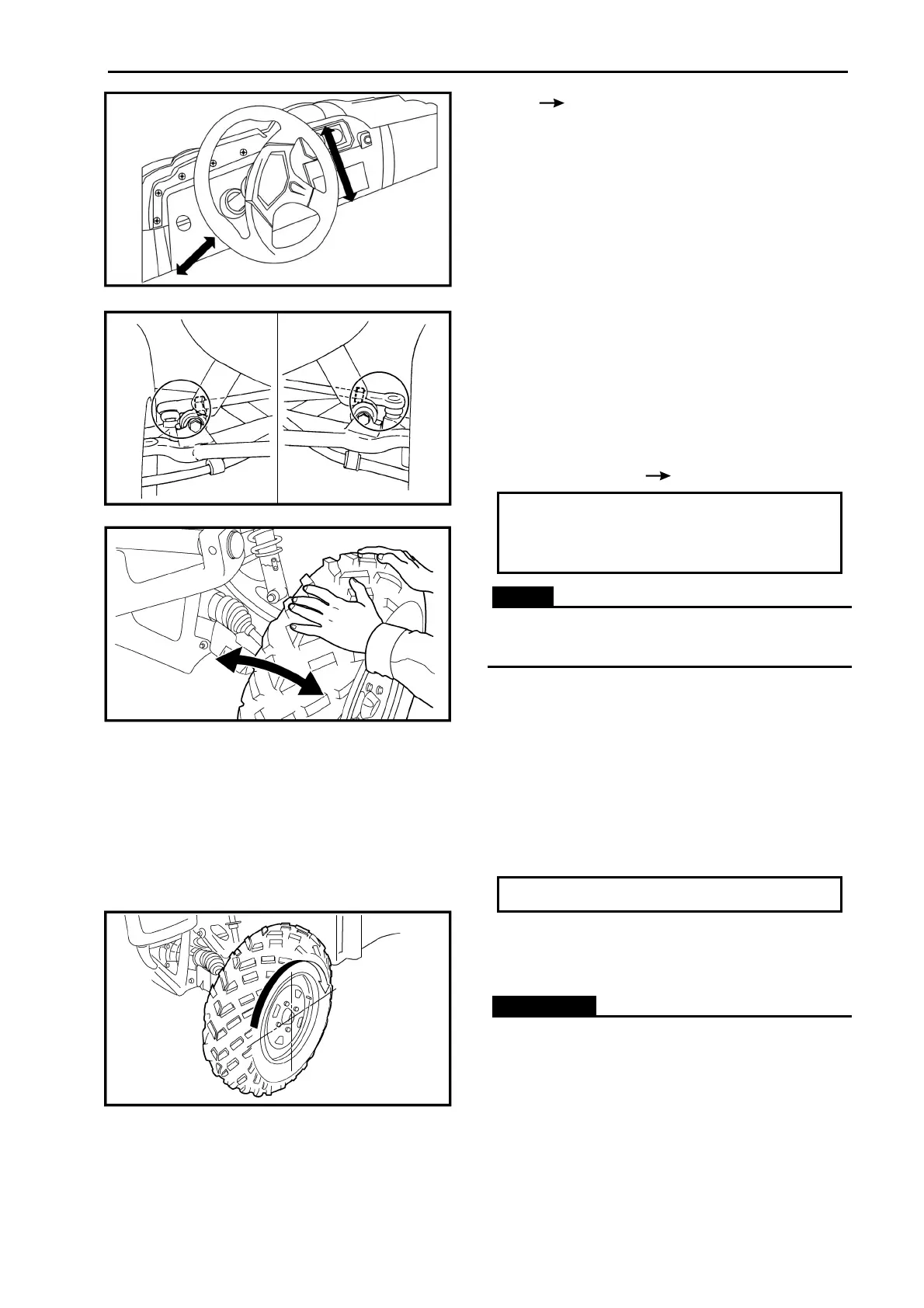

MAINTENANCE AND ADJUSTMENT OF THE UTV
- 113-
play
Replace the front arms (upper and
lower) and/or wheel bearings.
ADJUSTING THE TOE-IN
1. Place the vehicle on a level surface.
2. Measure:
• toe-in
Out of specification
Adjust.
Toe-in
0 ~ 10 mm (0.00 ~ 0.39 in)
(with tires touching the ground)
NOTE:
Before measuring the toe-in, make sure that
the tire pressure is correct.
a. Mark both front tire tread centers.
b. Face the steering wheel straight ahead.
c. Measure distance □
A
between the marks.
d. Rotate the front tires 180° until the marks are
exactly opposite one another.
e. Measure distance □
B
between the marks.
f. Calculate the toe-in using the formula given
below.
Toe-in=□
B
-□
A
g. If the toe-in is incorrect, adjust it.。
3. Adjust:
• toe-in
WARNING
:
• Be sure that both tie-rods are turned the
same amount. If not, the vehicle will drift righ
or left even though the steering wheel is
positioned straight. This may lead to
mishandling and an accident.
