CHASSIS

- 253-

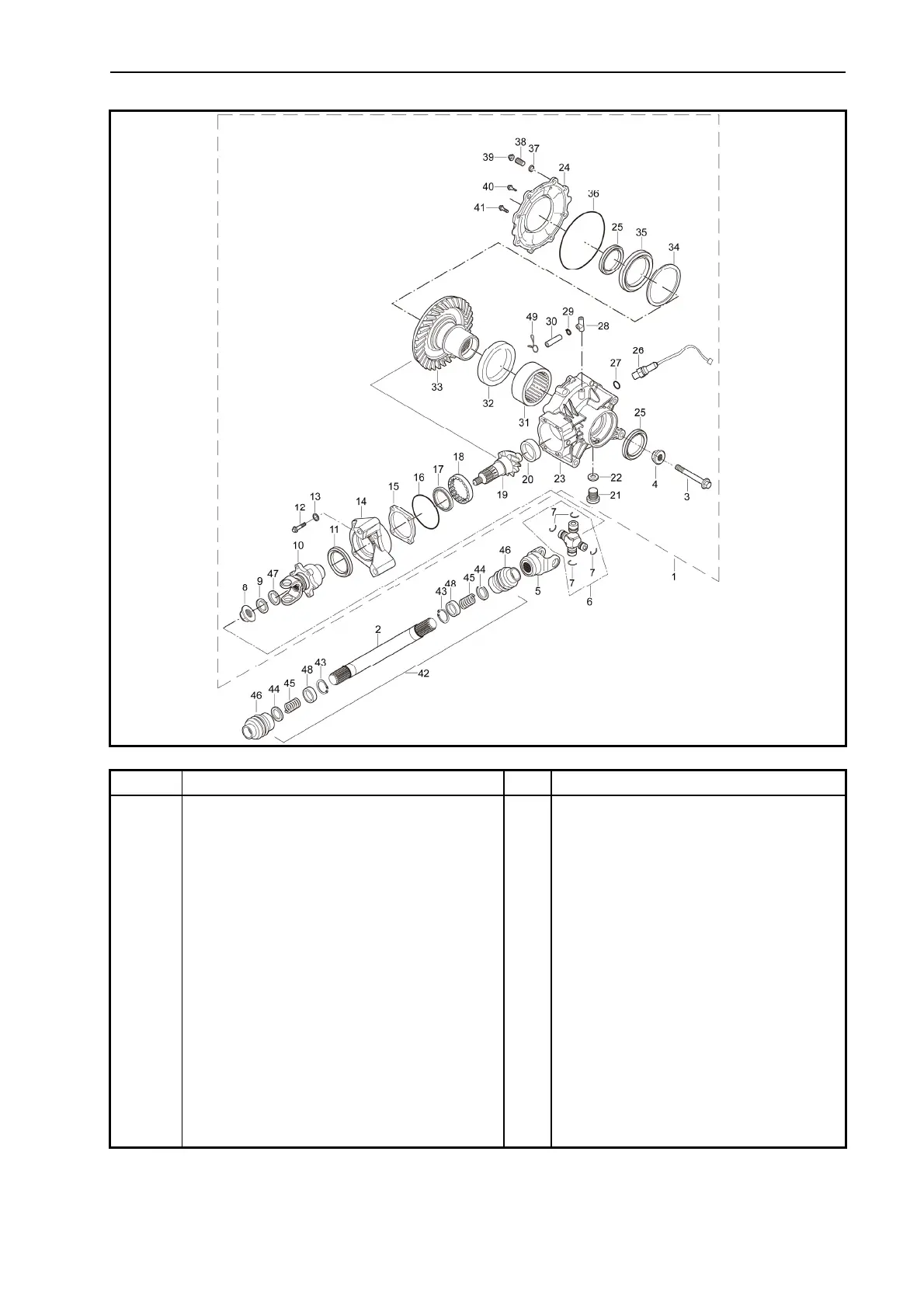

Rear Bridge

No. Part Name Qty Remarks

Removing the rear bridge

1 Rear reducer assy 1

2 Rear Transmission Shaft K 1

3 Hexagon Flange Bolt M10×1.25×120 2

4 Hexagon Flange Self-Lock Nuts M10x1.25 2

5 Connection Fork F 2

6 Universal Joint 1

7 Circlip D0=22 4

Hexagon Flange Self-Lock Nuts

M12×1.25

9 Washer,Drive Gears 1

10 Connection Fork G 1

11 Oil Seal Φ61×Φ35×9, Input Shaft 1

12 Hexagon Flange Bolt M8×35 4
