ELECTRICAL COMPONENTS
- 308 -

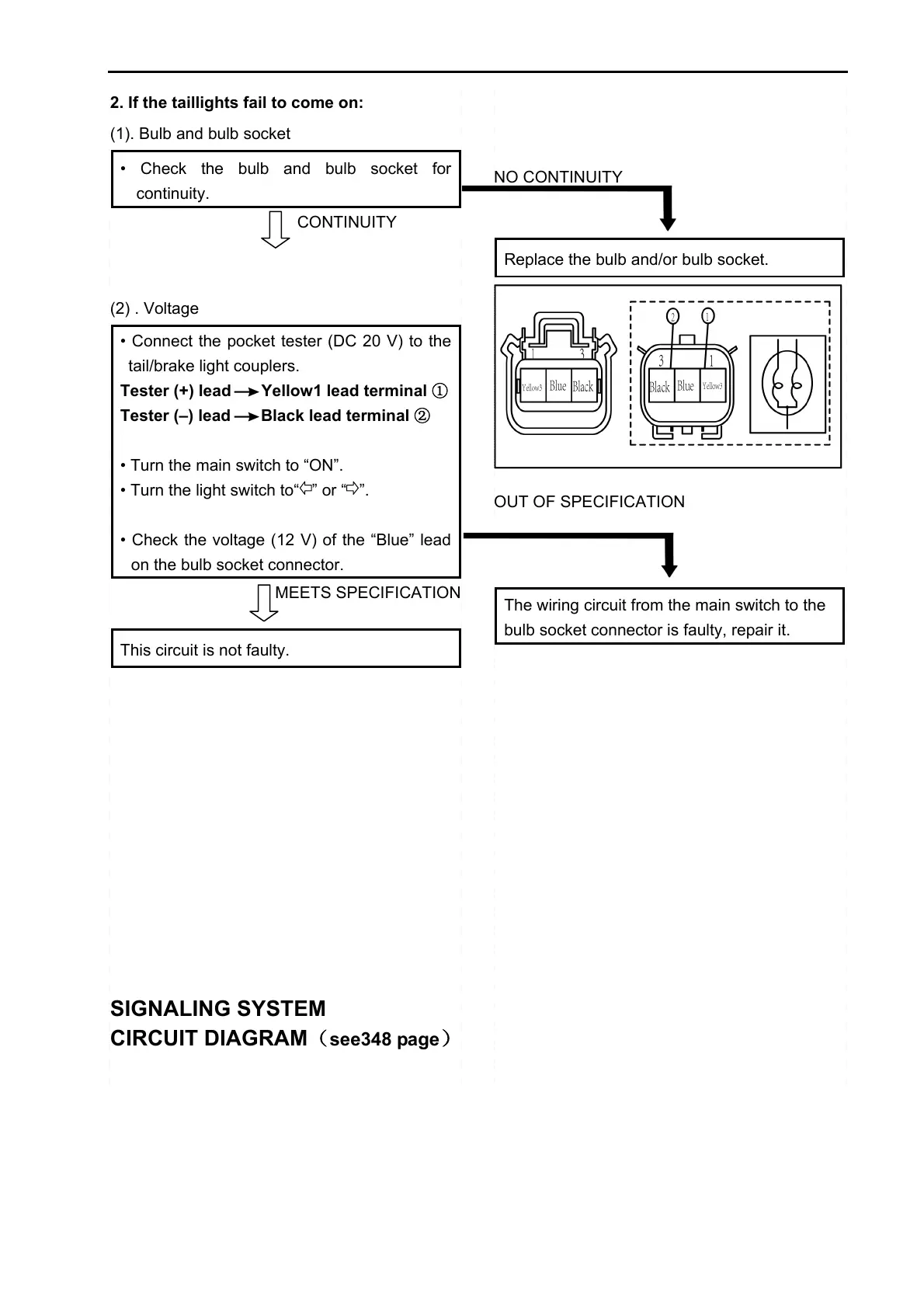

2. If the taillights fail to come on:
(1). Bulb and bulb socket
• Check the bulb and bulb socket for
continuity.
CONTINUITY
(2) . Voltage
• Connect the pocket tester (DC 20 V) to the
tail/brake light couplers.
Tester (+) lead
Yellow1 lead terminal ①
Tester (–) lead
Black lead terminal ②
• Turn the main switch to “ON”.
• Turn the light switch to“ ” or “ ”.
• Check the voltage (12 V) of the “Blue” lead
on the bulb socket connector.
MEETS SPECIFICATION
This circuit is not faulty.
SIGNALING SYSTEM
CIRCUIT DIAGRAM
（see348 page）
NO CONTINUITY
Replace the bulb and/or bulb socket.
OUT OF SPECIFICATION
The wiring circuit from the main switch to the
bulb socket connector is faulty, repair it.
To Next Page
