ENGINE

- 151 -

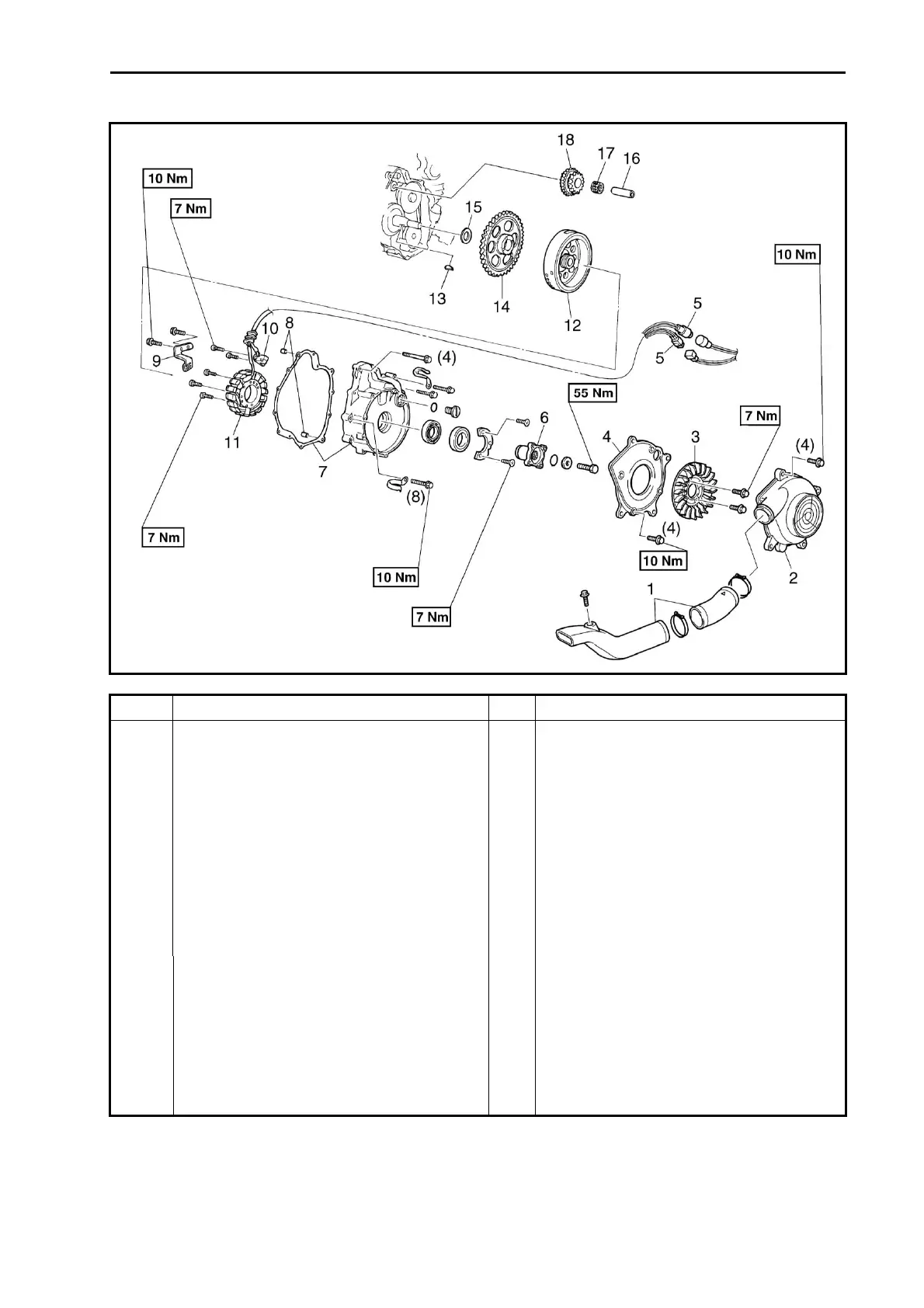

ENGINE COOLING FAN AND A.C. MAGNETO

No. Part Name Qty Remarks

Removing the engine cooling fan and

A.C. magneto

Remove the parts in the order listed.

Drive belt cover

Engine oil

Coolant

Water pump assembly

1 Engine cooling fan air duct assembly 1

2 Air shroud 1 1

3 Engine cooling fan 1

4 Air shroud 2 1

5 A.C. magneto coupler 2

6 Engine cooling fan pulley base 1

7 A.C. magneto cover/gasket 1/1

Dowel pin

9 Stator lead holder 1
