ENGINE

- 159 -

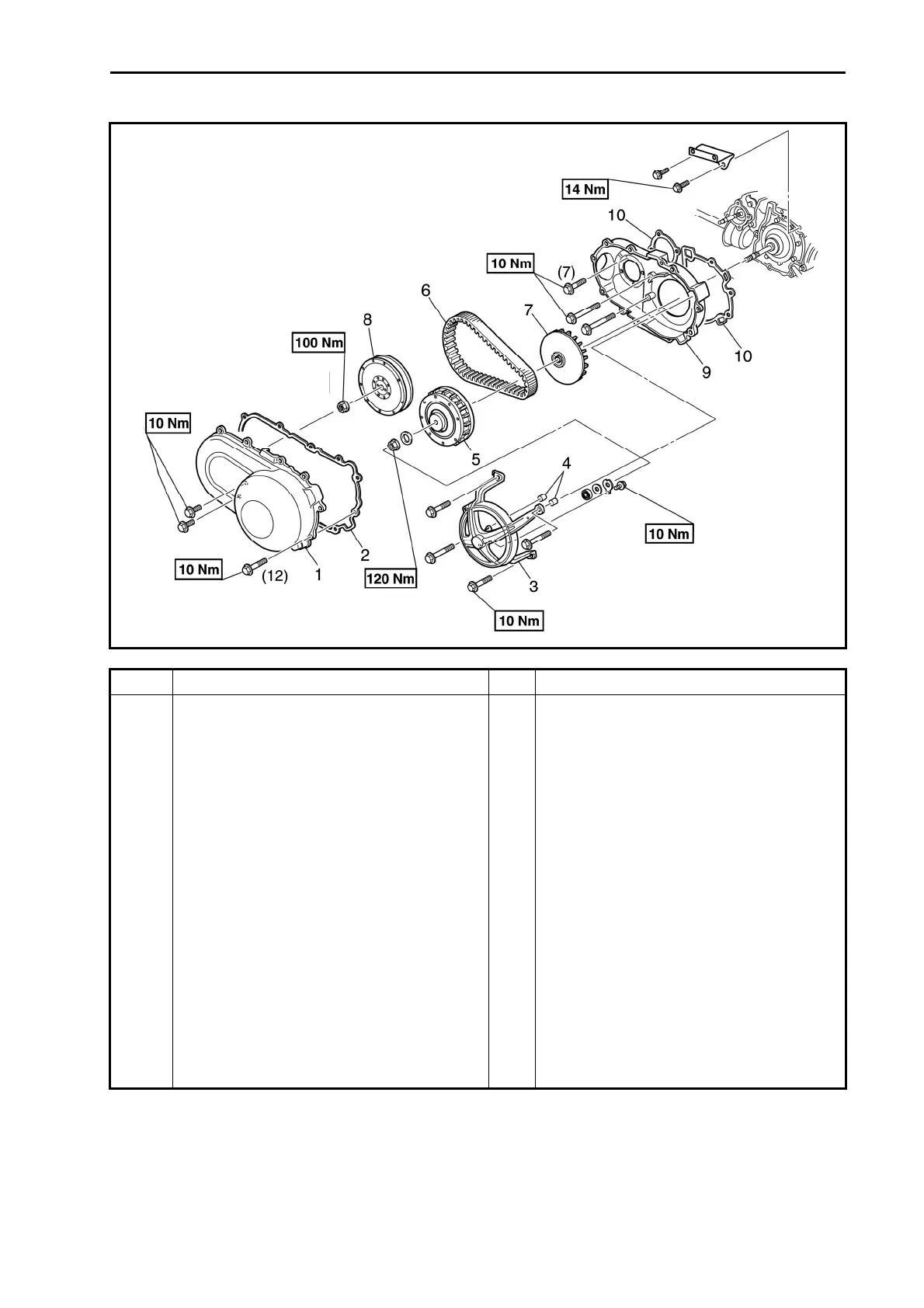

PRIMARY AND SECONDARY SHEAVES

No. Part Name Qty Remarks

Removing the primary and secondary

sheaves

Remove the parts in the order listed.

Engine assembly

1 Drive belt cover 1

2 Rubber gasket 1

3 Bearing housing 1

4 Dowel pin 2

5 Primary sheave assembly 1

6 V-belt 1

7 Primary fixed sheave 1

8 Secondary sheave assembly 1

9 Drive belt case 1

10 Rubber gasket 2

For installation, reverse the removal

procedure.
